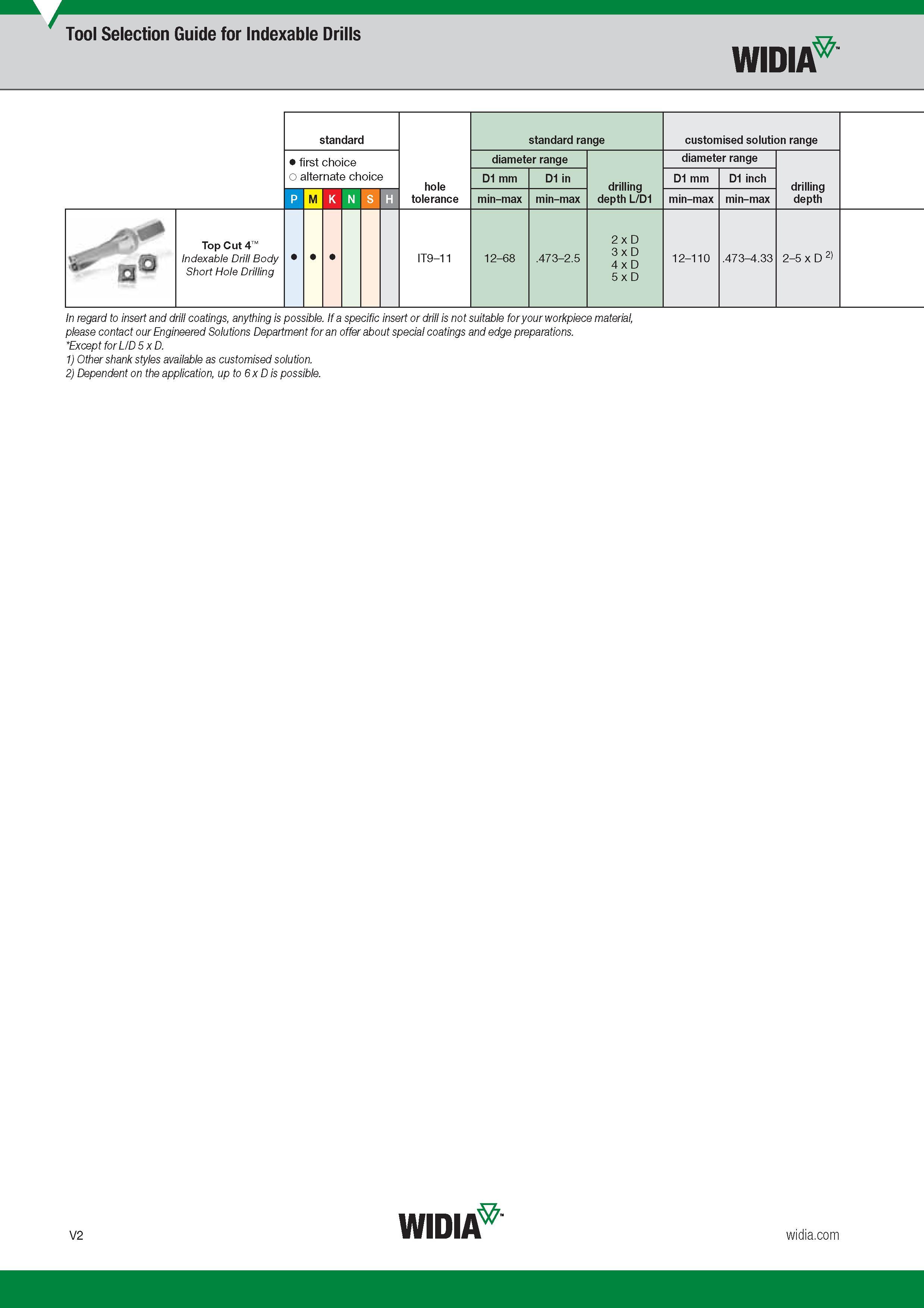

Tool Selection Guide for Indexable Drills Widia Top Cut 4 Indexable Drill Body Short Hole Drilling standard hole tolerance standard range customised solution range Лучший и альтернативный выбор First and alternate choice diameter range drilling depth L/D1 diameter range drilling depth D1 mm D1 in D1 mm D1 inch P M K N S H min-max min-max min-max min-max IT9-11 12-68 .473-2.5 2 x D 3 x D 4 x D 5 x D 12-110 .473-4.33 2-5 x D 2) In regard to insert and drill coatings, anything is possible. If a specific insert or drill is not suitable for your workpiece material, please contact our Engineered Solutions Department for an offer about special coatings and edge preparations. Except for L/D 5 x D. 1) Other shank styles available as customised solution. 2) Dependent on the application, up to 6 x D is possible.
