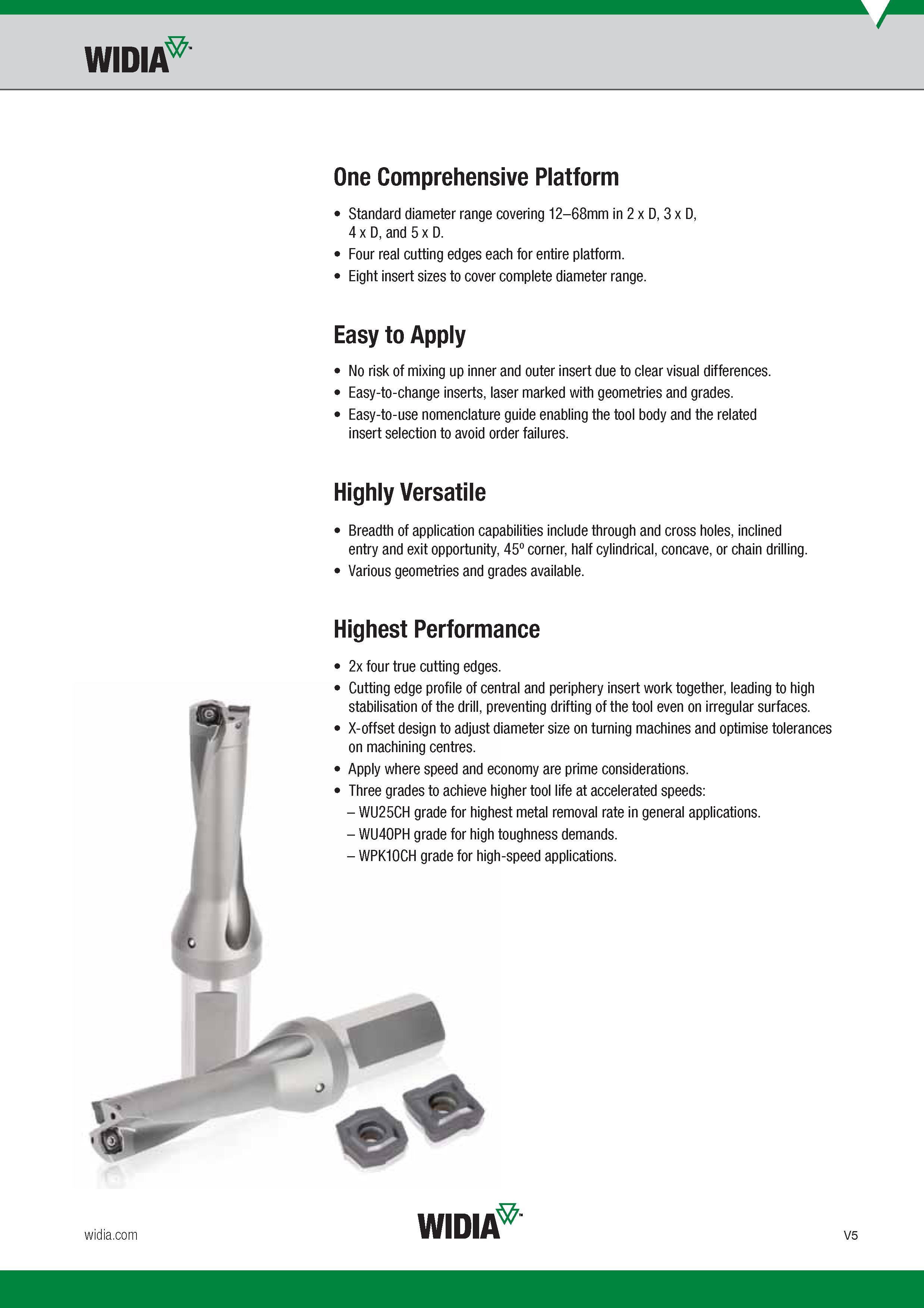

Widia One Comprehensive Platform Standard diameter range covering 12-68mm in 2 x D, 3 x D, 4 x D, and 5 x D. Four real cutting edges each for entire platform. Eight insert sizes to cover complete diameter range. Easy to Apply No risk of mixing up inner and outer insert due to clear visual differences. Easy-to-change inserts, laser marked with geometries and grade s. Easy-to-use nomenclature guide enabling the tool body and the related insert selection to avoid order failures. Highly Versatile Breadth of application capabilities include through and cross holes, inclined entry and exit opportunity, 45° corner, half cylindrical, concave, or chain drilling. Various geometries and grade s available. Highest Performance f 2x four true cutting edges. Cutting edge profile of central and periphery insert work together, leading to high stabilisation of the drill, preventing drifting of the tool even on irregular surfaces. X-offset design to adjust diameter size on turning machines and optimise tolerances on machining centres. Apply where speed and economy are prime considerations. Three grade s to achieve higher tool life at accelerated speeds - WU25CH grade for highest metal removal rate in general applications. - WU40PH grade for high toughness demands. - WPK10CH grade for high-speed applications. V Widia V5
