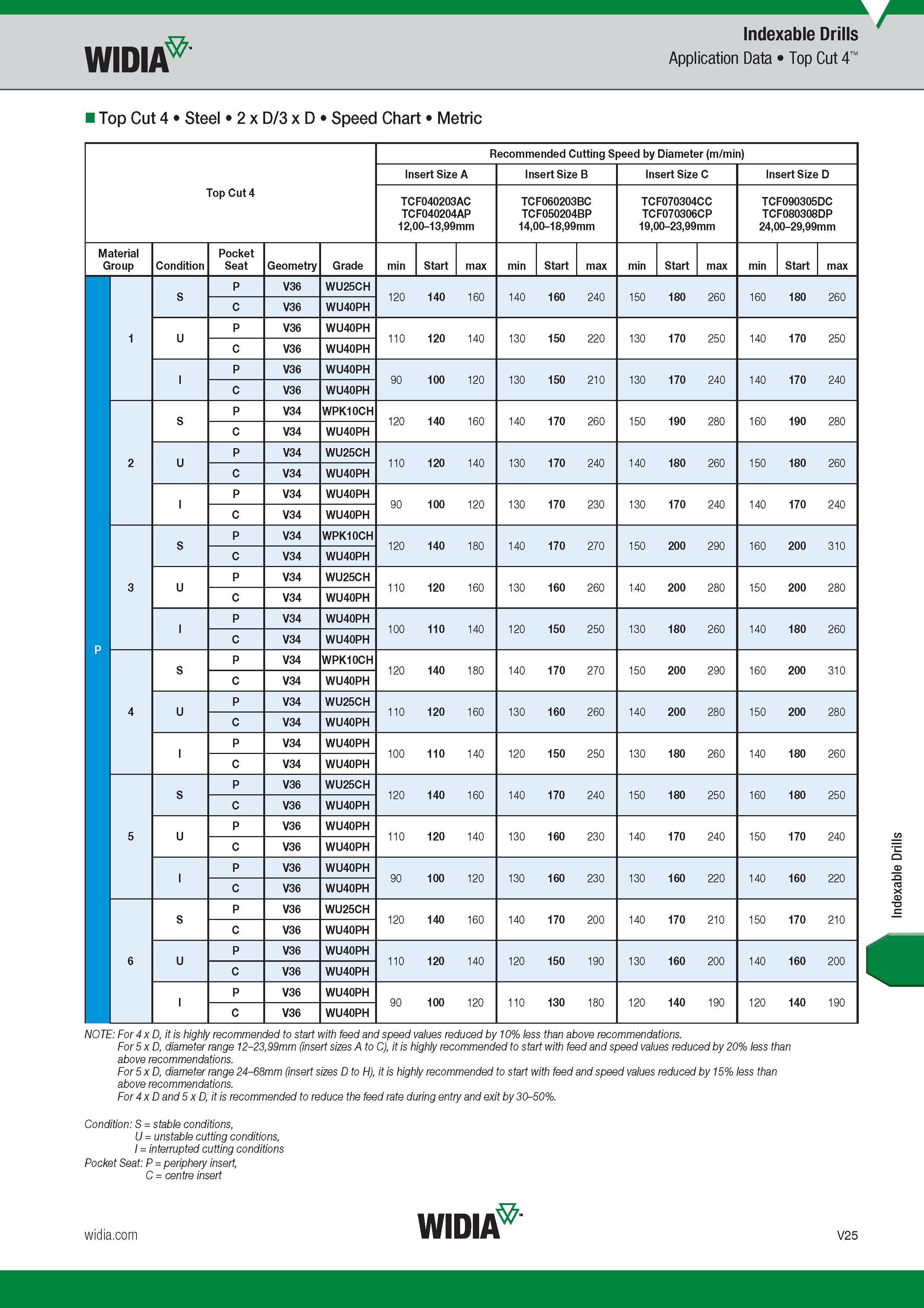

Widia Top Cut 4 Steel 2 x D/3 x D Speed Chart Metric Indexable Drills Application Data Top Cut 4 Recommended Cutting Speed by Diameter (m/min) Insert Size A Insert Size B Insert Size C Insert Size D Top Cut 4 TCF040203AC TCF040204AP 12,00-13,99mm TCF060203BC TCF050204BP 14,00-18,99mm TCF070304CC TCF070306CP 19,00-23,99mm TCF090305DC TCF080308DP 24,00-29,99mm Группа обрабатываемого материала Material Group Condition Pocket Seat Обозначение режущей геометрии Марка сплава Geometry Grade min Start max min Start max min Start max min Start max S P V36 WU25CH 120 140 160 140 160 240 150 180 260 160 180 260 C V36 WU40PH 1 U P V36 WU40PH 110 120 140 130 150 220 130 170 250 140 170 250 C V36 WU40PH P V36 WU40PH 90 100 120 130 150 210 130 170 240 140 170 240 C V36 WU40PH S P V34 WPK10CH 120 140 160 140 170 260 150 190 280 160 190 280 C V34 WU40PH 2 U P V34 WU25CH 110 120 140 130 170 240 140 180 260 150 180 260 C V34 WU40PH P V34 WU40PH 90 100 120 130 170 230 130 170 240 140 170 240 C V34 WU40PH S P V34 WPK10CH 120 140 180 140 170 270 150 200 290 160 200 310 C V34 WU40PH 3 U P V34 WU25CH 110 120 160 130 160 260 140 200 280 150 200 280 C V34 WU40PH P V34 WU40PH 100 110 140 120 150 250 130 180 260 140 180 260 C V34 WU40PH S P V34 WPK10CH 120 140 180 140 170 270 150 200 290 160 200 310 C V34 WU40PH 4 U P V34 WU25CH 110 120 160 130 160 260 140 200 280 150 200 280 C V34 WU40PH P V34 WU40PH 100 110 140 120 150 250 130 180 260 140 180 260 C V34 WU40PH S P V36 WU25CH 120 140 160 140 170 240 150 180 250 160 180 250 C V36 WU40PH 5 U P V36 WU40PH 110 120 140 130 160 230 140 170 240 150 170 240 C V36 WU40PH P V36 WU40PH 90 100 120 130 160 230 130 160 220 140 160 220 C V36 WU40PH S P V36 WU25CH 120 140 160 140 170 200 140 170 210 150 170 210 C V36 WU40PH 6 U P V36 WU40PH 110 120 140 120 150 190 130 160 200 140 160 200 C V36 WU40PH P V36 WU40PH 90 100 120 110 130 180 120 140 190 120 140 190 C V36 WU40PH NOTE For 4 x D, it is highly recommended to start with feed and speed values reduced by 10% less than above recommendations. For 5 x D, diameter range 12-23,99mm (insert sizes A to C), it is highly recommended to start with feed and speed values reduced by 20% less than above recommendations. For 5 x D, diameter range 24-68mm (insert sizes D to H), it is highly recommended to start with feed and speed values reduced by 15% less than above recommendations. For 4 x D and 5 x D, it is recommended to reduce the feed rate during entry and exit by 30-50%. Condition S stable conditions, U unstable cutting conditions, I interrupted cutting conditions Pocket Seat P periphery insert, C centre insert Widia V25 Indexable Drills
