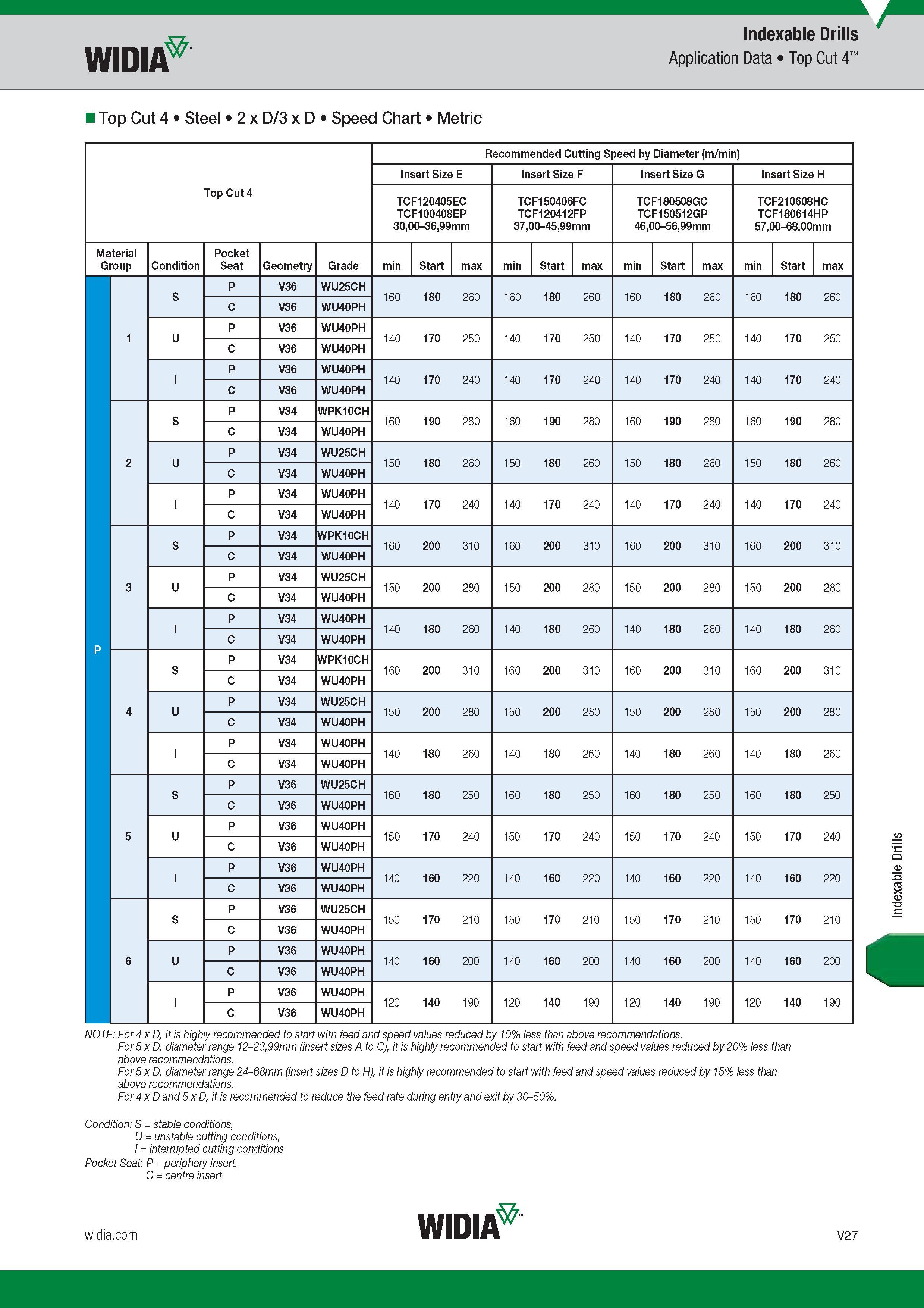

Widia Top Cut 4 Steel 2 x D/3 x D Speed Chart Metric Indexable Drills Application Data Top Cut 4 Recommended Cutting Speed by Diameter (m/min) Insert Size E Insert Size F Insert Size G Insert Size H Top Cut 4 TCF120405EC TCF100408EP 30,00-36,99mm TCF150406FC TCF120412FP 37,00-45,99mm TCF180508GC TCF150512GP 46,00-56,99mm TCF210608HC TCF180614HP 57,00-68,00mm Группа обрабатываемого материала Material Group Condition Pocket Seat Обозначение режущей геометрии Марка сплава Geometry Grade min Start max min Start max min Start max min Start max S P V36 WU25CH 160 180 260 160 180 260 160 180 260 160 180 260 C V36 WU40PH 1 U P V36 WU40PH 140 170 250 140 170 250 140 170 250 140 170 250 C V36 WU40PH P V36 WU40PH 140 170 240 140 170 240 140 170 240 140 170 240 I C V36 WU40PH S P V34 WPK10CH 160 190 280 160 190 280 160 190 280 160 190 280 C V34 WU40PH 2 U P V34 WU25CH 150 180 260 150 180 260 150 180 260 150 180 260 C V34 WU40PH P V34 WU40PH 140 170 240 140 170 240 140 170 240 140 170 240 I C V34 WU40PH S P V34 WPK10CH 160 200 310 160 200 310 160 200 310 160 200 310 C V34 WU40PH 3 U P V34 WU25CH 150 200 280 150 200 280 150 200 280 150 200 280 C V34 WU40PH P V34 WU40PH 140 180 260 140 180 260 140 180 260 140 180 260 I C V34 WU40PH S P V34 WPK10CH 160 200 310 160 200 310 160 200 310 160 200 310 C V34 WU40PH 4 U P V34 WU25CH 150 200 280 150 200 280 150 200 280 150 200 280 C V34 WU40PH P V34 WU40PH 140 180 260 140 180 260 140 180 260 140 180 260 I C V34 WU40PH S P V36 WU25CH 160 180 250 160 180 250 160 180 250 160 180 250 C V36 WU40PH 5 U P V36 WU40PH 150 170 240 150 170 240 150 170 240 150 170 240 C V36 WU40PH P V36 WU40PH 140 160 220 140 160 220 140 160 220 140 160 220 I C V36 WU40PH S P V36 WU25CH 150 170 210 150 170 210 150 170 210 150 170 210 C V36 WU40PH 6 U P V36 WU40PH 140 160 200 140 160 200 140 160 200 140 160 200 C V36 WU40PH I P V36 WU40PH 120 140 190 120 140 190 120 140 190 120 140 190 C V36 WU40PH NOTE For 4 x D, it is highly recommended to start with feed and speed values reduced by 10% less than above recommendations. For 5 x D, diameter range 12-23,99mm (insert sizes A to C), it is highly recommended to start with feed and speed values reduced by 20% less than above recommendations. For 5 x D, diameter range 24-68mm (insert sizes D to H), it is highly recommended to start with feed and speed values reduced by 15% less than above recommendations. For 4 x D and 5 x D, it is recommended to reduce the feed rate during entry and exit by 30-50%. Condition S stable conditions, U unstable cutting conditions, I interrupted cutting conditions Pocket Seat P periphery insert, C centre insert Widia V27 Indexable Drills
