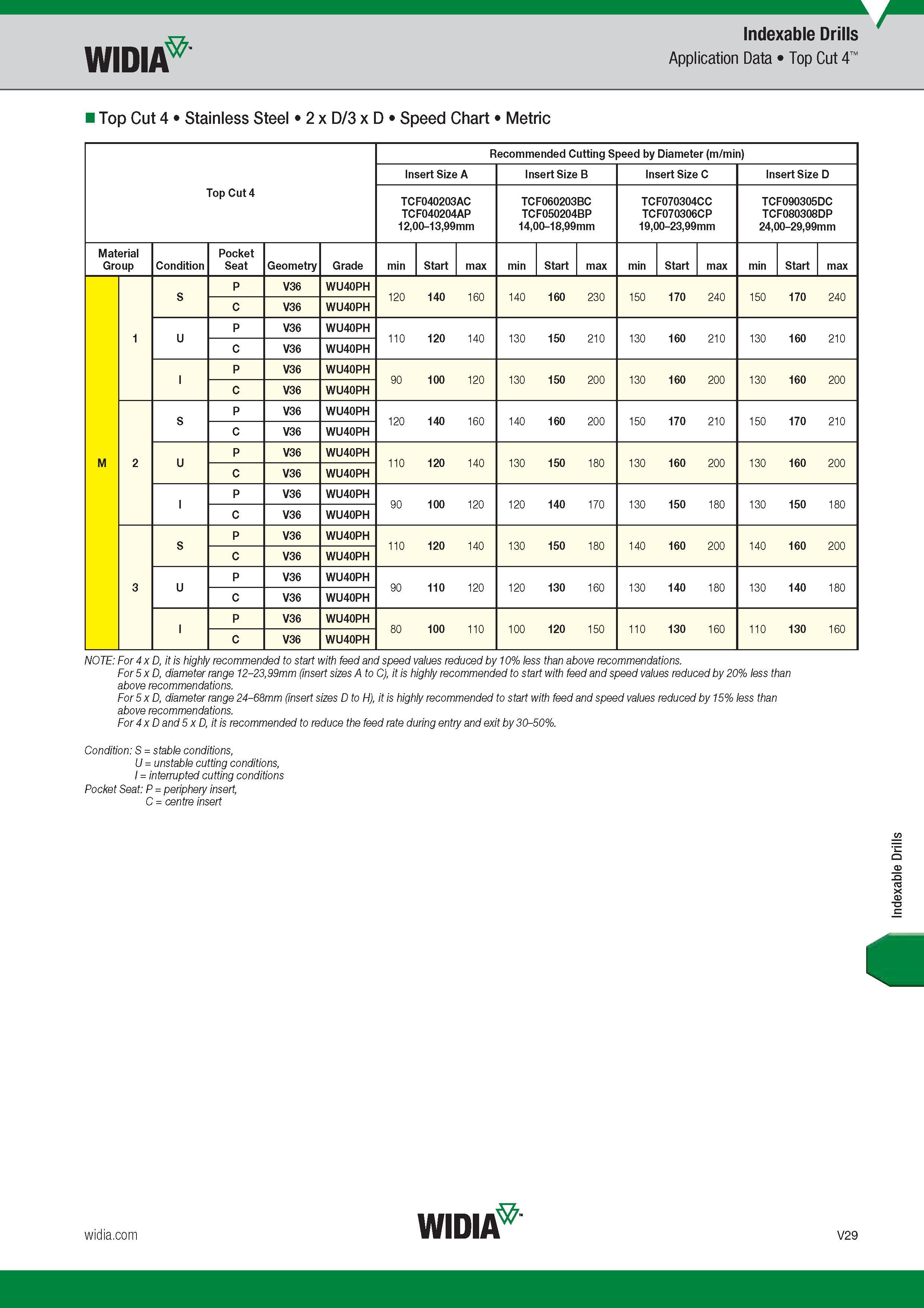

Widia Top Cut 4 Stainless Steel 2 x D/3 x D Speed Chart Metric Indexable Drills Application Data Top Cut 4 Recommended Cutting Speed by Diameter (m/min) Insert Size A Insert Size B Insert Size C Insert Size D Top Cut 4 TCF040203AC TCF040204AP 12,00-13,99mm TCF060203BC TCF050204BP 14,00-18,99mm TCF070304CC TCF070306CP 19,00-23,99mm TCF090305DC TCF080308DP 24,00-29,99mm Группа обрабатываемого материала Material Group Condition Pocket Seat Обозначение режущей геометрии Марка сплава Geometry Grade min Start max min Start max min Start max min Start max S P V36 WU40PH 120 140 160 140 160 230 150 170 240 150 170 240 C V36 WU40PH 1 U P V36 WU40PH 110 120 140 130 150 210 130 160 210 130 160 210 C V36 WU40PH P V36 WU40PH 90 100 120 130 150 200 130 160 200 130 160 200 I C V36 WU40PH S P V36 WU40PH 120 140 160 140 160 200 150 170 210 150 170 210 C V36 WU40PH M 2 U P V36 WU40PH 110 120 140 130 150 180 130 160 200 130 160 200 C V36 WU40PH P V36 WU40PH 90 100 120 120 140 170 130 150 180 130 150 180 I C V36 WU40PH S P V36 WU40PH 110 120 140 130 150 180 140 160 200 140 160 200 C V36 WU40PH 3 U P V36 WU40PH 90 110 120 120 130 160 130 140 180 130 140 180 C V36 WU40PH P V36 WU40PH 80 100 110 100 120 150 110 130 160 110 130 160 I C V36 WU40PH NOTE For 4 x D, it is highly recommended to start with feed and speed values reduced by 10% less than above recommendations. For 5 x D, diameter range 12-23,99mm (insert sizes A to C), it is highly recommended to start with feed and speed values reduced by 20% less than above recommendations. For 5 x D, diameter range 24-68mm (insert sizes D to H), it is highly recommended to start with feed and speed values reduced by 15% less than above recommendations. For 4 x D and 5 x D, it is recommended to reduce the feed rate during entry and exit by 30-50%. Condition S stable conditions, U unstable cutting conditions, I interrupted cutting conditions Pocket Seat P periphery insert, C centre insert Indexable Drills
