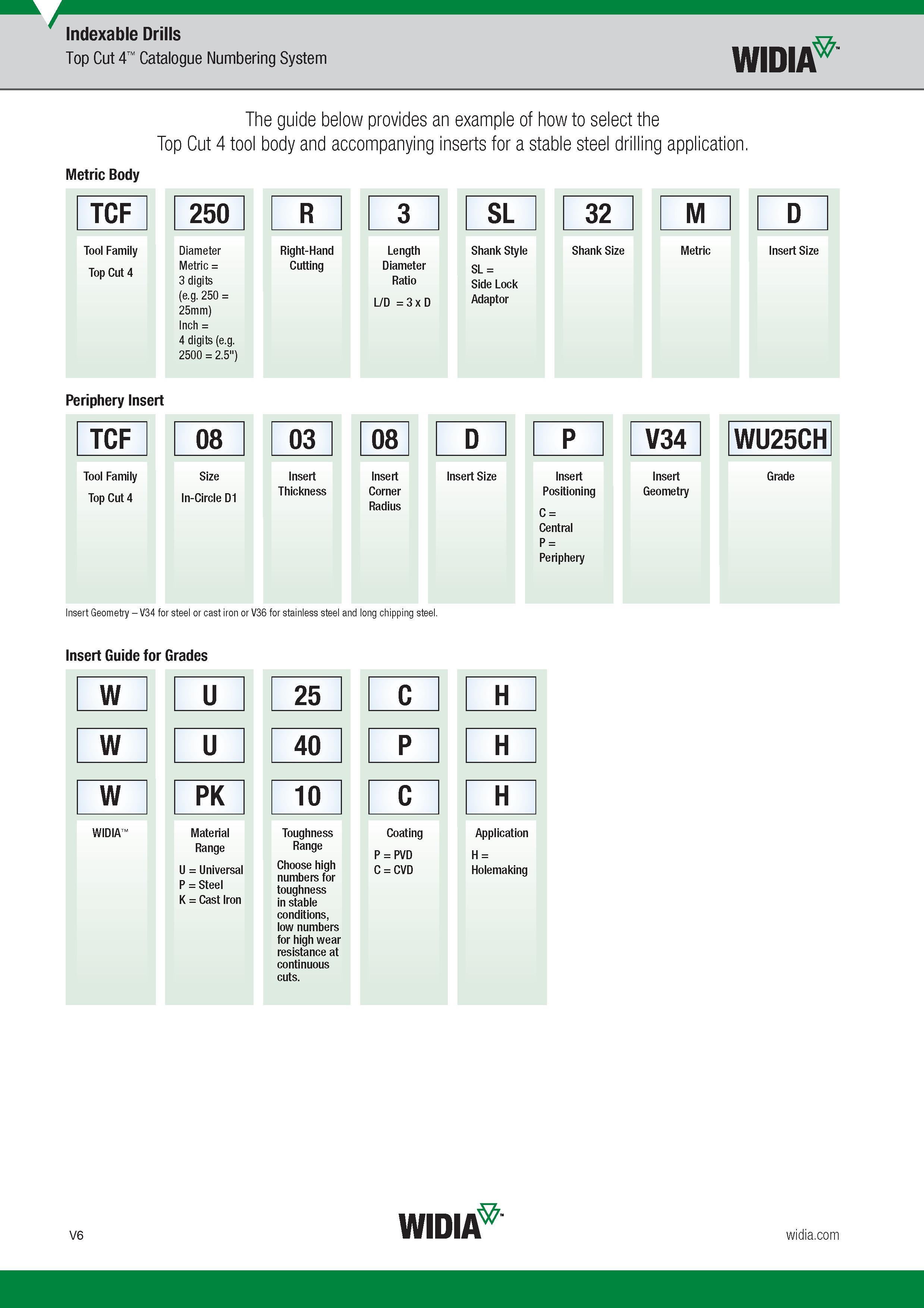

Indexable Drills Top Cut 4 Catalogue Numbering System Widia TCF The guide below provides an example of how to select the Top Cut 4 tool body and accompanying inserts for a stable steel drilling application. Metric Body 250 R 3 SL 32 M D Tool Family Top Cut 4 Diameter Metric 3 digits (e.g. 250 25mm) Inch 4 digits (e.g. 2500 2.5") Right-Hand Cutting Length Diameter Ratio L/D 3 x D Shank Style SL Side Lock Adaptor Shank Size Metric Insert Size Periphery Insert Tool Family Top Cut 4 Size In-Circle D1 Insert Thickness Insert Corner Radius Insert Size TCF 08 03 08 D P V34 WU25CH Insert Positioning C Central P Periphery Insert Обозначение режущей геометрии Марка сплава Geometry Grade Геометрия сменной режущей пластины Insert Geometry - V34 for steel or cast iron or V36 for stainless steel and long chipping steel. Insert Guide for Grades W U 25 C H W U 40 P H W Widia PK Material Range U Universal P Steel K Cast Iron 10 Toughness Range Choose high numbers for toughness in stable conditions, low numbers for high wear resistance at continuous cuts. C Coating P PVD C CVD H Application H Holemaking V6 Widia
