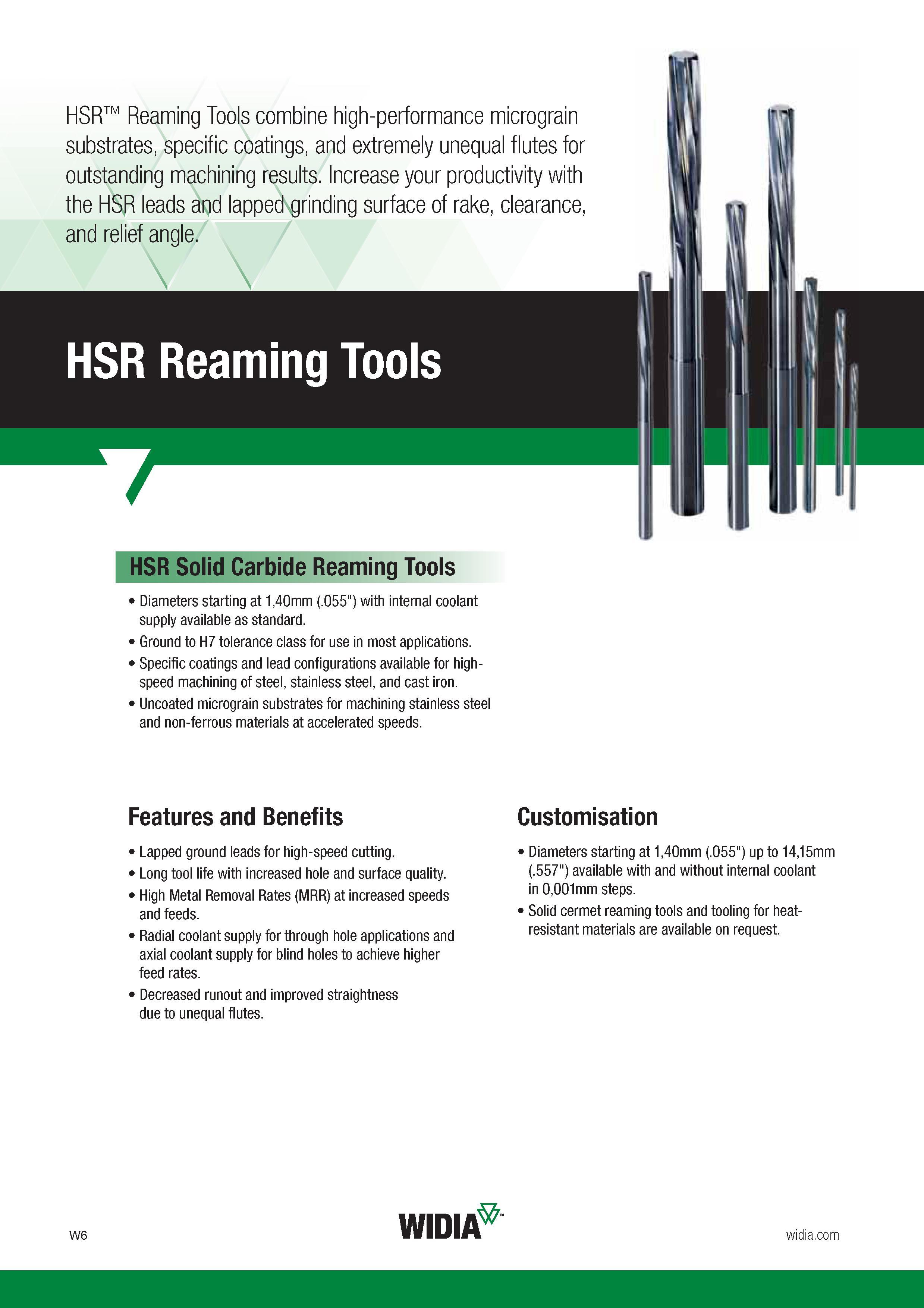

HSR Reaming Tools combine high-performance micrograin substrates, specific coatings, and extremely unequal flutes for outstanding machining results. Increase your productivity with the HSR leads and lapped grinding surface of rake, clearance, and relief angle. HSR Reaming Tools 7 HSR Solid Carbide Reaming Tools Diameters starting at 1,40mm (.055") with internal coolant supply available as standard. Ground to H7 tolerance class for use in most applications. Specific coatings and lead configurations available for highspeed machining of steel, stainless steel, and cast iron. Uncoated micrograin substrates for machining stainless steel and non-ferrous materials at accelerated speeds. Features and Benefits Lapped ground leads for high-speed cutting. Long tool life with increased hole and surface quality. High Metal Removal Rates (MRR) at increased speeds and feeds. Radial coolant supply for through hole applications and axial coolant supply for blind holes to achieve higher feed rates. Decreased runout and improved straightness due to unequal flutes. Customisation Diameters starting at 1,40mm (.055") up to 14,15mm (.557") available with and without internal coolant in 0,001mm steps. Solid cermet reaming tools and tooling for heat-resistant materials are available on request.
