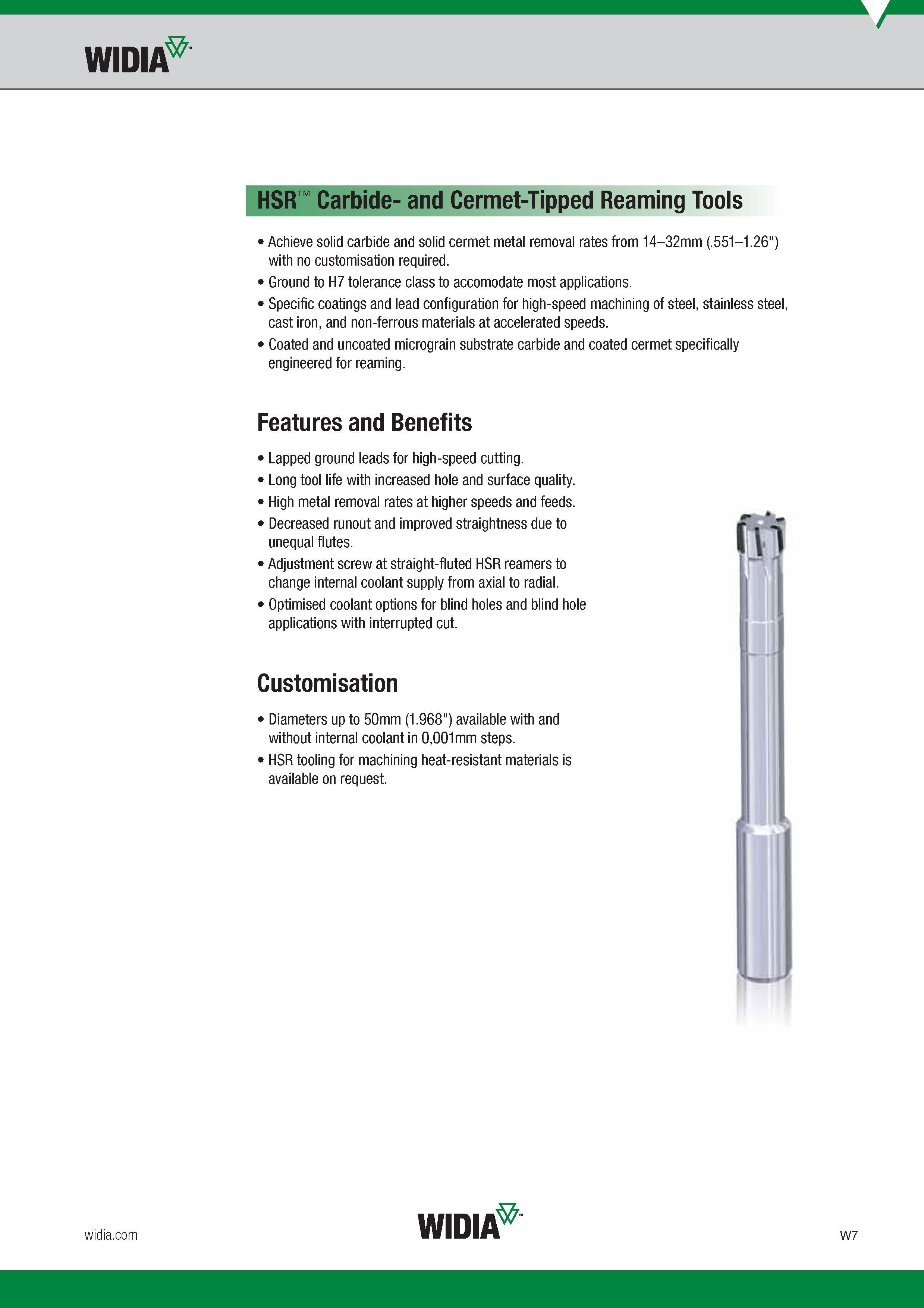

Widia HSR Carbide- and Cermet-Tipped Reaming Tools Achieve solid carbide and solid cermet metal removal rates from 14-32mm (.551-1.26") with no customisation required. Ground to H7 tolerance class to accomodate most applications. Specific coatings and lead configuration for high-speed machining of steel, stainless steel, cast iron, and non-ferrous materials at accelerated speeds. Coated and uncoated micrograin substrate carbide and coated cermet specifically engineered for reaming. Features and Benefits Lapped ground leads for high-speed cutting. Long tool life with increased hole and surface quality. High metal removal rates at higher speeds and feeds. Decreased runout and improved straightness due to unequal flutes. Adjustment screw at straight-fluted HSR reamers to change internal coolant supply from axial to radial. Optimised coolant options for blind holes and blind hole applications with interrupted cut. Customisation Diameters up to 50mm (1.968") available with and without internal coolant in 0,001mm steps. HSR tooling for machining heat-resistant materials is available on request.
