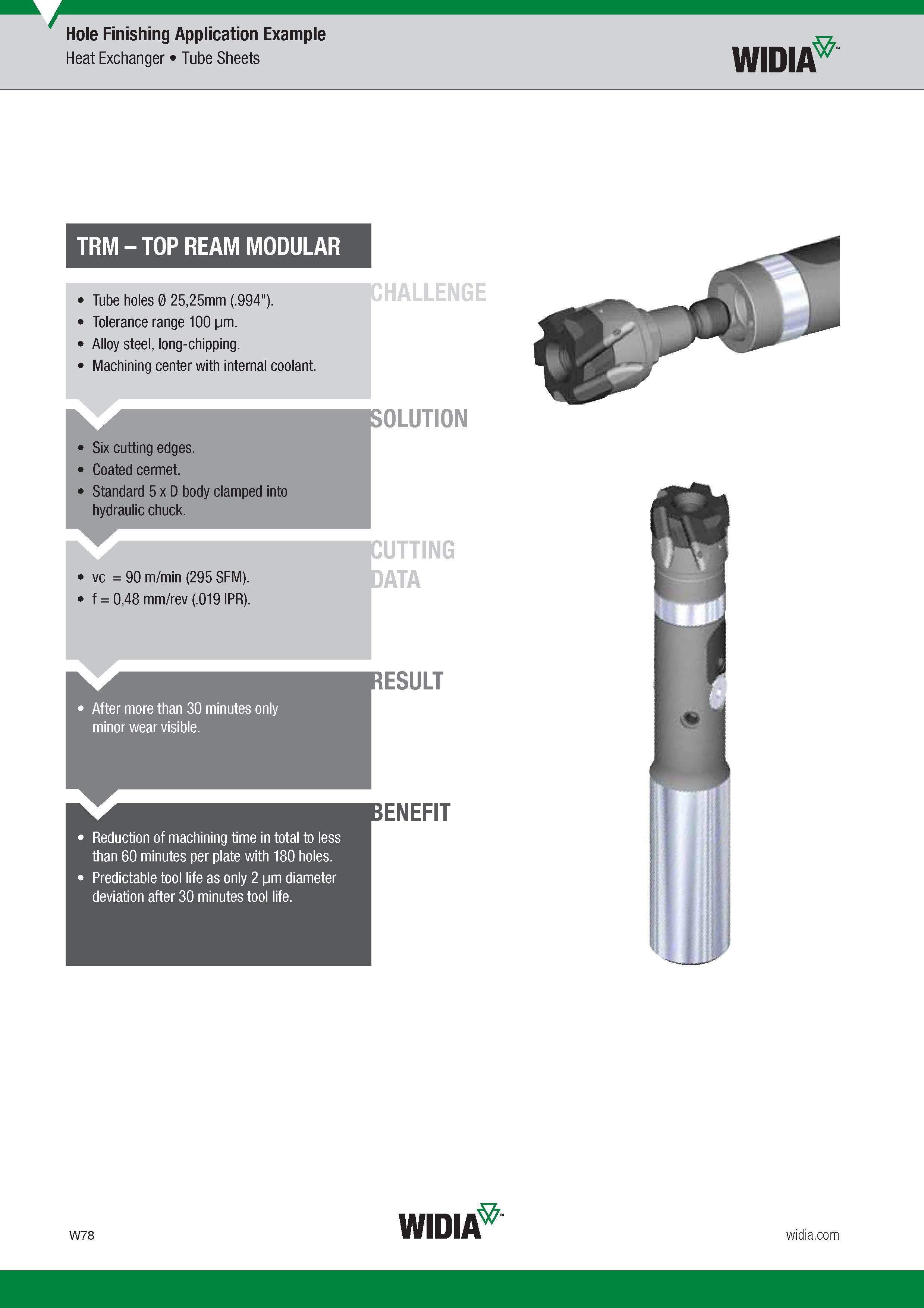

Hole Finishing Application Example Heat Exchanger Tube Sheets Widia TRM - TOP REAM MODULAR Tube holes 0 25,25mm (.994"). Tolerance range 100 m. Alloy steel, long-chipping. Machining center with internal coolant. C HALLENGE Six cutting edges. Coated cermet. Standard 5 x D body clamped into hydraulic chuck. OLUTION vc 90 m/min (295 SFM). f 0,48 mm/rev (.019 IPR). UTTING ATA RESULT J \ is BENEFIT After more than 30 minutes only minor wear visible. V Reduction of machining time in total to less than 60 minutes per plate with 180 holes. Predictable tool life as only 2 m diameter deviation after 30 minutes tool life.
