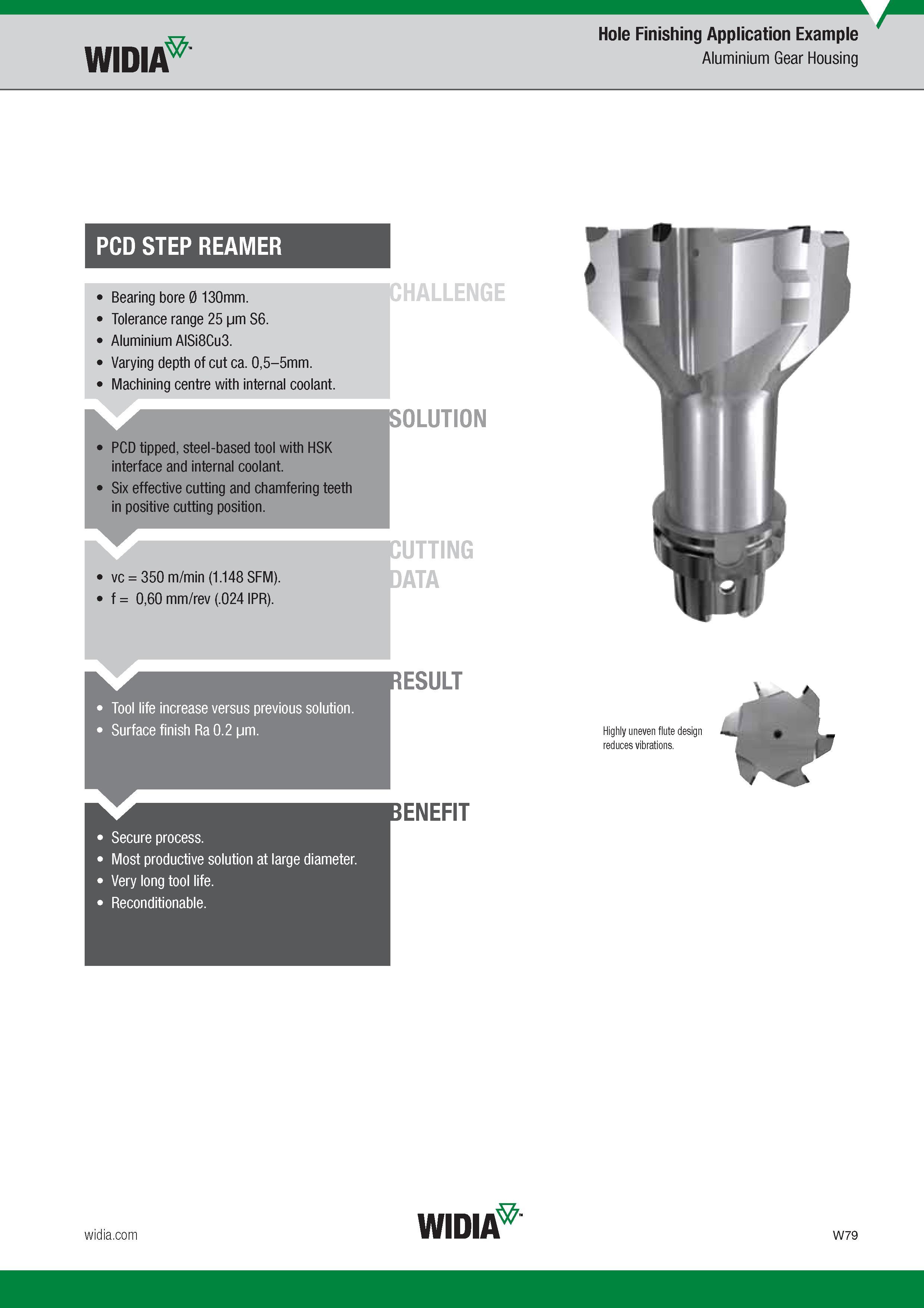

Hole Finishing Application Example Widia Aluminium Gear Housing PCD STEP REAMER Bearing bore 0 130mm. Tolerance range 25 S6. Aluminium AlSi8Cu3. Varying depth of cut ca. 0,5-5mm. Machining centre with internal coolant. PCD tipped, steel-based tool with HSK interface and internal coolant. Six effective cutting and chamfering teeth in positive cutting position. vc 350 m/min (1.148 SFM). f 0,60 mm/rev (.024 IPR). HALLENGE SOLUTION UTTING ATA RESULT BENEFIT Highly uneven flute design reduces vibrations. Tool life increase versus previous solution. Surface finish Ra 0.2 m. V Secure process. Most productive solution at large diameter. Very long tool life. Reconditionable.
