Shoulder Mill 11 Widia Victory is a high-performance, versatile, robust, 90° square shoulder milling platform VSM11 is designed for versatility, lo

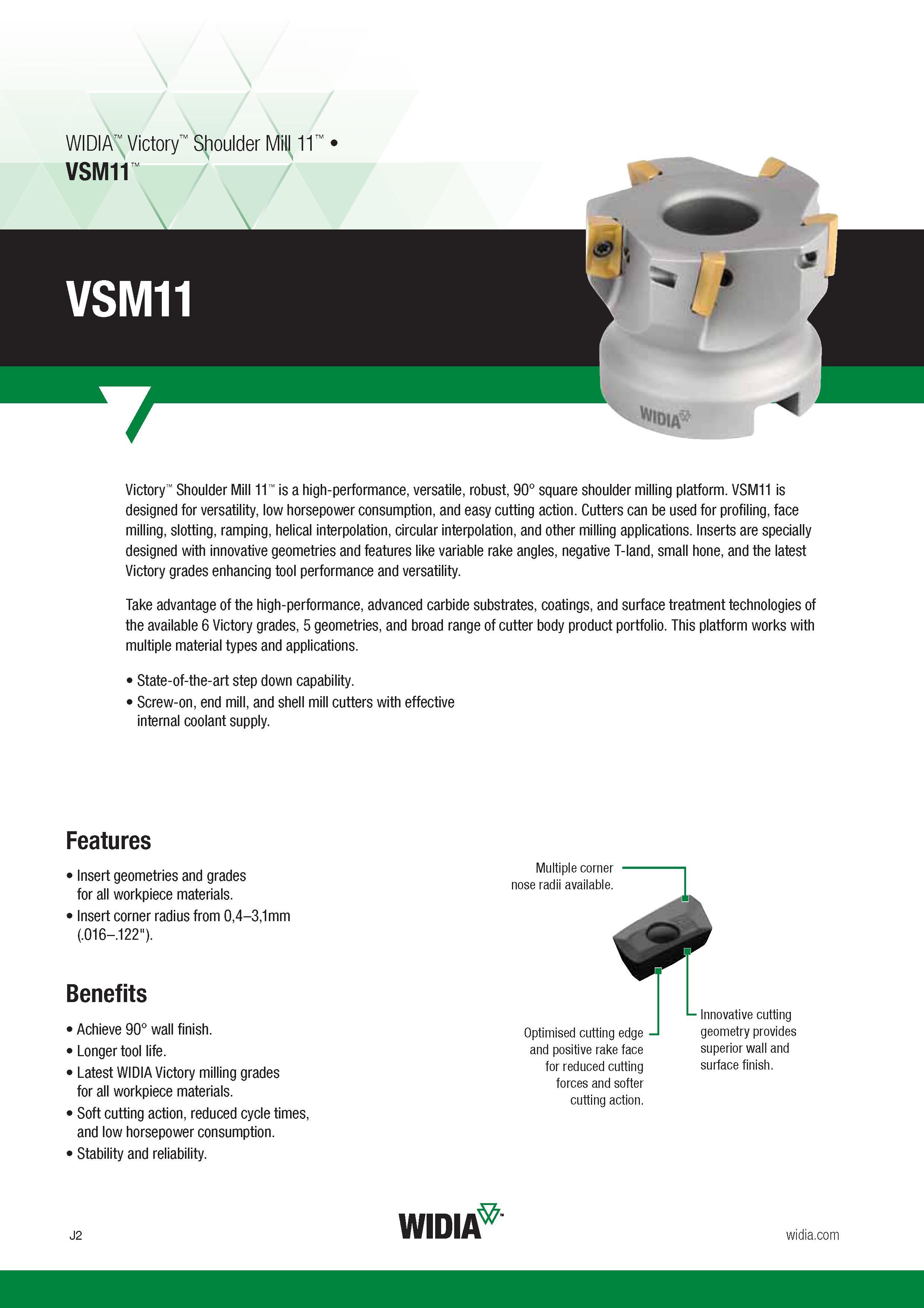

Shoulder Mill 11 Widia Victory is a high-performance, versatile, robust, 90° square shoulder milling platform. VSM11 is designed for versatility, low horsepower consumption, and easy cutting action. Cutters can be used for profiling, face milling, slotting, ramping, helical interpolation, circular interpolation, and other milling applications. Inserts are specially designed with innovative geometries and features like variable rake angles, negative T-land, small hone, and the latest Victory grade s enhancing tool performance and versatility. Take advantage of the high-performance, advanced carbide substrates, coatings, and surface treatment technologies of the available 6 Victory grade s, 5 geometries, and broad range of cutter body product portfolio. This platform works with multiple material types and applications. State-of-the-art step down capability. Screw-on, end mill, and shell mill cutters with effective internal coolant supply. Features Insert geometries and grade s for all workpiece materials. Insert corner radius from 0,4-3,1mm (.016-122"). Benefits Achieve 90° wall finish. Longer tool life. Latest Widia Victory milling grade s for all workpiece materials. Soft cutting action, reduced cycle times, and low horsepower consumption. Stability and reliability. Multiple corner nose radii available. Optimised cutting edge and positive rake face for reduced cutting forces and softer cutting action. Innovative cutting geometry provides superior wall and surface finish. J2 Widia Shoulder Mill 11 VSM11 VSM11 Victory
