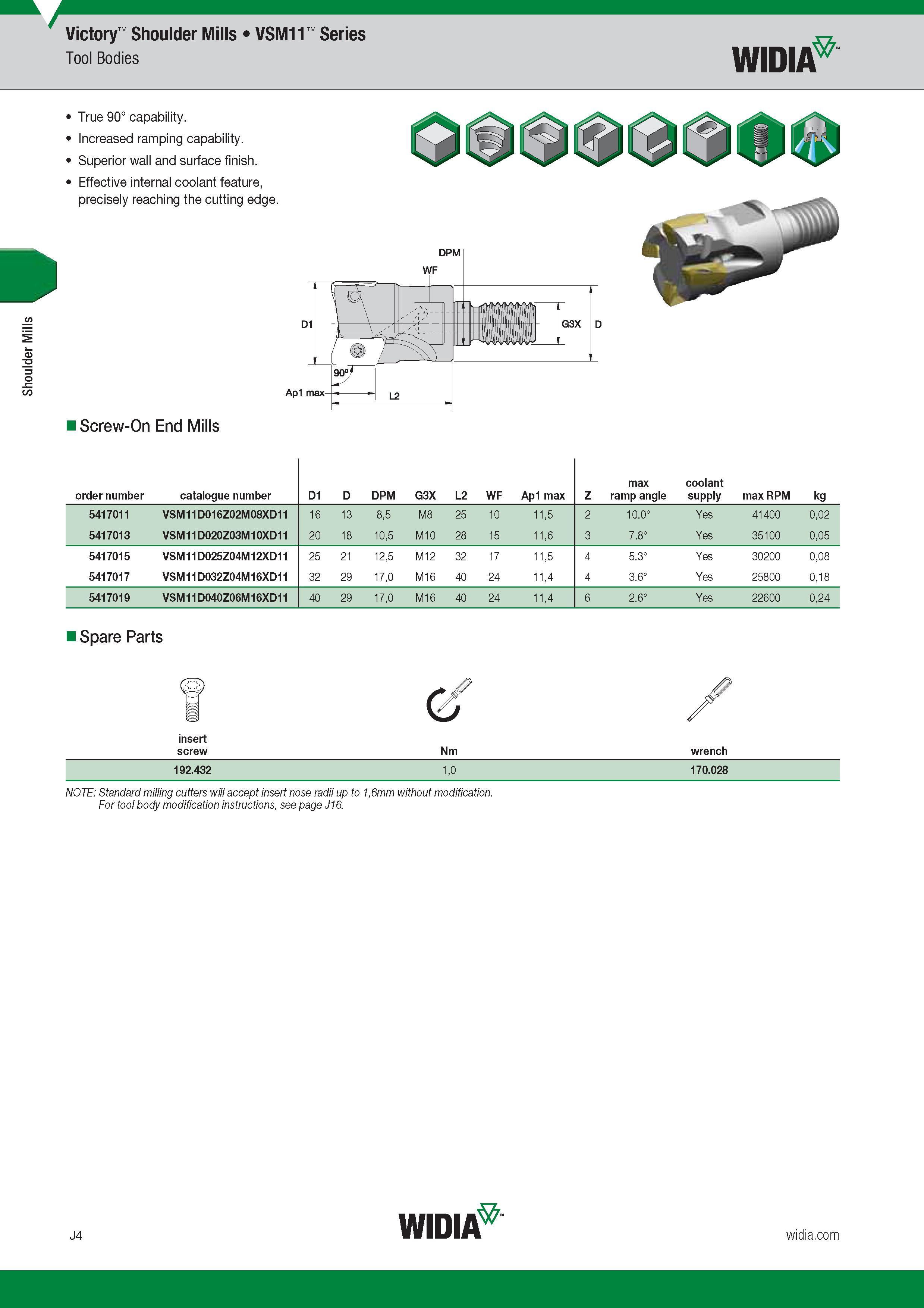

Shoulder Mills Widia VSM11 Series Tool Bodies True 90° capability. Increased ramping capability. Superior wall and surface finish. Effective internal coolant feature, precisely reaching the cutting edge. Screw-On End Mills order number Catalogue number Обозначение инструмента по каталогу D1 D DPM G3X L2 WF Ap1 max Z max ramp angle coolant supply max RPM kg 5417011 VSM11D016Z02M08XD11 16 13 8,5 M8 25 10 11,5 2 10.0° Yes 41400 0,02 5417013 VSM11D020Z03M10XD11 20 18 10,5 M10 28 15 11,6 3 7.8° Yes 35100 0,05 5417015 VSM11D025Z04M12XD11 25 21 12,5 M12 32 17 11,5 4 5.3° Yes 30200 0,08 5417017 VSM11D032Z04M16XD11 32 29 17,0 M16 40 24 11,4 4 3.6° Yes 25800 0,18 5417019 VSM11D040Z06M16XD11 40 29 17,0 M16 40 24 11,4 6 2.6° Yes 22600 0,24 Spare Parts insert screw G Nm wrench 192.432 1,0 170.028 NOTE Standard milling cutters will accept insert nose radii up to 1,6mm without modification. For tool body modification instructions, see page J16. J4 Widia Shoulder Mills Victory
