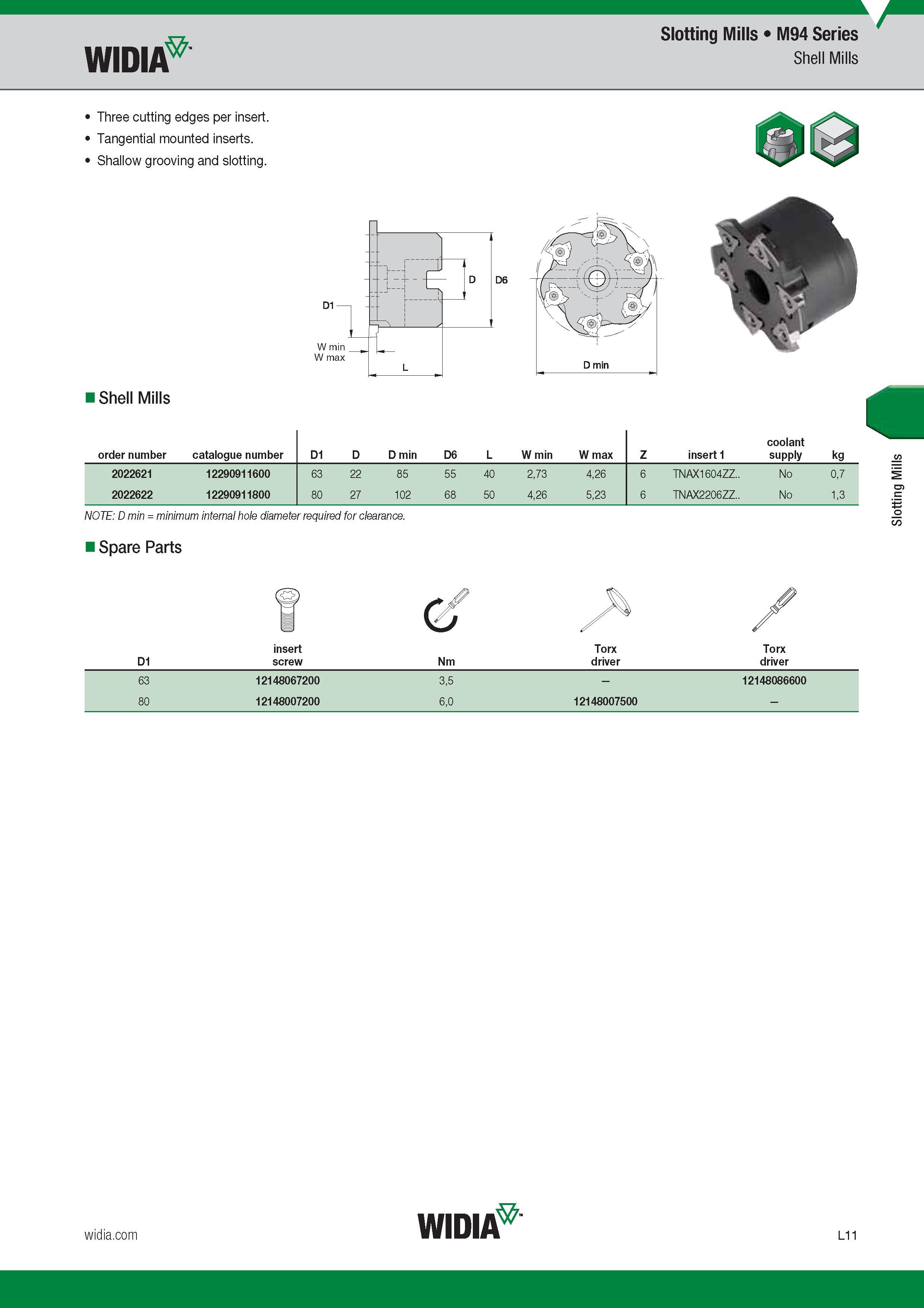

Slotting Mills Widia M94 Series Shell Mills Three cutting edges per insert. Tangential mounted inserts. Shallow grooving and slotting. Shell Mills order number Catalogue number Обозначение инструмента по каталогу D1 D D min D6 L W min W max Z insert 1 coolant supply kg 2022621 12290911600 63 22 85 55 40 2,73 4,26 6 TNAX1604ZZ.. No 0,7 2022622 12290911800 80 27 102 68 50 4,26 5,23 6 TNAX2206ZZ.. No 1,3 NOTE D min minimum internal hole diameter required for clearance. Spare Parts G D1 insert screw Nm Torx driver Torx driver 63 12148067200 3,5 - 12148086600 80 12148007200 6,0 12148007500 - Widia L11 Slotting Mills
