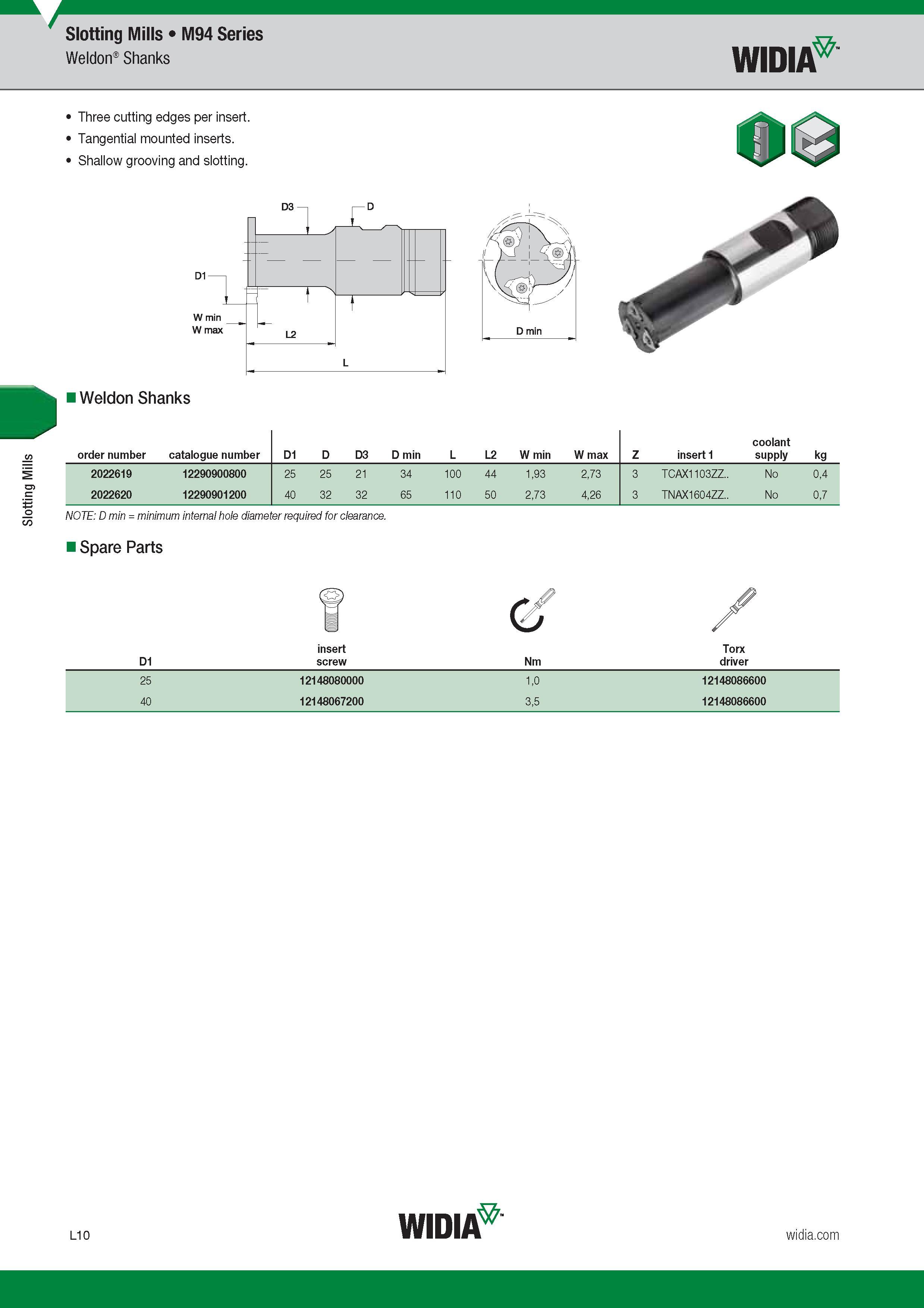

Slotting Mills Widia M94 Series Weldon Shanks Three cutting edges per insert Tangential mounted inserts Shallow grooving and slotting Weldon Shanks

Slotting Mills Widia M94 Series Weldon Shanks Three cutting edges per insert. Tangential mounted inserts. Shallow grooving and slotting. Weldon Shanks order number Catalogue number Обозначение инструмента по каталогу D1 D D3 D min L L2 W min W max Z insert 1 coolant supply kg 2022619 12290900800 25 25 21 34 100 44 1,93 2,73 3 TCAX1103ZZ.. No 0,4 2022620 12290901200 40 32 32 65 110 50 2,73 4,26 3 TNAX1604ZZ.. No 0,7 NOTE D min minimum internal hole diameter required for clearance. Spare Parts G D1 insert screw Nm Torx driver 25 12148080000 1,0 12148086600 40 12148067200 3,5 12148086600 L10 Widia Slotting Mills
