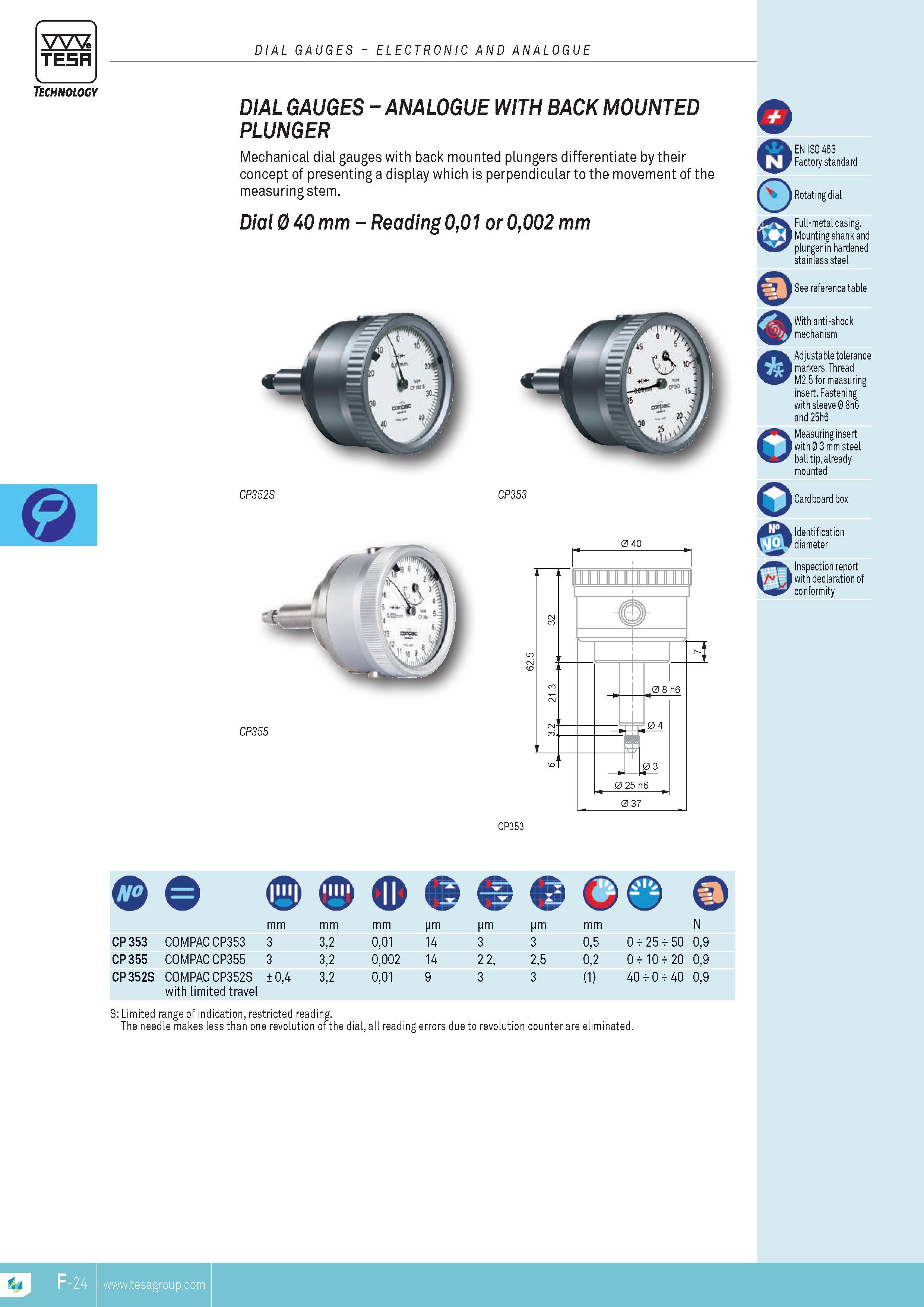

DIAL GAUGES ELECTRONIC AND ANALOGUE ISO 463 Factory standard Rotating dial Full-metal casing. Mounting shank and plunger in hardened stainless steel See reference table With anti-shock mechanism Adjustable tolerance markers. Thread M25 for measuring insert. Fastening with sleeve 0 8h6 and 25h6 Measuring insert with 0 3 mm steel ball tip already mounted Cardboard box Identification diameter Inspection report with declaration of conformity mm pm pm pm mm N CP 353 COMPAC CP353 3 32 001 14 3 3 05 0 25 50 09 CP 355 COMPAC CP355 3 32 0002 14 2 2 25 02 0 10 20 09 CP352S COMPAC CP352S with limited travel 04 32 001 9 3 3 (1) 40 0 40 09 S Limited range of indication restricted reading. The needle makes less than one revolution of the dial all reading errors due to revolution counter are eliminated. F-24 TESA Technology DIAL GAUGES ANALOGUE WITH BACK MOUNTED PLUNGER Mechanical dial gauges with back mounted plungers differentiate by their concept of presenting a display which is perpendicular to the movement of the measuring stem. Dial 0 40 mm Reading 001 or 0002 mm 0 3 0 25 h6 0 37 CP353
