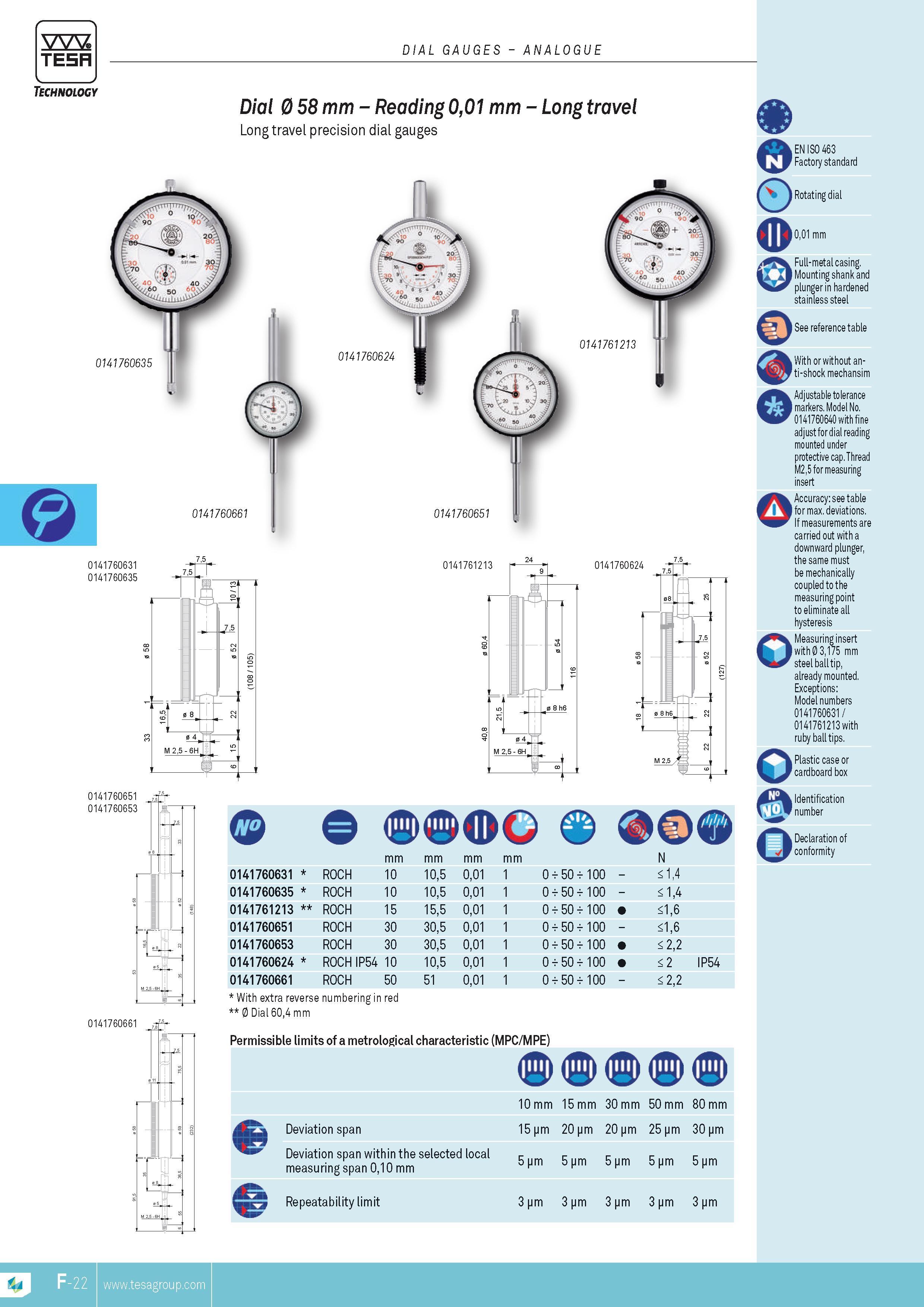

DIAL GAUGES TESA ANALOGUE Dial 0 58 mm Reading 001 mm Long travel Long travel precision dial gauges 0141760635 0141760624 0141761213 0141760631 0141760635 0 8 1 0141760651 0141760653 mm N 0141760631 ROCH 10 105 001 1 0 50 100 14 0141760635 ROCH 10 105 001 1 0 50 100 14 0141761213 ROCH 15 155 001 1 0 50 100 16 0141760651 ROCH 30 305 001 1 0 50 100 16 0141760653 ROCH 30 305 001 1 0 50 100 22 0141760624 ROCH IP54 10 105 001 1 0 50 100 2 IP54 0141760661 ROCH 50 51 001 1 0 50 100 22 0141760661 With extra reverse numbering in red 0 Dial 604 mm Permissible limits of a metrological characteristic (MPC MPE) 10 mm 15 mm 30 mm 50 mm 80 mm Deviation span 15 pm 20 pm 20 pm 25 pm 30 pm Deviation span within the selected local measuring span 010 mm 5 pm 5 pm 5 pm 5 pm 5 pm Repeatability limit 3 pm 3 pm 3 pm 3 pm 3 pm EN ISO 463 Factory standard Rotating dial 001 mm Full-metal casing. Mounting shank and plunger in hardened stainless steel See reference table Q With or without anti-shock mechansim Adjustable tolerance markers. Model No. 0141760640 with fine adjust for dial reading mounted under protective cap. Thread M25 for measuring insert Accuracy see table for max. deviations. If MEASUREMENTs are carried out with a downward plunger the same must be mechanically coupled to the measuring point to eliminate all hysteresis Measuring insert with 0 3175 mm steel ball tip already mounted. Exceptions Model numbers 0141760631 0141761213 with ruby ball tips. Plastic case or cardboard box o Identification number Declaration of conformity TESA M 25 6H Technology
