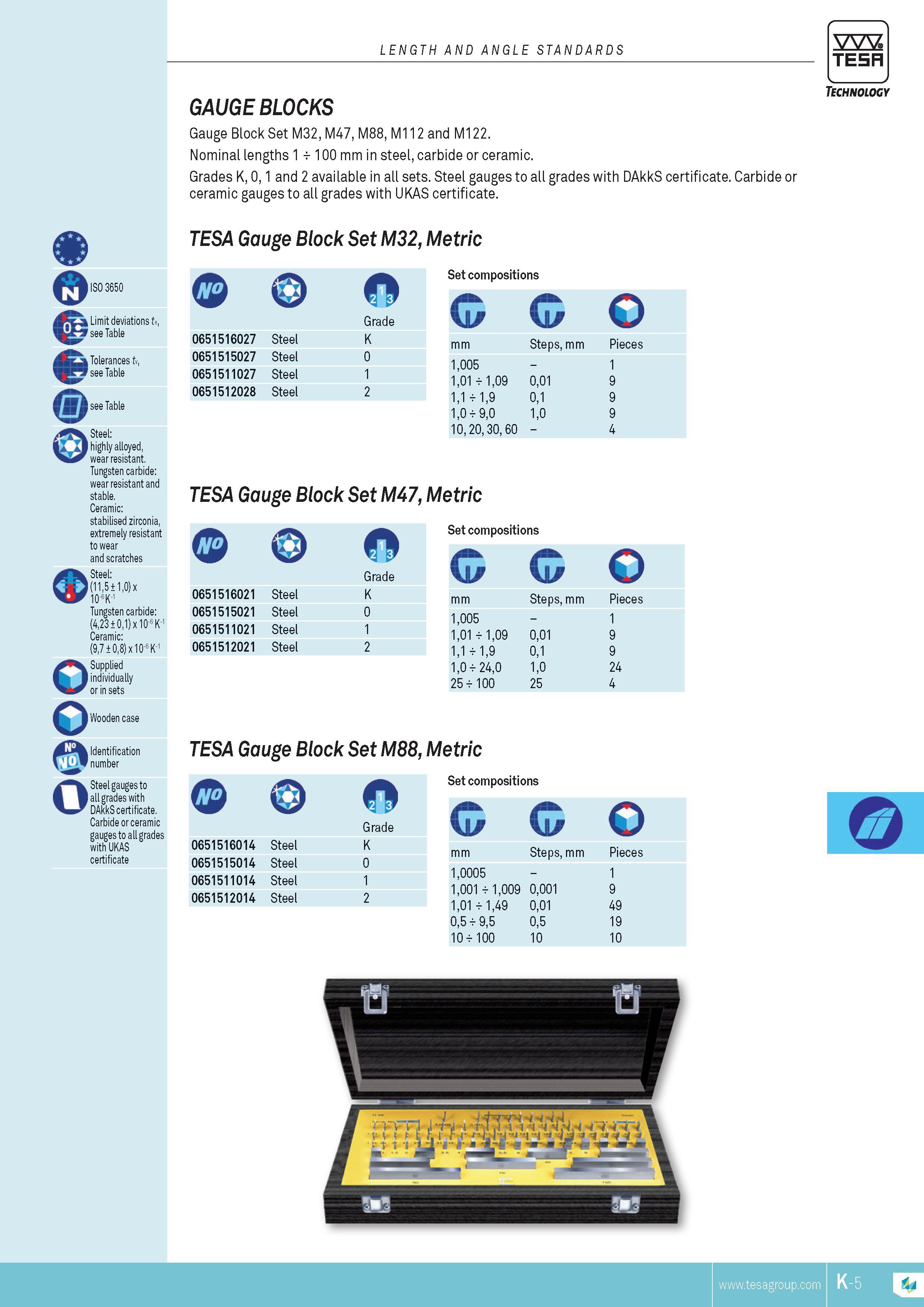

Gauge Block Set M32 M47 M88 M112 and M122 Nominal lengths 1 f 100 mm in steel carbide or ceramic Grades K 0 1 and 2 available in all sets Steel gauges

Gauge Block Set M32 M47 M88 M112 and M122. Nominal lengths 1 f 100 mm in steel carbide or ceramic. Grades K 0 1 and 2 available in all sets. Steel gauges to all grades with DAkkS certificate. Carbide or ceramic gauges to all grades with UKAS certificate. ISO 3650 o Limit deviations te see Table Tolerances tv see Table see Table Steel highly alloyed wear resistant. Tungsten carbide wear resistant and stable. Ceramic stabilised zirconia extremely resistant to wear and scratches . Steel (115 10) x 10-6 K-1 Tungsten carbide (423 01) x 10-6 K-1 Ceramic (97 08) x 10-6 K-1 Supplied individually or in sets Wooden case Identification number Steel gauges to all grades with DAkkS certificate. Carbide or ceramic gauges to all grades with UKAS certificate TESA Gauge Block Set M32 Metric Set compositions 0651516027 Steel 0651515027 Steel 0651511027 Steel 0651512028 Steel Grade K 0 1 2 G G 1005 1.01 f 109 1.1 f 19 10 f 90 10 20 30 60 Steps mm 001 01 10 TESA Gauge Block Set M47 Metric Set compositions Grade 0651516021 Steel 0651515021 Steel 0651511021 Steel 0651512021 Steel K 0 1 2 1005 1.01 f 109 1.1 f 19 10 f 240 25 f 100 001 01 10 25 TESA Gauge Block Set M88 Metric 0651516014 Steel 0651515014 Steel 0651511014 Steel 0651512014 Steel Grade K 0 1 2 Set compositions Steps mm 10005 1.001 f 1009 0001 1.01 f 149 001 05 f 95 05 10f100 10 Pieces 1 9 9 9 4 G G Steps mm Pieces 1 9 9 24 4 G G Pieces 1 9 49 19 10 mm mm LENGTH AND ANGLE STANDARDS TESA Technology GAUGE BLOCKS
