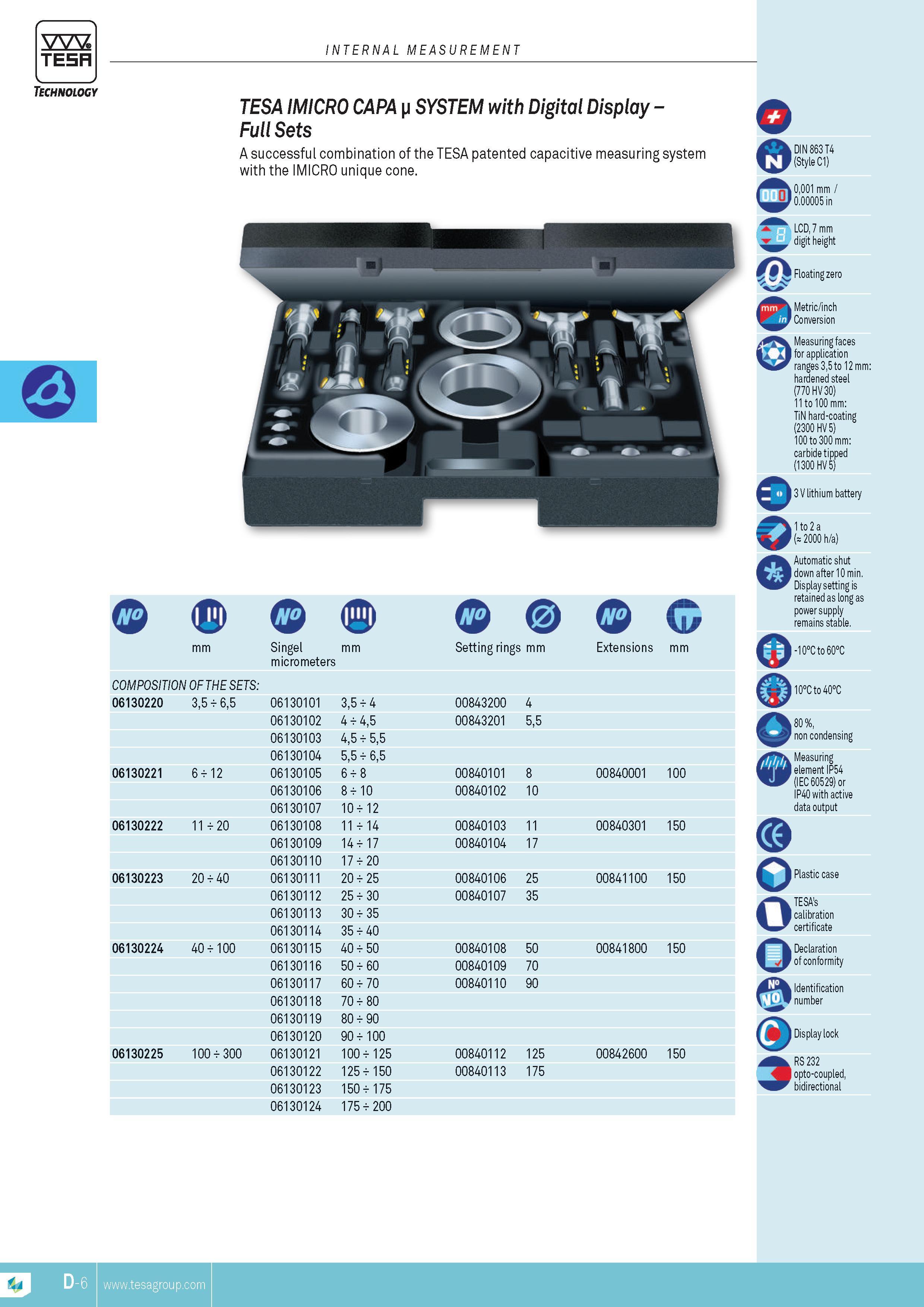

INTERNAL MEASUREMENT TESA IMICRO CAPA p SYSTEM with Digital Display -Full Sets A successful combination of the TESA patented capacitive measuring system with the IMICRO unique cone. mm Singel micrometers mm Setting rings mm Extensions mm COMPOSITION OF THE SETS 06130220 35 65 06130101 35 4 00843200 4 06130102 4 45 00843201 55 06130103 45 55 06130104 55 65 06130221 6 12 06130105 6 8 00840101 8 00840001 100 06130106 8 10 00840102 10 06130107 10 12 06130222 11 20 06130108 11 14 00840103 11 00840301 150 06130109 14 17 00840104 17 06130110 17 20 06130223 20 40 06130111 20 25 00840106 25 00841100 150 06130112 25 30 00840107 35 06130113 30 35 06130114 35 40 06130224 40 100 06130115 40 50 00840108 50 00841800 150 06130116 50 60 00840109 70 06130117 60 70 00840110 90 06130118 70 80 06130119 80 90 06130120 90 100 06130225 100 300 06130121 100 125 00840112 125 00842600 150 06130122 125 150 00840113 175 06130123 150 175 06130124 175 200 o DIN 863 T4 (Style C1) 0001 mm 0.00005 in - LCD 7 mm digit height Q)i w o m 0 Floating zero Metric inch Conversion Measuring faces for application ranges 35 to 12 mm hardened steel (770 HV 30) 11 to 100 mm TiN hard-coating (2300 HV 5) 100 to 300 mm carbide tipped (1300 HV 5) 3 V lithium battery 1 to 2 a ( 2000 h a) Automatic shut down after 10 min. Display setting is retained as long as power supply remains stable. 10C to60C 10C to 40C non condensing Measuring element IP54 (IEC 60529) or IP40 with active data output Plastic case TESA's calibration certificate Declaration of conformity Identification number Display lock RS 232 opto-coupled bidirectional -6 TESA TESA Technology
