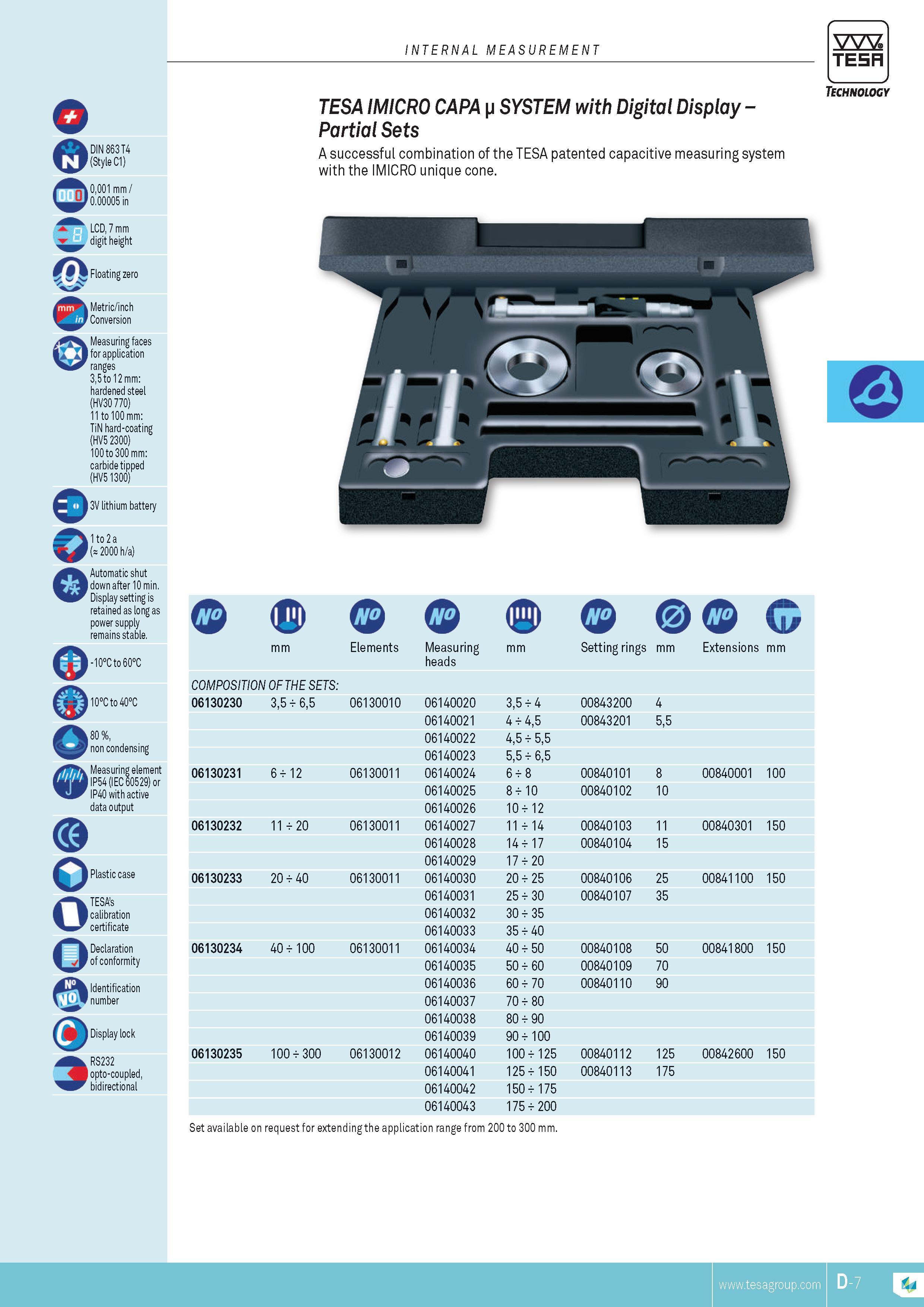

MICRO CAPA SYSTEM TESA with Digital Display Partial Sets A successful combination of the TESA patented capacitive measuring system with the IMICRO unique cone. o & o LCD 7 mm digit height Floating zero Metric inch Conversion Measuring faces for application ranges 35 to 12 mm hardened steel (HV30 770) 11 to 100 mm TiN hard-coating (HV5 2300) 100 to 300 mm carbide tipped (HV5 1300) 3V lithium battery 1 to 2 a ( 2000 h a) Automatic shut down after 10 min. Display setting is retained as long as power supply remains stable. -10C to60C 10C to 40C non condensing Measuring element IP54 (IEC 60529) or IP40 with active data output Plastic case TESAs calibration certificate Declaration of conformity Identification number Display lock RS232 opto-coupled bidirectional TESA Technology Q mm Elements Measuring mm heads Setting rings mm Extensions mm COMPOSITION OF THE SETS 06130230 35 65 06130010 06140020 35 4 00843200 4 06140021 4 45 00843201 55 06140022 45 55 06140023 55 65 06130231 6 12 06130011 06140024 6 8 00840101 8 00840001 100 06140025 8 10 00840102 10 06140026 10 12 06130232 11 20 06130011 06140027 11 14 00840103 11 00840301 150 06140028 14 17 00840104 15 06140029 17 20 06130233 20 40 06130011 06140030 20 25 00840106 25 00841100 150 06140031 25 30 00840107 35 06140032 30 35 06140033 35 40 06130234 40 100 06130011 06140034 40 50 00840108 50 00841800 150 06140035 50 60 00840109 70 06140036 60 70 00840110 90 06140037 70 80 06140038 80 90 06140039 90 100 06130235 100 300 06130012 06140040 100 125 00840112 125 00842600 150 06140041 125 150 00840113 175 06140042 150 175 06140043 175 200 Set available on request for extending the application range from 200 to 300 mm. TESA INTERNAL MEASUREMENT DIN 863 T4 (Style C1) 0001 mm 0.00005 in
