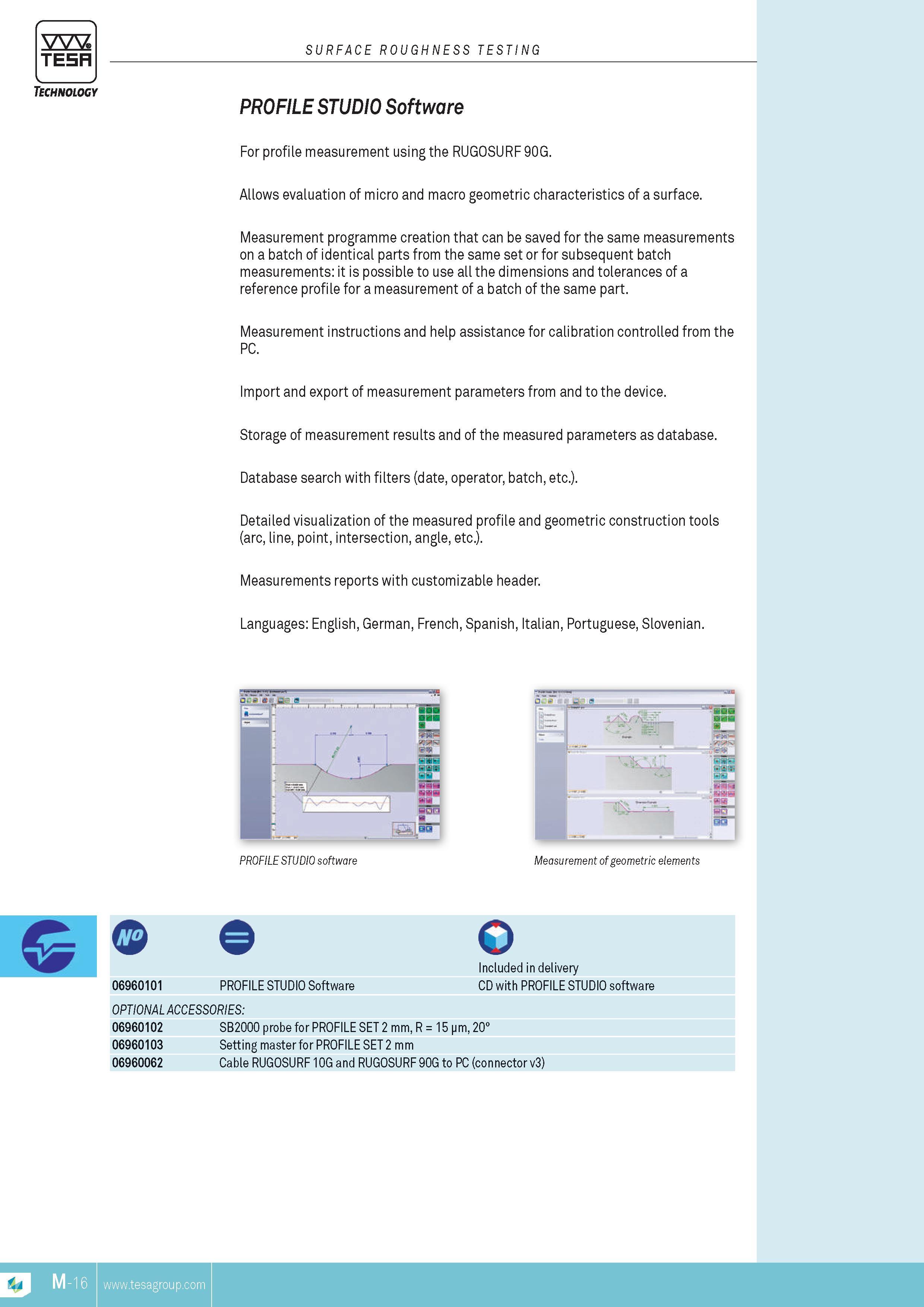

TESA SURFACE ROUGHNESS TESTING Technology PROFILE STUDIO Software For profile MEASUREMENT using the RUGOSURF 90G. Allows evaluation of micro and macro geometric characteristics of a surface. MEASUREMENT programme creation that can be saved for the same MEASUREMENTs on a batch of identical parts from the same set or for subsequent batch MEASUREMENTs it is possible to use all the dimensions and tolerances of a reference profile for a MEASUREMENT of a batch of the same part. MEASUREMENT instructions and help assistance for calibration controlled from the PC. Import and export of MEASUREMENT parameters from and to the device. Storage of MEASUREMENT results and of the measured parameters as database. Database search with filters (date operator batch etc.). Detailed visualization of the measured profile and geometric construction tools (arc line point intersection angle etc.). MEASUREMENTs reports with customizable header. Languages English German French Spanish Italian Portuguese Slovenian. PROFILE STUDIO software MEASUREMENT of geometric elements o 06960101 PROFILE STUDIO Software Includedin delivery CD with PROFILE STUDIO software OPTIONAL AccESSORIES 06960102 SB2000 probe for PROFILE SET 2 mm R 15 pm 20 06960103 Setting master for PROFILE SET 2 mm 06960062 Cable RUGOSURF 10G and RUGOSURF 90G to PC (connector v3) M -16 TESA
