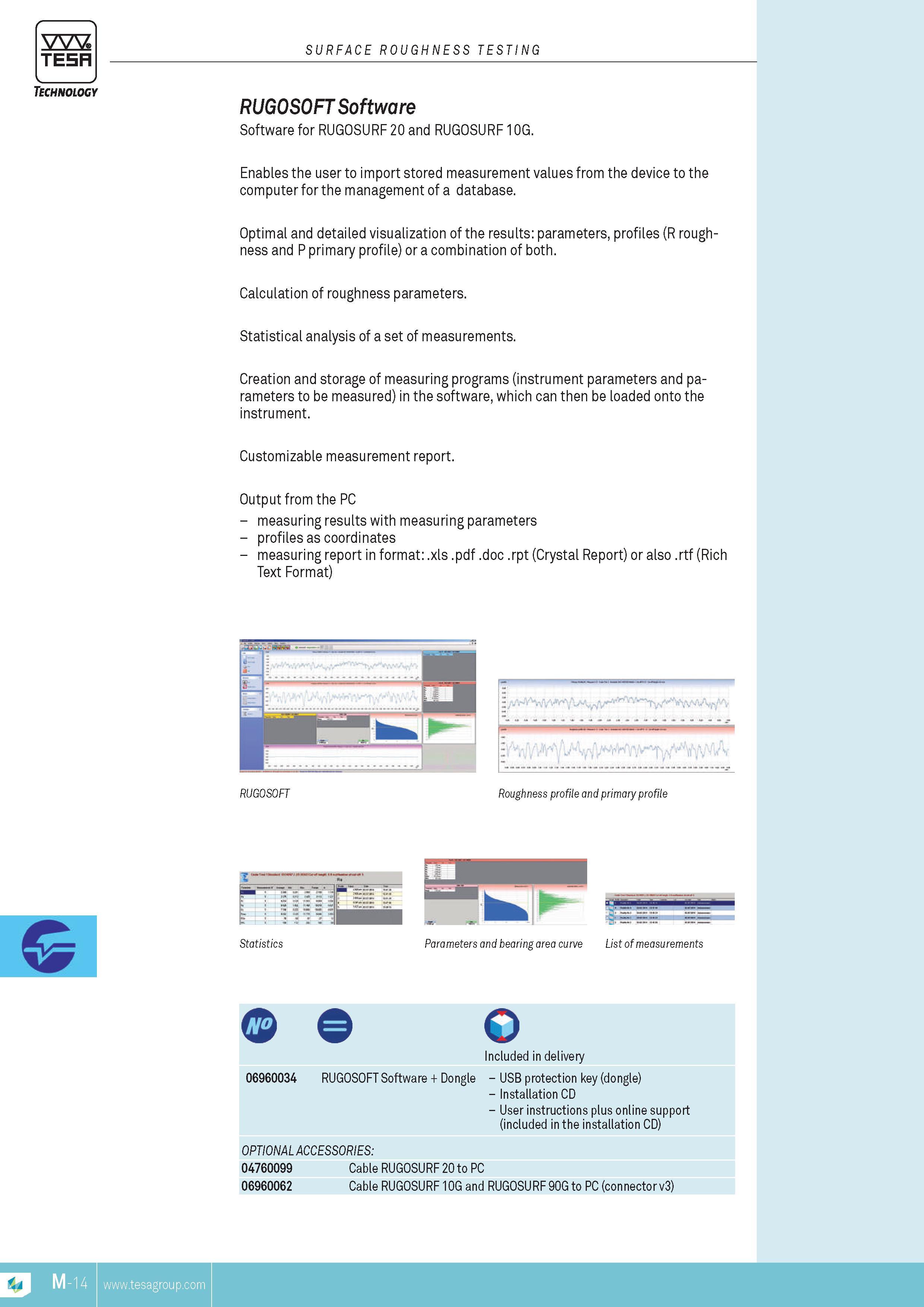

TESA surface roughness testing Technology RUGOSOFT Software Software for RUGOSURF 20 and RUGOSURF 10G. Enables the user to import stored MEASUREMENT values from the device to the computer for the management of a database. Optimal and detailed visualization of the results parameters profiles (R roughness and P primary profile) or a combination of both. Calculation of roughness parameters. Statistical analysis of a set of MEASUREMENTs. Creation and storage of measuring programs (instrument parameters and parameters to be measured) in the software which can then be loaded onto the instrument. Customizable MEASUREMENT report. Output from the PC measuring results with measuring parameters profiles as coordinates measuring report in format .xls .pdf .doc .rpt (Crystal Report) or also .rtf (Rich Text Format) RUGOSOFT Roughness profile and primary profile Statistics Parameters and bearing area curve List of MEASUREMENTs Included in delivery 06960034 RUGOSOFT Software + Dongle USB protection key (dongle) Installation CD User instructions plus online support (included in the installation CD) OPTIONAL AccESSORIES 04760099 Cable RUGOSURF 20 to PC 06960062 Cable RUGOSURF 10G and RUGOSURF 90G to PC (connector v3) TESA M-14
