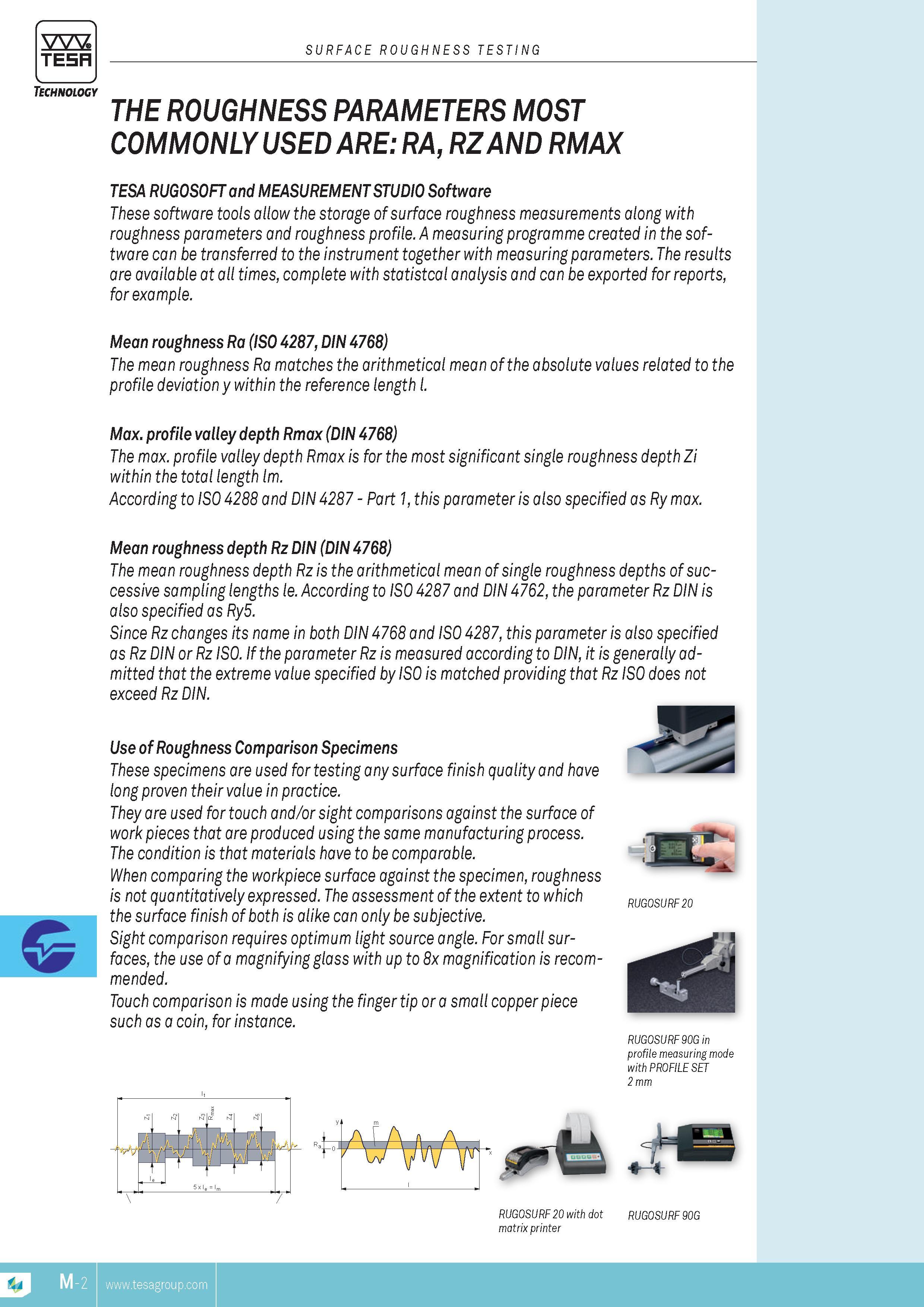

TESA SURFACE ROUGHNESS TESTING Technology THE ROUGHNESS PARAMETERS MOST COMMONLY USED ARE RA RZ AND RMAX TESA RUGOSOFT and MEASUREMENT STUDIO Software These software tools allow the storage of surface roughness MEASUREMENTs along with roughness parameters and roughness profile. A measuring programme created in the software can be transferred to the instrument together with measuring parameters. The results are available at all times complete with statistcal analysis and can be exported for reports for example. Mean roughness Ra (ISO 4287 DIN 4768) The mean roughness Ra matches the arithmetical mean of the absolute values related to the profile deviation y within the reference length l. Max. profile valley depth Rmax (DIN 4768) The max. profile valley depth Rmax is for the most significant single roughness depth Zi within the total length lm. According to ISO 4288 and DIN 4287 Part 1 this parameter is also specified as Ry max. Mean roughness depth Rz DIN (DIN 4768) The mean roughness depth Rz is the arithmetical mean of single roughness depths of successive sampling lengths le. According to ISO 4287 and DIN 4762 the parameter Rz DIN is also specified as Ry5. Since Rz changes its name in both DIN 4768 and ISO 4287 this parameter is also specified as Rz DIN or Rz ISO. If the parameter Rz is measured according to DIN it is generally admitted that the extreme value specified by ISO is matched providing that Rz ISO does not exceed Rz DIN. Use of Roughness Comparison Specimens These specimens are used for testing any surface finish quality and have long proven their value in practice. They are used for touch and or sight comparisons against the surface of work pieces that are produced using the same manufacturing process. The condition is that materials have to be comparable. When comparing the workpiece surface against the specimen roughness is not quantitatively expressed. The assessment of the extent to which the surface finish of both is alike can only be subjective. Sight comparison requires optimum light source angle. For small surfaces the use of a magnifying glass with up to 8x magnification is recommended. Touch comparison is made using the finger tip or a small copper piece such as a coin for instance. RUGOSURF20 RUGOSURF 90G in profile measuring mode with PROFILE SET 2 mm RUGOSURF 20 with dot RUGOSURF 90G matrix printer TESA
