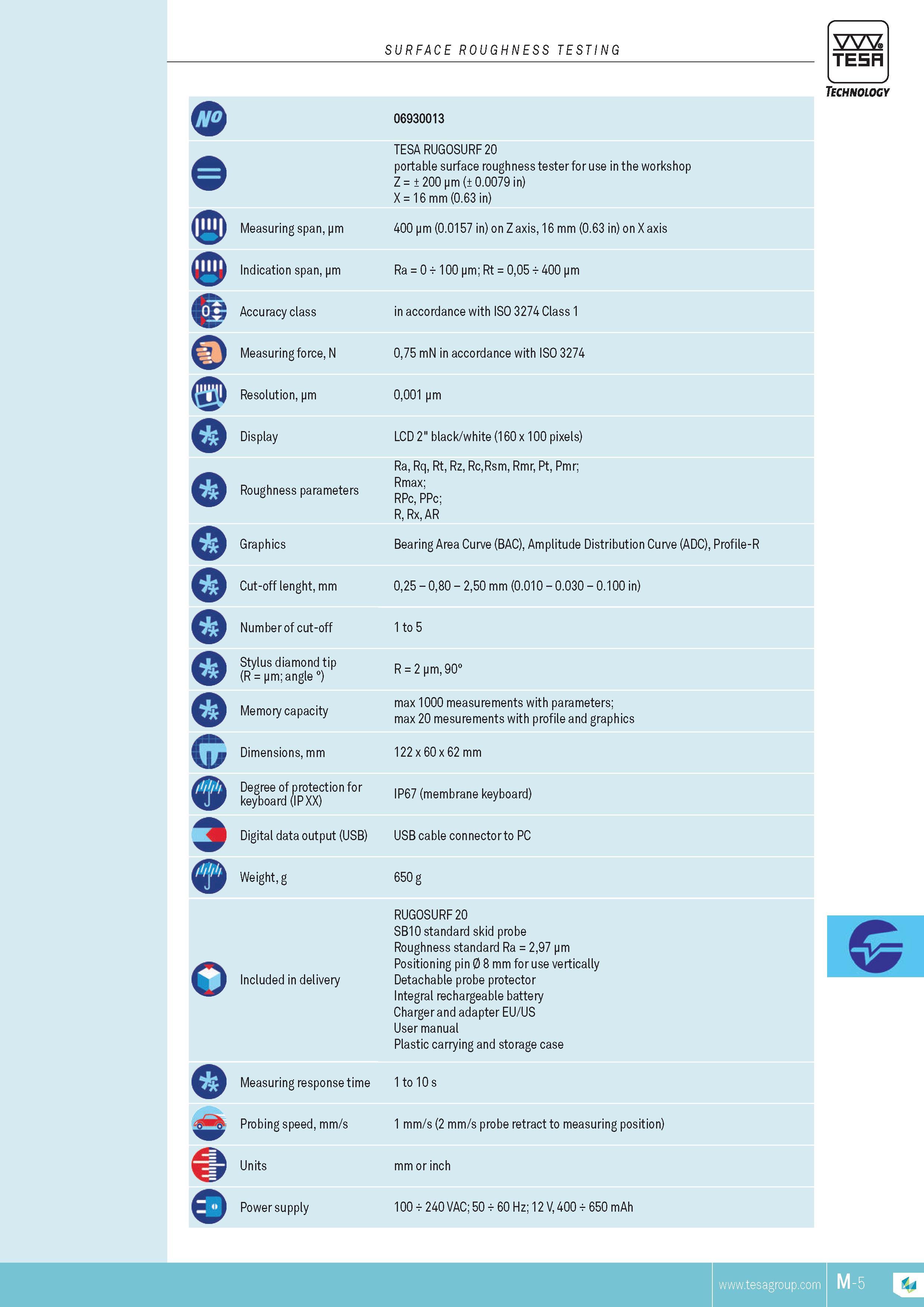

Measuring span pm Indication span pm Accuracy class Measuring force N Resolution pm Display Roughness parameters Graphics Cut-off lenght mm Number of cut-off Stylus diamond tip (R pm; angle ) Memory capacity Dimensions mm Degree of protection for keyboard (IP XX) Digital data output (USB) Weight g Included in delivery Measuring response time Probing speed mm s Units Power supply surface ROUGHNESS TESTING TESA Technology 06930013 TESA RUGOSURF 20 portable surface roughness tester for use in the workshop Z 200 pm ( 0.0079 in) X 16 mm (0.63 in) 400 pm (0.0157 in) on Z axis 16 mm (0.63 in) on X axis Ra 0 t 100 pm; Rt 005 t 400 pm in accordance with ISO 3274 Class 1 075 mN in accordance with ISO 3274 0001 pm LCD 2" black white (160 x 100 pixels) Ra Rq Rt Rz RcRsm Rmr Pt Pmr; Rmax; RPc PPc; R Rx AR Bearing Area Curve (BAC) Amplitude Distribution Curve (ADC) Profile-R 025 080 250 mm (0.010 0.030 0.100 in) 1 to 5 R 2 pm 90 max 1000 MEASUREMENTs with parameters; max 20 mesurements with profile and graphics 122 x 60 x 62 mm IP67 (membrane keyboard) USB cable connector to PC 650 g RUGOSURF 20 SB10 standard skid probe Roughness standard Ra 297 pm Positioning pin 0 8 mm for use vertically Detachable probe protector Integral rechargeable battery Charger and adapter EU US User manual Plastic carrying and storage case 1 to 10 s 1 mm s (2 mm s probe retract to measuring position) mm or inch 100 t 240 VAC; 50 t 60 Hz; 12 V 400 t 650 mAh TESA M-5
