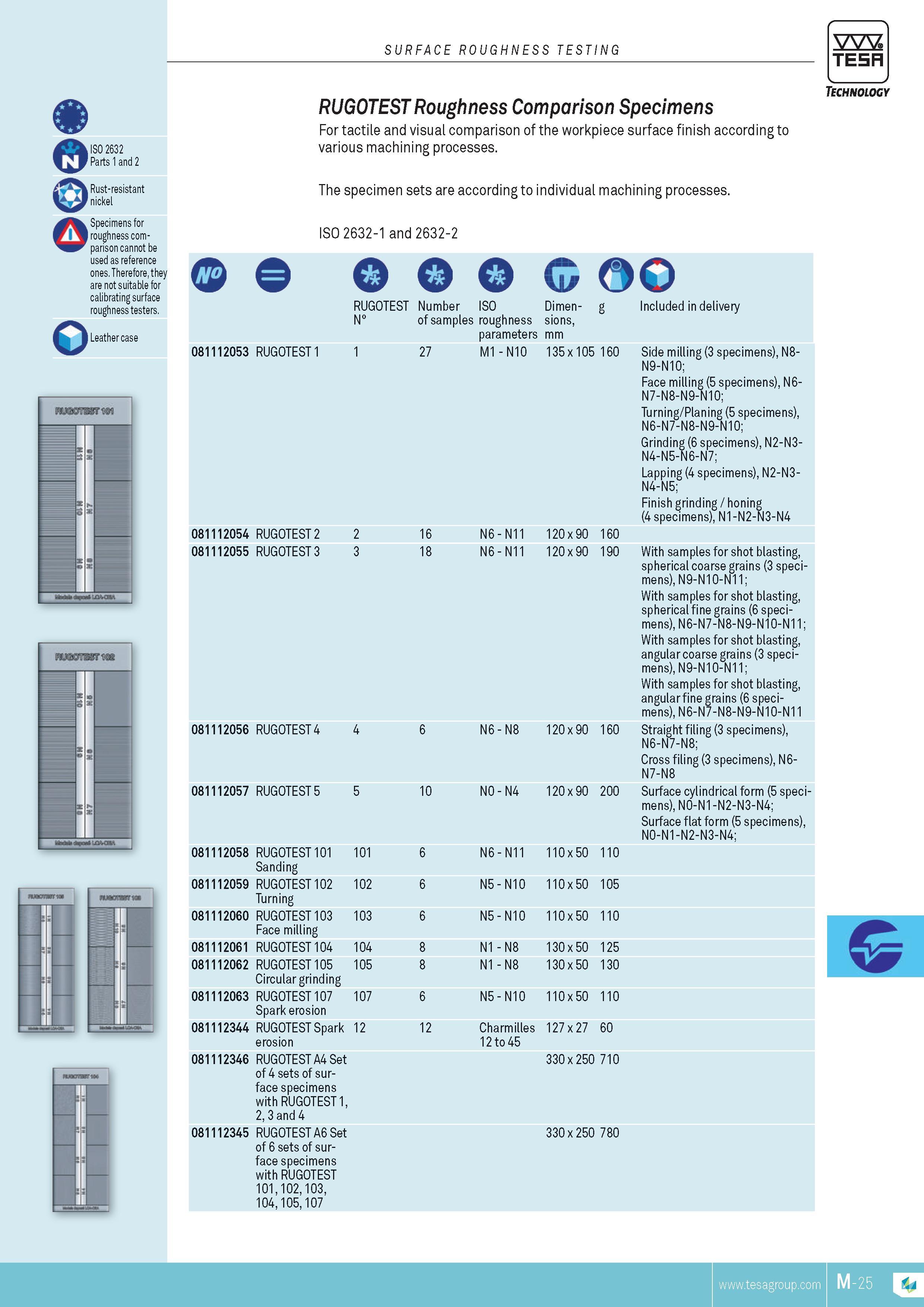

SURFACE ROUGHNESS TESTING TESA ISO 2632 Parts 1 and 2 Rust-resistant nickel Specimens for roughness comparison cannot be used as reference ones. Therefore they are not suitable for calibrating surface roughness testers. Leather case RUGOTEST Roughness Comparison Specimens For tactile and visual comparison of the workpiece surface finish according to various machining processes. The specimen sets are according to individual machining processes. ISO 2632-1 and 2632-2 Technology OO OO RUGOTEST Number ISO Dimen- N of samples roughness sions parameters mm Included in delivery 081112053 RUGOTEST1 1 27 M1 -N10 135x 105 160 Side milling (3 specimens) N8-N9-N10; Face milling (5 specimens) N6-N7-N8-N9-N10; Turning Planing (5 specimens) N6-N7-N8-N9-N10; Grinding (6 specimens) N2-N3-N4-N5-N6-N7; Lapping (4 specimens) N2-N3-N4-N5; Finish grinding honing (4 specimens) N1-N2-N3-N4 081112054 RUGOTEST2 2 16 N6 N11 120 x 90 160 081112055 RUGOTEST3 3 18 N6 N11 120 x 90 190 With samples for shot blasting spherical coarse grains (3 specimens) N9-N10-N11; With samples for shot blasting spherical fine grains (6 specimens) N6-N7-N8-N9-N10-N11; With samples for shot blasting angular coarse grains (3 specimens) N9-N10-N11; With samples for shot blasting angular fine grains (6 specimens) N6-N7-N8-N9-N10-N11 081112056 RUGOTEST4 4 6 N6 N8 120 x 90 160 Straight filing (3 specimens) N6-N7-N8; Cross filing (3 specimens) N6-N7-N8 081112057 RUGOTEST5 5 10 N0 N4 120 x 90 200 Surface cylindrical form (5 specimens) N0-N1-N2-N3-N4; Surface flat form (5 specimens) N0-N1-N2-N3-N4; 081112058 RUGOTEST 101 Sanding 101 6 N6 N11 110 x 50 110 081112059 RUGOTEST102 Turning 102 6 N5 N10 110 x 50 105 081112060 RUGOTEST103 Face milling 103 6 N5 N10 110 x 50 110 081112061 RUGOTEST104 104 8 N1 N8 130 x 50 125 081112062 RUGOTEST105 Circular grinding 105 8 N1 N8 130 x 50 130 081112063 RUGOTEST107 Spark erosion 107 6 N5 N10 110 x 50 110 081112344 RUGOTEST Spark erosion 12 12 Charmilles 12 to 45 127 x 27 60 081112346 RUGOTEST A4 Set of 4 sets of surface specimens with RUGOTEST 1 2 3 and 4 330 x 250 710 081112345 RUGOTEST A6 Set of 6 sets of surface specimens with RUGOTEST 101 102 103 104 105 107 330 x 250 780 g TESA M-25 Q
