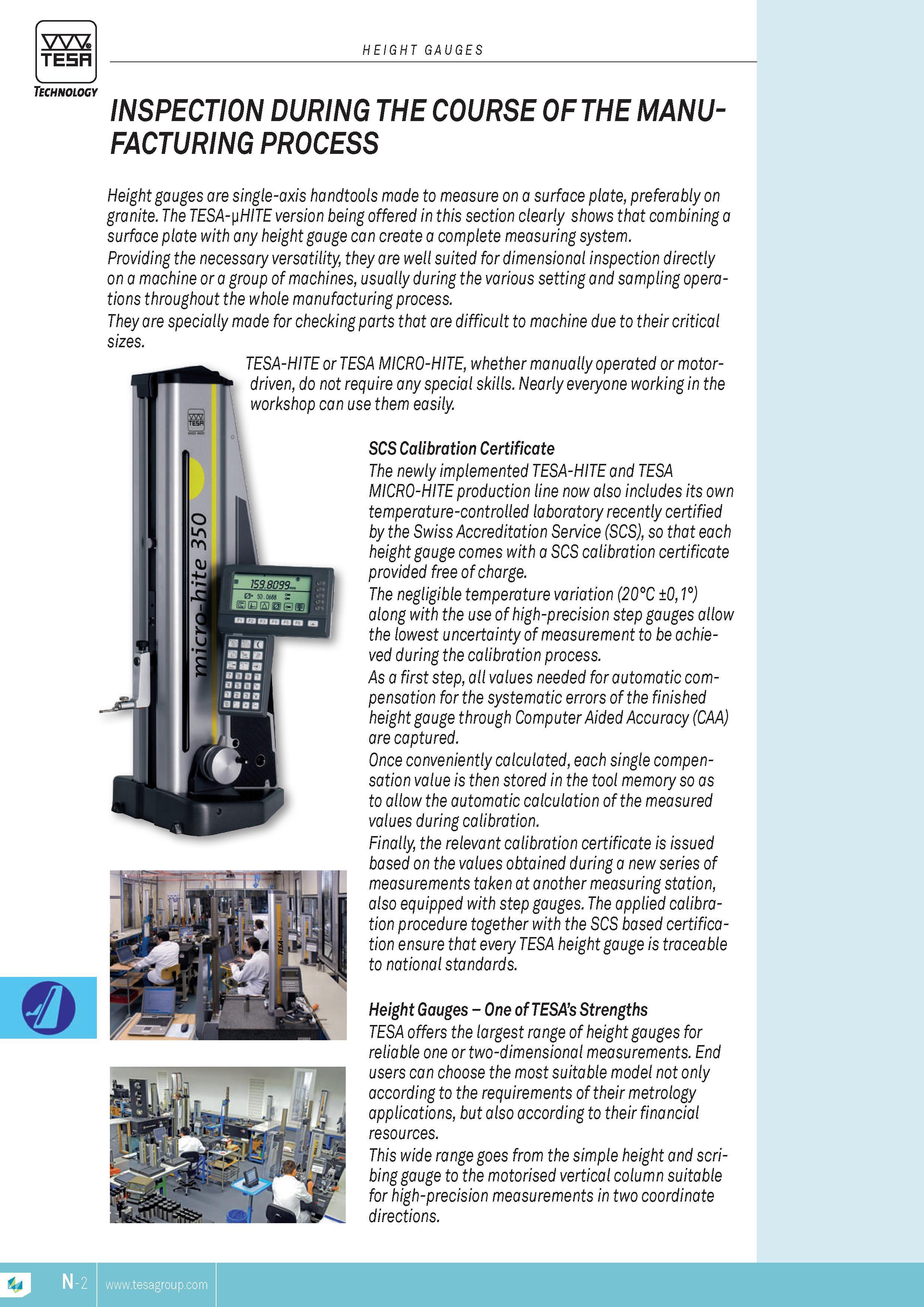

TESA HEIGHT GAUGES Technology INSPECTION DURING THE COURSE OF THE MANUFACTURING PROCESS Height gauges are single-axis handtools made to measure on a surface plate preferably on granite. The TESA-yHITE version being offered in this section clearly shows that combining a surface plate with any height gauge can create a complete measuring system. Providing the necessary versatility they are well suited for dimensional inspection directly on a machine or a group of machines usually during the various setting and sampling operations throughout the whole manufacturing process. They are specially made for checking parts that are difficult to machine due to their critical sizes. TESA-HITE or TESA MICRO-HITE whether manually operated or motor-driven do not require any special skills. Nearly everyone working in the workshop can use them easily. SCS Calibration Certificate The newly implemented TESA-HITE and TESA MICRO-HITE production line now also includes its own temperature-controlled laboratory recently certified by the Swiss Accreditation Service (SCS) so that each height gauge comes with a SCS calibration certificate provided free of charge. The negligible temperature variation (20C 01) along with the use of high-precision step gauges allow the lowest uncertainty of MEASUREMENT to be achieved during the calibration process. As a first step all values needed for automatic compensation for the systematic errors of the finished height gauge through Computer Aided Accuracy (CAA) are captured. Once conveniently calculated each single compensation value is then stored in the tool memory so as to allow the automatic calculation of the measured values during calibration. Finally the relevant calibration certificate is issued based on the values obtained during a new series of MEASUREMENTs taken at another measuring station also equipped with step gauges. The applied calibration procedure together with the SCS based certification ensure that every TESA height gauge is traceable to national standards. Height Gauges One of TESAs Strengths TESA offers the largest range of height gauges for reliable one or two-dimensional MEASUREMENTs. End users can choose the most suitable model not only according to the requirements of their metrology applications but also according to their financial resources. This wide range goes from the simple height and scribing gauge to the motorised vertical column suitable for high-precision MEASUREMENTs in two coordinate directions. TESA
