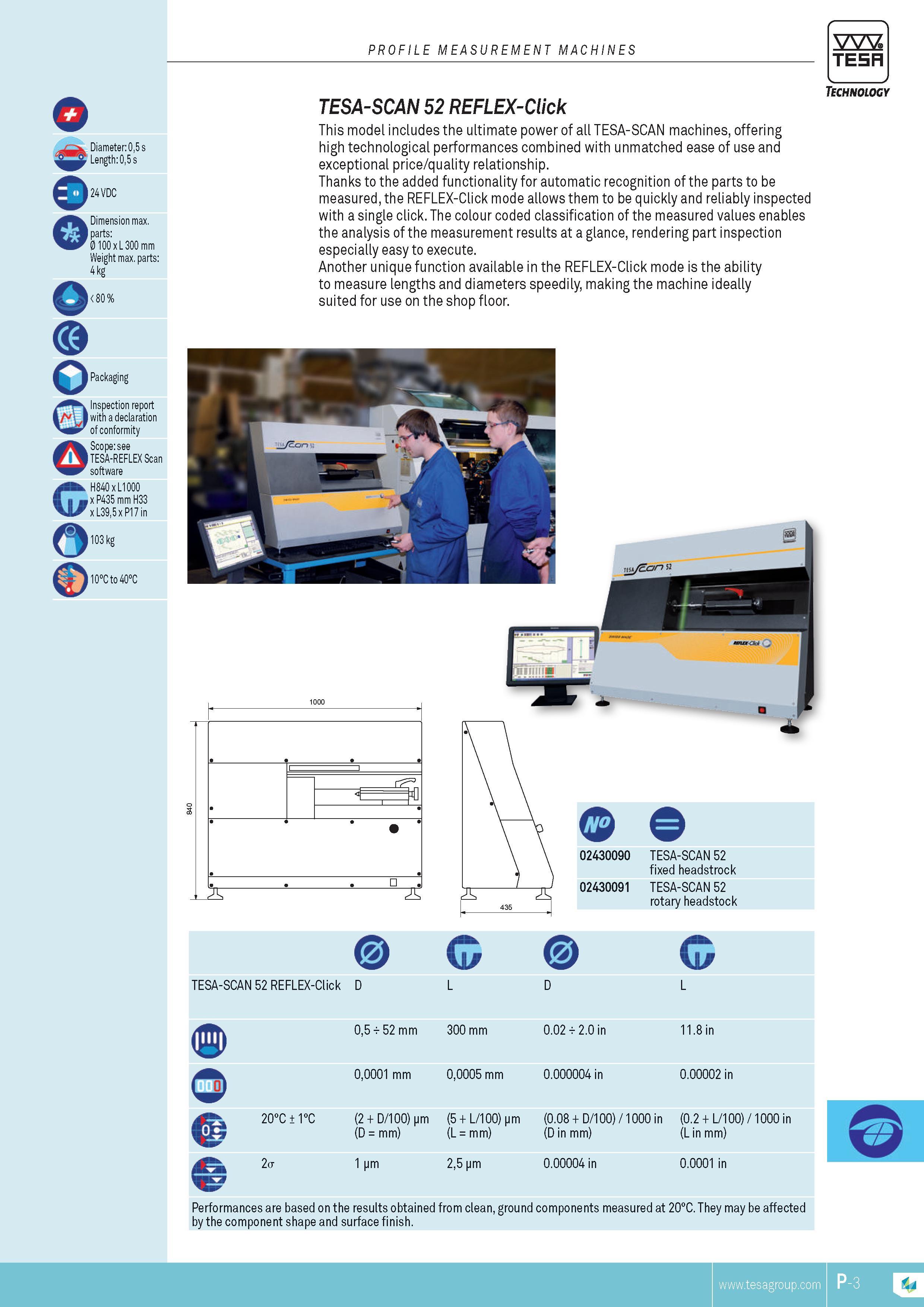

Diameter 05 s Length:05s 24 VDC Dimension max. parts 0 100 x L 300 mm Weight max. parts 4 kg Inspection report with a declaration of conformity Scope:see yl TESA-REFLEX Scan software G H840xL1000 x P435 mm H33 x L395 x P17 in 103 kg 10C to 40C PROFILE MEASUREMENT MACHINES TESA-SCAN 52 REFLEX-Click This model includes the ultimate power of all TESA-SCAN machines offering high technological performances combined with unmatched ease of use and exceptional price quality relationship. Thanks to the added functionality for automatic recognition of the parts to be measured the REFLEX-Click mode allows them to be quickly and reliably inspected with a single click. The colour coded classification of the measured values enables the analysis of the MEASUREMENT results at a glance rendering part inspection especially easy to execute. Another unique function available in the REFLEX-Click mode is the ability to measure lengths and diameters speedily making the machine ideally suited for use on the shop floor. TESA Technology 02430090 TESA-SCAN 52 fixed headstrock 02430091 TESA-SCAN 52 rotary headstock G G TESA-SCAN 52 REFLEX-Click D 20C1C 2a 05 t 52 mm 300 mm 0.02 t 2.0 in 00001 mm 00005 mm 0.000004 in 11.8 in 0.00002 in (2 + D 100) pm (5 + L 100) pm (0.08 + D 100) 1000 in (0.2 + L 100) 1000 in (D mm) (L mm) (D in mm) (L in mm) 1 pm 25 pm 0.00004 in 0.0001 in Performances are based on the results obtained from clean ground components measured at 20C. They may be affected by the component shape and surface finish. L D L
