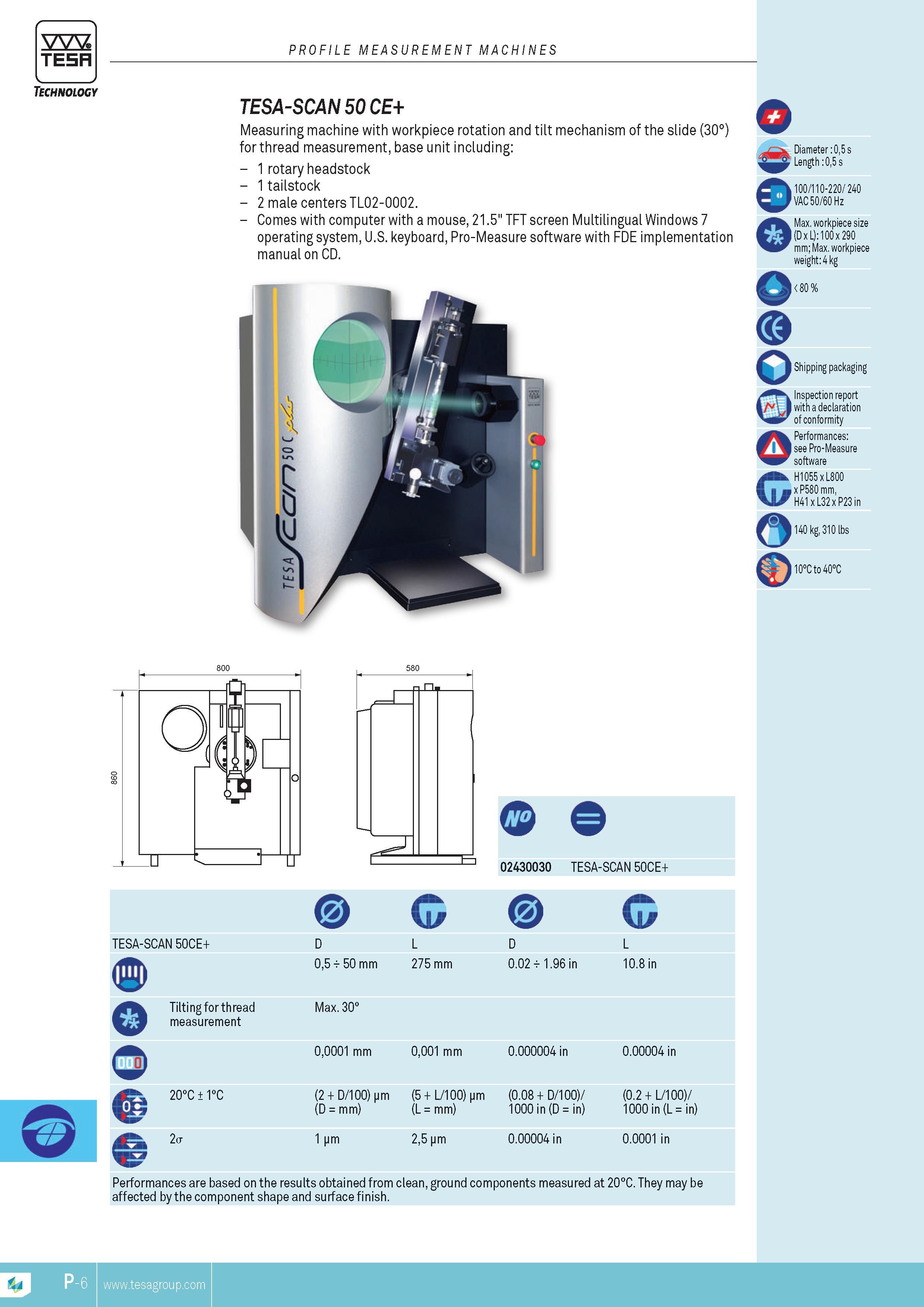

TESA Technology PROFILE MEASUREMENT MACHINES TESA-SCAN 50 CE+ Measuring machine with workpiece rotation and tilt mechanism of the slide (30) for thread MEASUREMENT base unit including 1 rotary headstock 1 tailstock 2 male centers TL02-0002. Comes with computer with a mouse 21.5" TFT screen Multilingual Windows 7 operating system U.S. keyboard Pro-Measure software with FDE implementation manual on CD. p i o c o % Diameter 05 s Length 05 s 100 110-220 240 VAC 50 60 Hz Max. workpiece size (D x L) 100 x 290 mm; Max. workpiece weight 4 kg Shipping packaging Inspection report with a declaration of conformity Performances see Pro-Measure software H1055xL800 x P580 mm H41 xL32xP23in 140 kg 310 lbs 10C to 40C TESA-SCAN 50CE+ Q Tilting for thread MEASUREMENT 20C1C 2a JL G D L 05 t 50 mm 275 mm Max. 30 00001 mm 0001 mm O 02430030 TESA-SCAN 50CE+ D 0.02 t 1.96 in 0.000004 in (2 + D 100) pm (5 + L 100) pm (0.08 + D 100) (D mm) (L mm) 1000 in (D in) 1 pm 25 pm 0.00004 in L 10.8 in 0.00004 in (0.2 + L 100) 1000 in (L in) 0.0001 in Performances are based on the results obtained from clean ground components measured at 20C. They may be affected by the component shape and surface finish. TESA 580
