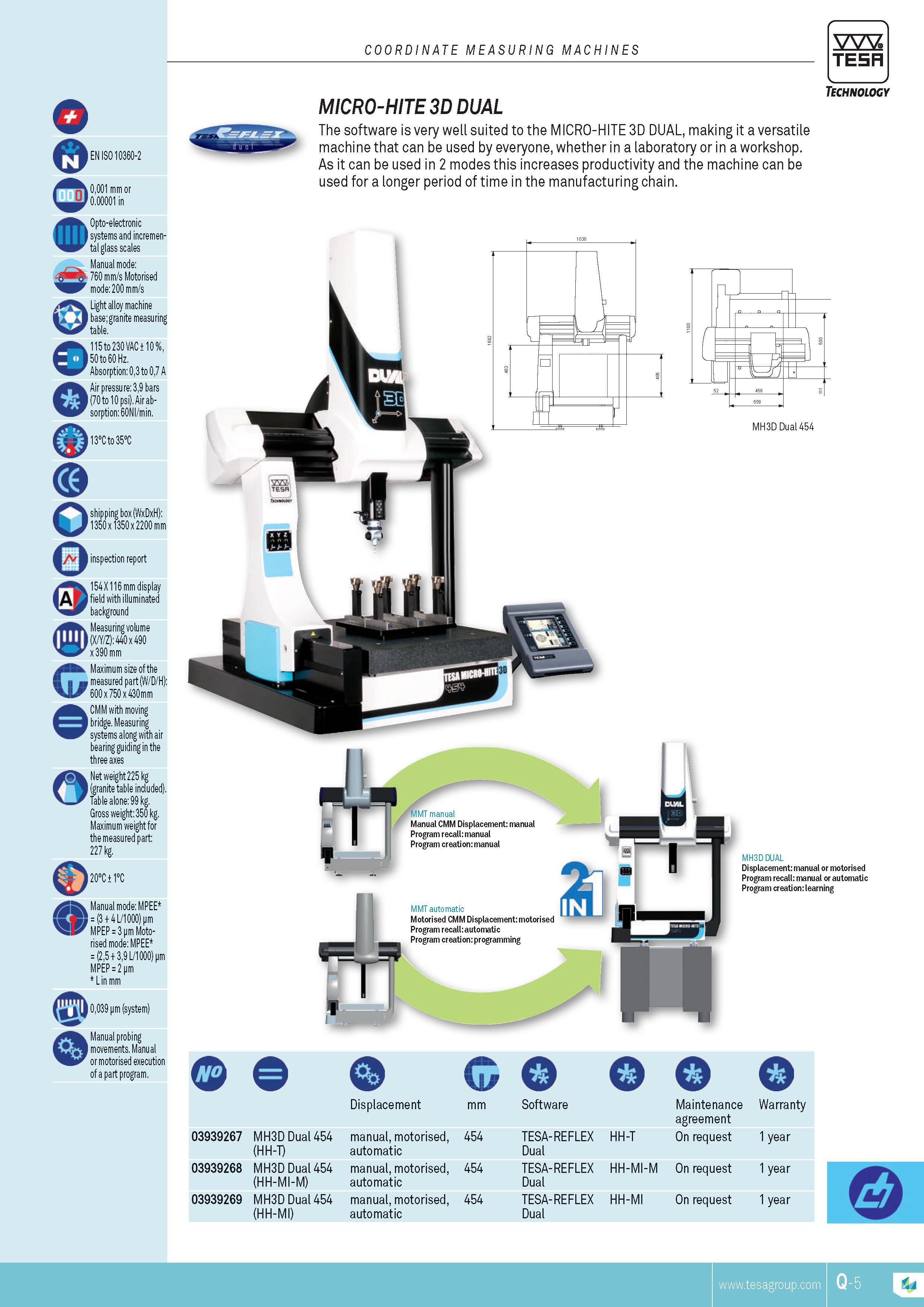

coordinate measuring machines TESA o EN ISO 10360-2 Q IP 0 G O 0001 mm or 0.00001 in Opto-electronic systems and incremental glass scales Manual mode 760 mm s Motorised mode 200 mm s Light alloy machine base; granite measuring table. 115 to 230 VAC 10 % 50 to 60 Hz. Absorption 03 to 07 A Air pressure 39 bars (70 to 10 psi). Air absorption 60NI min. 13C to 35C 1350 x 1350 x 2200 mm inspection report 154 X 116 mm display field with illuminated background Measuring volume (X Y Z) 440 x 490 x 390 mm Maximum size of the measured part (W D H) 600 x 750 x 430mm CMM with moving bridge. Measuring systems along with air bearing guiding in the three axes .Net weight 225 kg (granite table included). Table alone 99 kg. Gross weight 350 kg. Maximum weight for the measured part 227 kg. 20C 1C Manual mode MPEE (3 + 4 L 1000) pm MpEP 3 pm Motorised mode MPEE (25 + 39 L 1000) pm mPEp 2 pm L in mm 0039 pm (system) Manual probing movements. Manual or motorised execution of a part program. MICRO-HITE 3D DUAL The software is very well suited to the MICRO-HITE 3D DUAL making it a versatile machine that can be used by everyone whether in a laboratory or in a workshop. As it can be used in 2 modes this increases productivity and the machine can be used for a longer period of time in the manufacturing chain. Technology MMT manual Manual CMM Displacement manual Program recall manual Program creation manual MMT automatic Motorised CMM Displacement motorised Program recall:automatic Program creation programming MH3D DUAL Displacement manual or motorised Program recall manual or automatic Program creation learning Displacement mm Software 03939267 MH3D Dual 454 (HH-T) 03939268 MH3D Dual 454 (HH-MI-M) 03939269 MH3D Dual 454 (HH-MI) manual motorised 454 automatic manual motorised 454 automatic manual motorised 454 automatic Maintenance Warranty agreement On request 1 year TESA-REFLEX HH-T Dual TESA-REFLEX HH-MI-M On request 1 year Dual TESA-REFLEX HH-MI On request 1 year Dual Q
