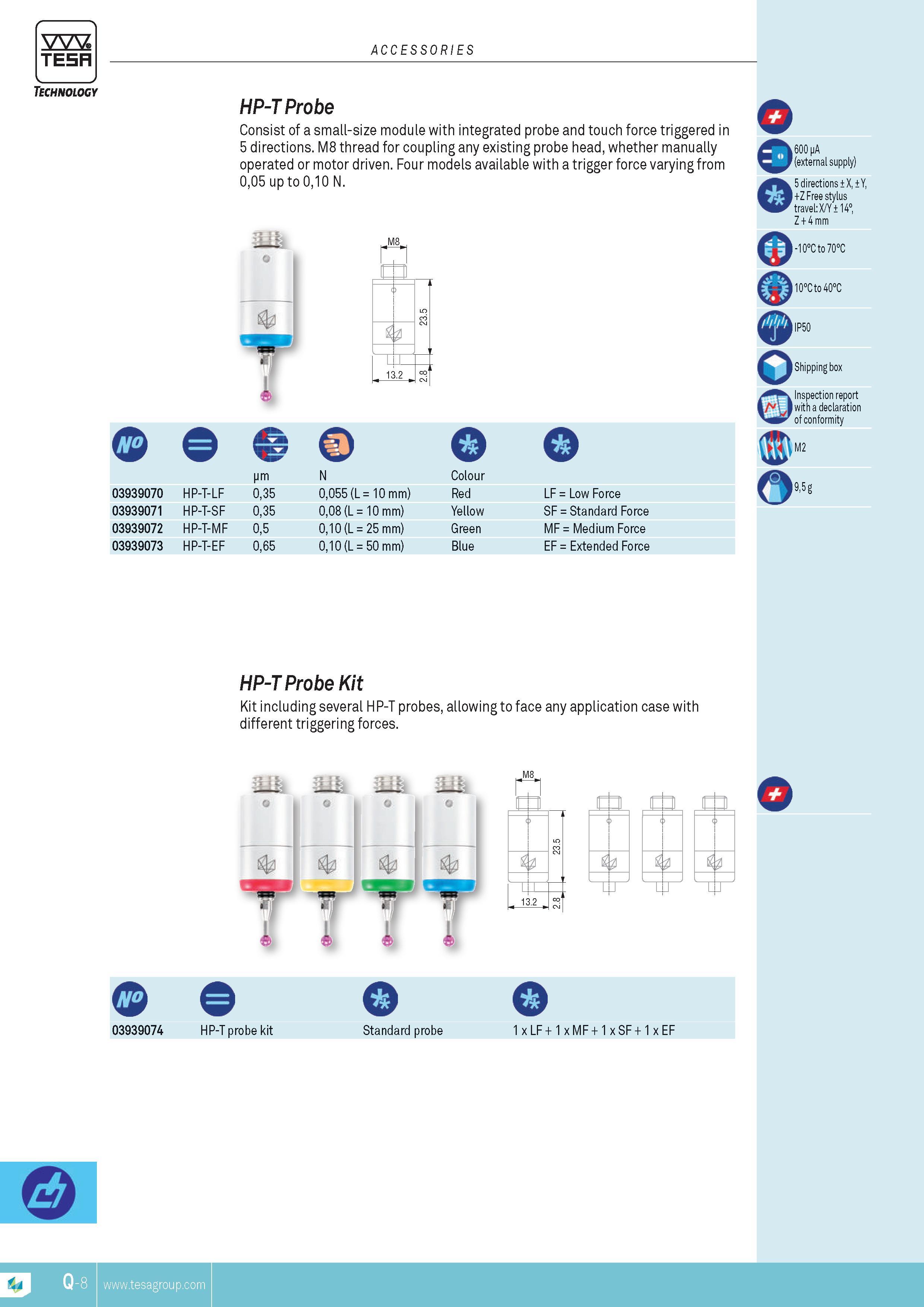

TESA ACCESSORIES Technology Hp-T probe Consist of a small-size module with integrated probe and touch force triggered in 5 directions. M8 thread for coupling any existing probe head whether manually operated or motor driven. Four models available with a trigger force varying from 005 up to 010 N. M8 c LO CO CM i t 1 i 1 .2 CO cm Q Q pm N Colour 03939070 HP-T-LF 035 0055 (L 10 mm) Red LF Low Force 03939071 HP-T-SF 035 008 (L 10 mm) Yellow SF Standard Force 03939072 HP-T-MF 05 010 (L 25 mm) Green MF Medium Force 03939073 HP-T-EF 065 010 (L 50 mm) Blue EF Extended Force o 600 pA (external supply) 5 directions X Y +Z Free stylus travel X Y 14 Z + 4 mm -10C to70C 10Cto 40C Shipping box Inspection report v' v with a declaration of conformity M2 95 g Hp-T probe Kit Kit including several HP-T probes allowing to face any application case with different triggering forces. lo CO K b i i i .2 03 1 L J c L J c A t L J M8 Q Q 03939074 HP-T probe kit Standard probe 1 x LF + 1 x MF + 1 x SF + 1 x EF Q-8 TESA
