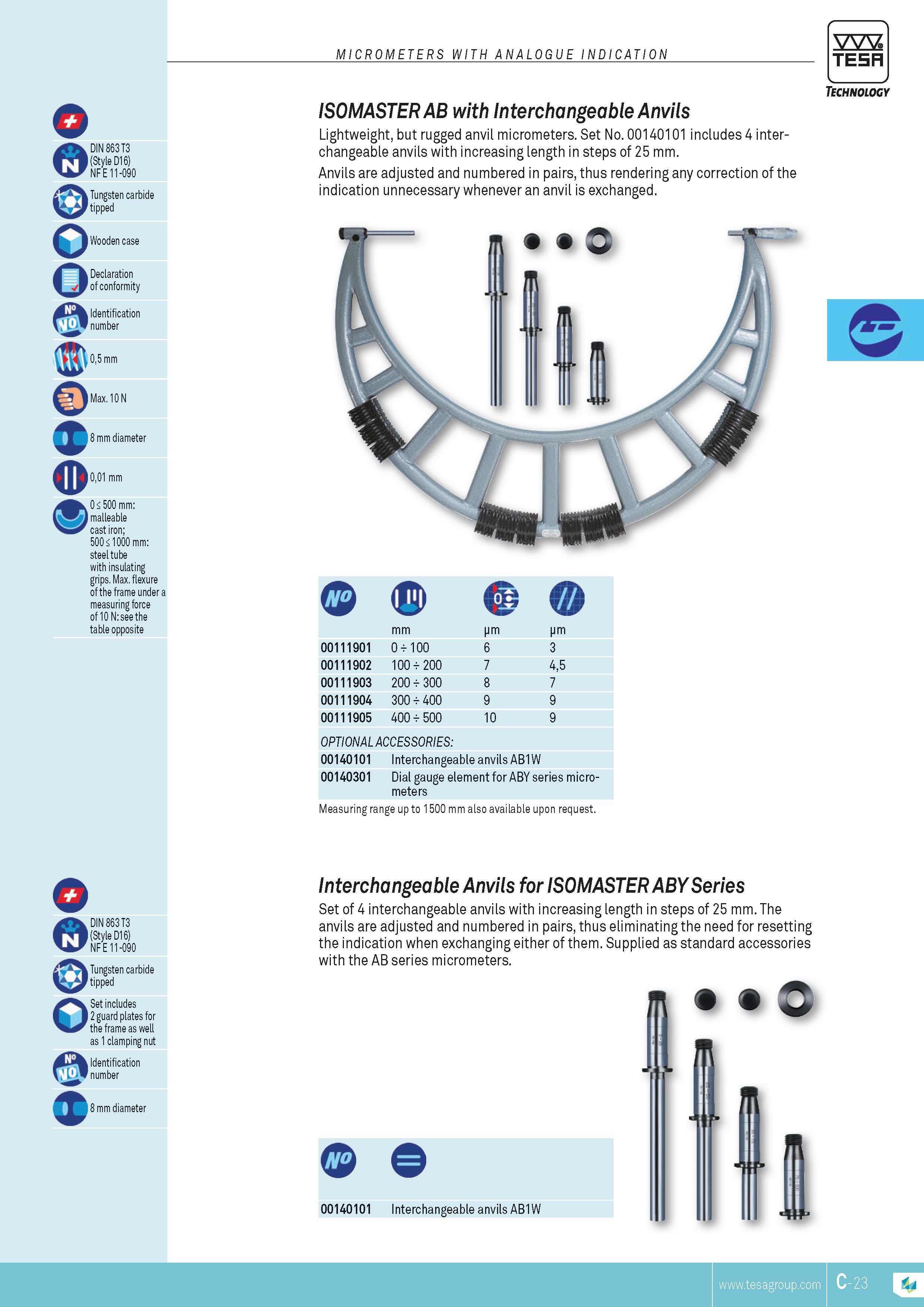

MICROMETERS WITH ANALOGUE INDICATION ISOMASTER AB with Interchangeable Anvils Lightweight but rugged anvil micrometers. Set No. 00140101 includes 4 interchangeable anvils with increasing length in steps of 25 mm. Anvils are adjusted and numbered in pairs thus rendering any correction of the indication unnecessary whenever an anvil is exchanged. 0 00111901 00111902 00111903 00111904 00111905 mm 0 100 100 200 300 400 200 300 400 500 pm 6 7 8 9 10 pm 3 45 7 9 9 OPTIONAL ACCESSORIES 00140101 Interchangeable anvils AB1W 00140301 Dial gauge element for ABY series micro- meters Measuring range up to 1500 mm also available upon request. TESA Technology DIN 863 T3 (Style D16) NFE11-090 Tungsten carbide tipped Set includes 2 guard plates for the frame as well as 1 clamping nut Identification number 8 mm diameter Interchangeable Anvils for ISOMASTER ABY Series Set of 4 interchangeable anvils with increasing length in steps of 25 mm. The anvils are adjusted and numbered in pairs thus eliminating the need for resetting the indication when exchanging either of them. Supplied as standard accessories with the AB series micrometers. 00140101 Interchangeable anvils AB1W TESA o o DIN 863 T3 (Style D16) NF E 11-090 Tungsten carbide tipped Wooden case Declaration of conformity Identification number 05 mm Max. 10 N 8 mm diameter o 001 mm 0 500 mm malleable cast iron; 500 1000 mm steel tube with insulating grips. Max. flexure of the frame under a measuring force of 10 N:see the table opposite
