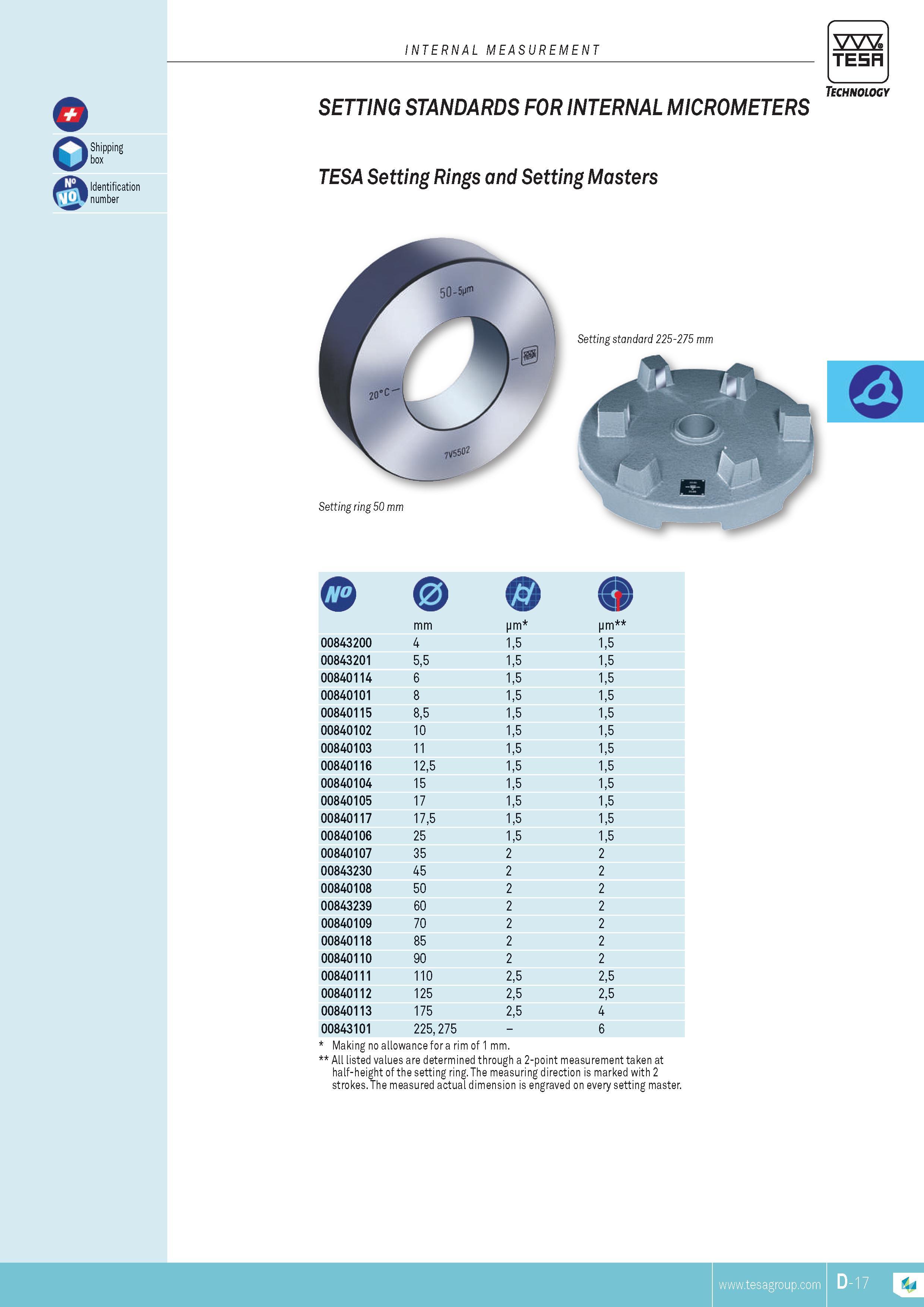

SETTING STANDARDS FOR INTERNAL MICROMETERS TESA Setting Rings and Setting Masters TESA Technology Setting ring 50 mm 00843200 00843201 00840114 00840101 00840115 00840102 00840103 00840116 00840104 00840105 00840117 00840106 00840107 00843230 00840108 00843239 00840109 00840118 00840110 00840111 00840112 00840113 00843101 mm 4 5.5 6 8 8.5 10 11 12.5 15 17 17.5 25 35 45 50 60 70 85 90 110 125 175 225 275 pm 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 2 2 2 2 2 2 2 2.5 2.5 2.5 pm 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 2 2 2 2 2 2 2 2.5 2.5 4 6 Making no allowance for a rim of 1 mm. All listed values are determined through a 2-point MEASUREMENT taken at half-height of the setting ring. The measuring direction is marked with 2 strokes. The measured actual dimension is engraved on every setting master. TESA Shipping box M Identification number INTERNAL MEASUREMENT
