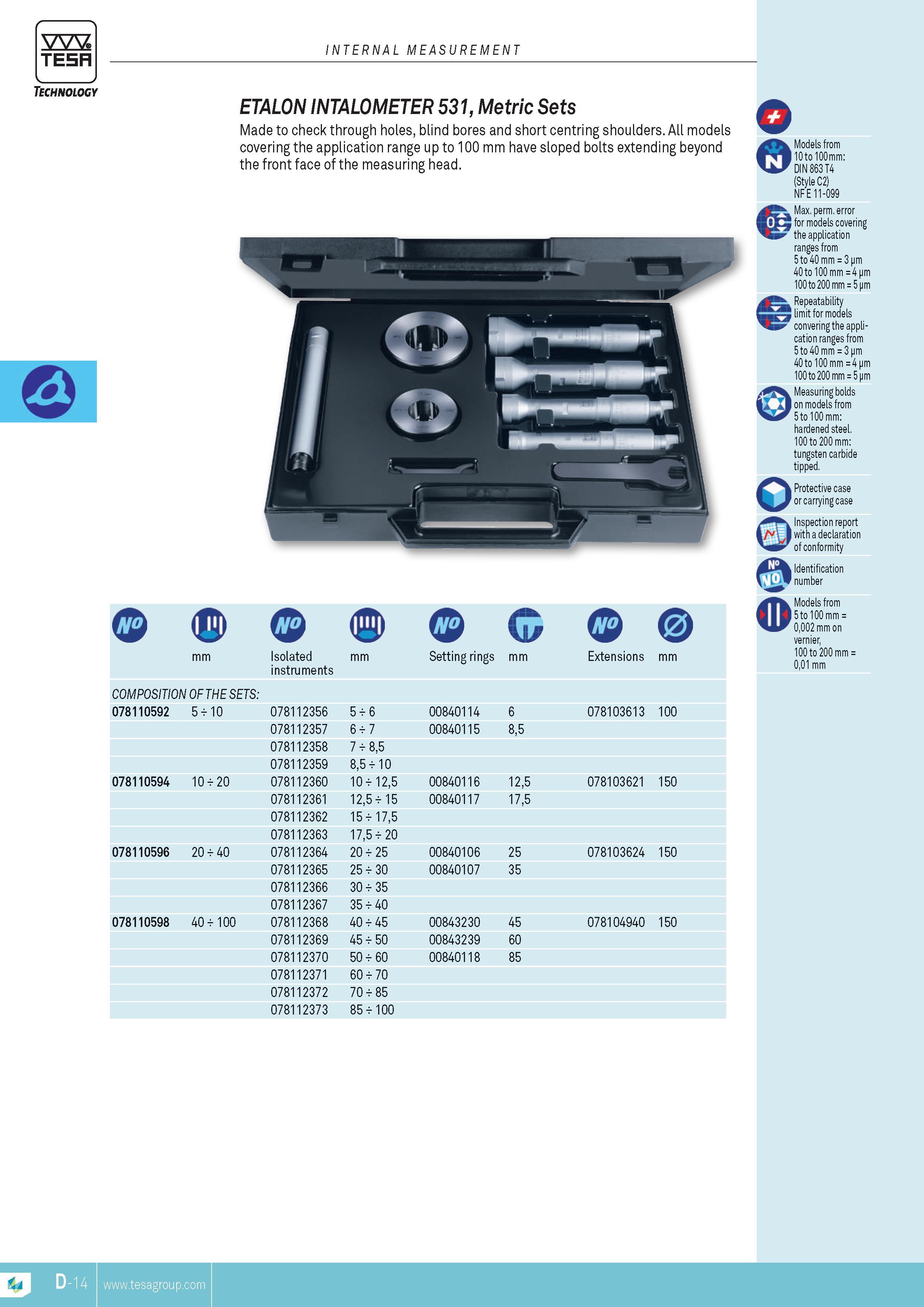

ETALON INTALOMETER 531 Metric Sets Made to check through holes blind bores and short centring shoulders. All models covering the application range up to 100 mm have sloped bolts extending beyond the front face of the measuring head. Models from 10 to 100mm DIN 863 T4 (Style C2) NFE 11-099 Max. perm. error for models covering the application ranges from 5 to 40 mm 3 pm 40 to 100 mm 4 pm 100 to 200 mm 5 pm Repeatability limit for models convering the application ranges from 5 to 40 mm 3 pm 40 to 100 mm 4 pm 100 to 200 mm 5 pm Measuring bolds on models from 5 to 100 mm hardened steel. 100 to 200 mm tungsten carbide tipped. Protective case or carrying case Inspection report i v J with a declaration of conformity 0 mm Isolated instruments mm Setting rings mm Extensions mm COMPOSITION OF THE SETS 078110592 5 10 078112356 5 6 00840114 6 078103613 100 078112357 6 7 00840115 85 078112358 7 85 078112359 85 10 078110594 10 20 078112360 10 125 00840116 125 078103621 150 078112361 125 15 00840117 175 078112362 15 175 078112363 175 20 078110596 20 40 078112364 20 25 00840106 25 078103624 150 078112365 25 30 00840107 35 078112366 30 35 078112367 35 40 078110598 40 100 078112368 40 45 00843230 45 078104940 150 078112369 45 50 00843239 60 078112370 50 60 00840118 85 078112371 60 70 078112372 70 85 078112373 85 100 Identification number Models from 5 to 100 mm 0002 mm on vernier 100 to 200 mm 001 mm TESA TESA INTERNAL MEASUREMENT Technology
