Copy Mills Widia M200 Series iC10 Screw-On End Mills Double-sided, eight cutting edges Anti-rotation feature for better stability and higher feed r

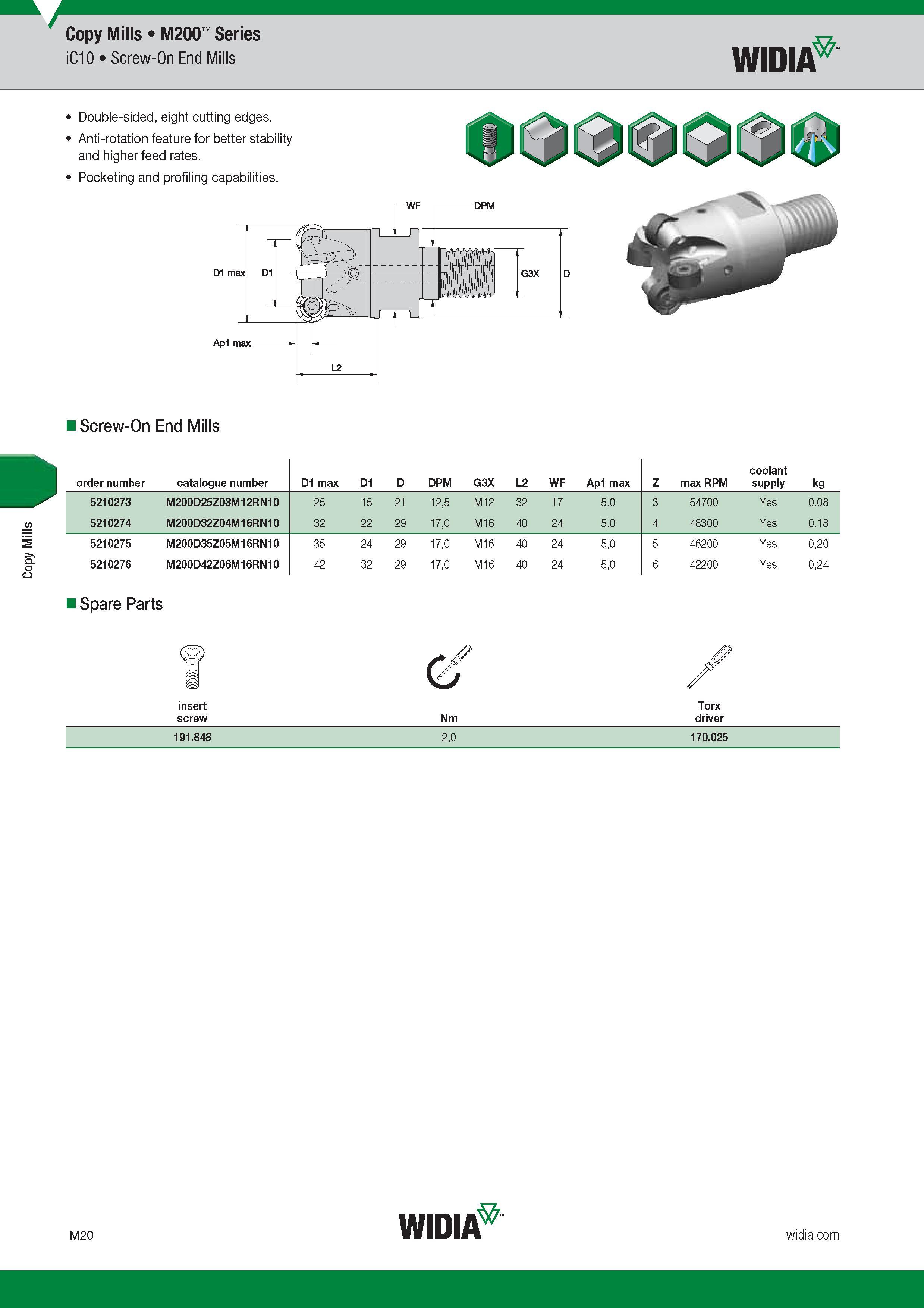

Copy Mills Widia M200 Series iC10 Screw-On End Mills Double-sided, eight cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities. Screw-On End Mills order number Catalogue number Обозначение инструмента по каталогу D1 max D1 D DPM G3X L2 WF Ap1 max Z max RPM coolant supply kg 5210273 M200D25Z03M12RN10 25 15 21 12,5 M12 32 17 5,0 3 54700 Yes 0,08 5210274 M200D32Z04M16RN10 32 22 29 17,0 M16 40 24 5,0 4 48300 Yes 0,18 5210275 M200D35Z05M16RN10 35 24 29 17,0 M16 40 24 5,0 5 46200 Yes 0,20 5210276 M200D42Z06M16RN10 42 32 29 17,0 M16 40 24 5,0 6 42200 Yes 0,24 Spare Parts insert screw G Nm Torx driver 191.848 2,0 170.025 M20 Widia Copy Mills
