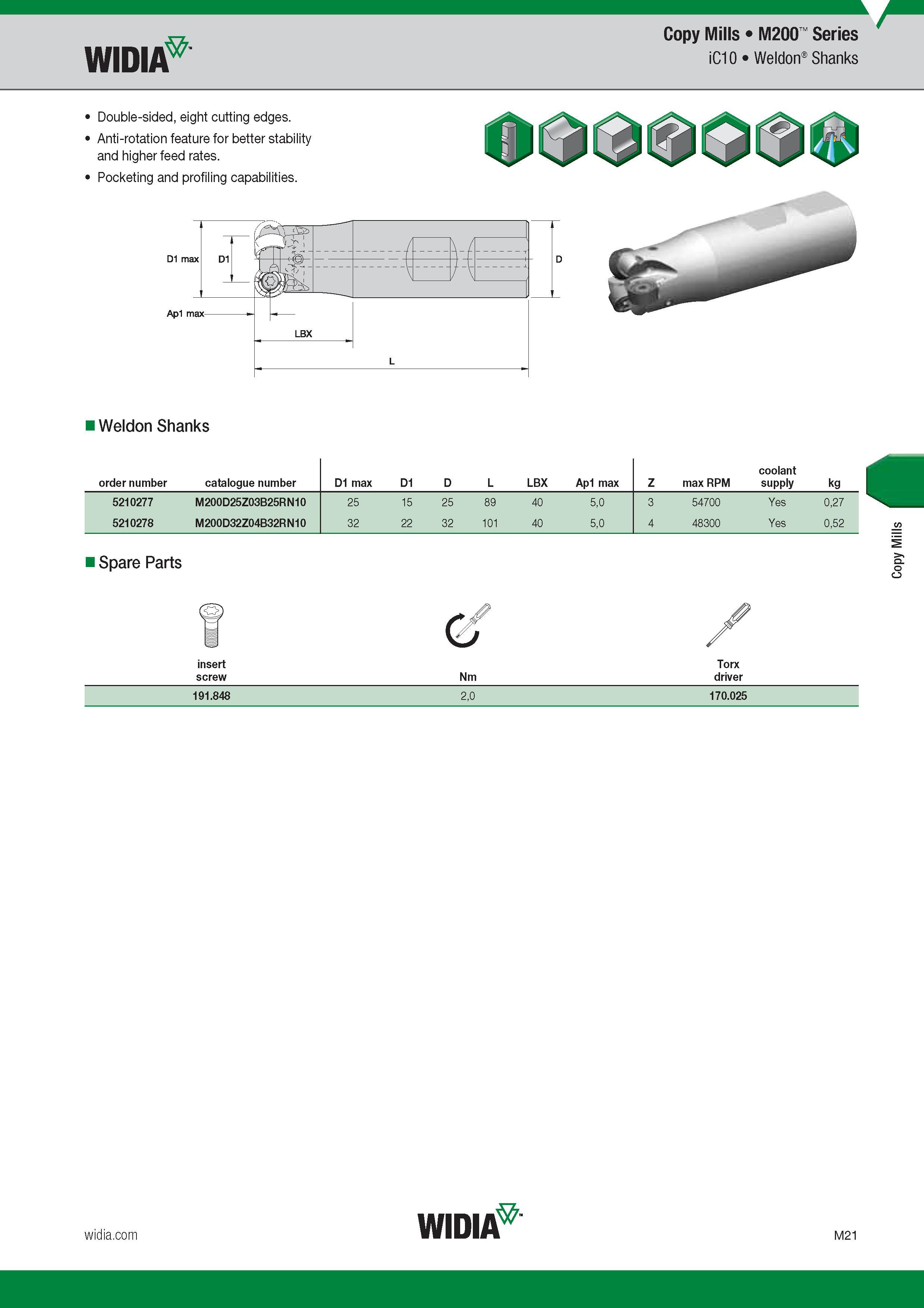

Copy Mills Widia M200 Series iC10 Weldon Shanks Double-sided, eight cutting edges Anti-rotation feature for better stability and higher feed rates

Copy Mills Widia M200 Series iC10 Weldon Shanks Double-sided, eight cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities. Weldon Shanks order number Catalogue number Обозначение инструмента по каталогу D1 max D1 D L LBX Ap1 max Z max RPM coolant supply kg 5210277 M200D25Z03B25RN10 25 15 25 89 40 5,0 3 54700 Yes 0,27 5210278 M200D32Z04B32RN10 32 22 32 101 40 5,0 4 48300 Yes 0,52 Spare Parts a insert screw Nm Torx driver 191.848 2,0 170.025 Widia M21 Copy Mills
