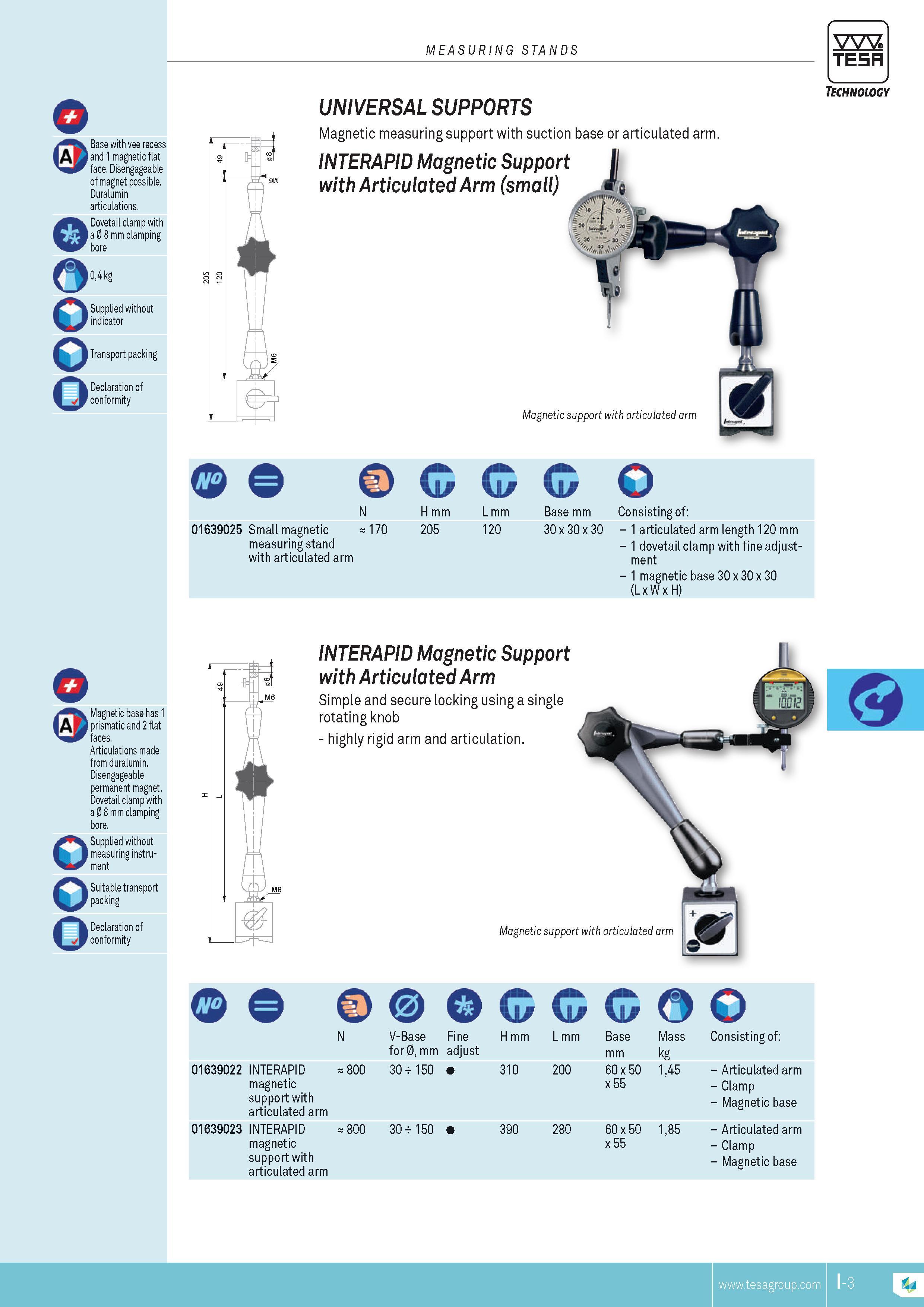

UNIVERSAL SUPPORTS Magnetic measuring support with suction base or articulated arm INTERAPID Magnetic Support with Articulated Arm (small) Technology

UNIVERSAL SUPPORTS Magnetic measuring support with suction base or articulated arm. INTERAPID Magnetic Support with Articulated Arm (small) Technology Magnetic support with articulated arm N 01639025 Small magnetic 170 measuring stand with articulated arm G G G H mm L mm Base mm Consisting of 205 120 30 x 30 x 30 1 articulated arm length 120 mm 1 dovetail clamp with fine adjustment 1 magnetic base 30 x 30 x 30 (L x W x H) Magnetic base has 1 A prismatic and 2 flat faces. Articulations made from duralumin. o permanent magnet. Dovetail clamp with a 0 8 mm clamping bore. Supplied without measuring instrument Suitable transport packing Declaration of conformity INTERAPID Magnetic Support with Articulated Arm Simple and secure locking using a single rotating knob highly rigid arm and articulation. Magnetic support with articulated arm N 01639022 INTERAPID 800 magnetic support with articulated arm 01639023 INTERAPID 800 magnetic support with articulated arm V-Base Fine for 0 mm adjust 30t150 30t150 H mm L mm 310 390 200 280 Base Mass mm kg 60 x 50 145 x 55 60 x 50 185 x 55 Consisting of Articulated arm Clamp Magnetic base Articulated arm Clamp Magnetic base TESA I-3 M6 M8 Base with vee recess IA and 1 magnetic flat face. Disengageable of magnet possible. Duralumin articulations. Dovetail clamp with a 0 8 mm clamping Mir bore kg Supplied without indicator Transport packing Declaration of conformity MEASURING STANDS TESA
