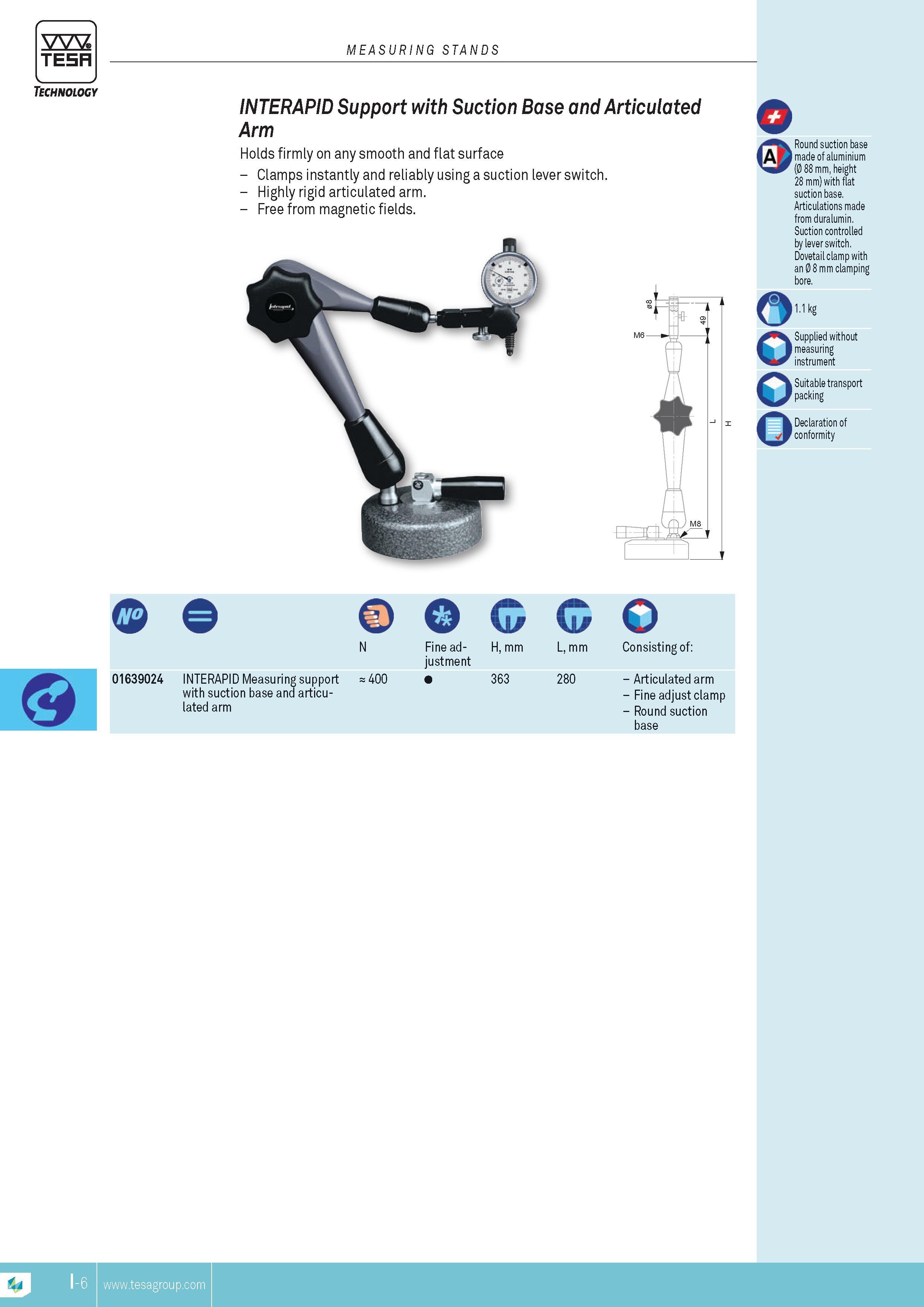

TESA measuring stands INTERAPID Support with Suction Base and Articulated Arm Holds firmly on any smooth and flat surface Clamps instantly and reliabl

TESA measuring stands INTERAPID Support with Suction Base and Articulated Arm Holds firmly on any smooth and flat surface Clamps instantly and reliably using a suction lever switch. Highly rigid articulated arm. Free from magnetic fields. o 0 o Round suction base made of aluminium (0 88 mm height 28 mm) with flat suction base. Articulations made from duralumin. Suction controlled by lever switch. Dovetail clamp with an 0 8 mm clamping bore. 1.1 kg Supplied without measuring instrument Suitable transport packing Declaration of conformity C G N Fine adjustment H mm L mm Consisting of 01639024 INTERAPID Measuring support with suction base and articulated arm s 400 363 280 Articulated arm Fine adjust clamp Round suction base I-6 TESA Technology
