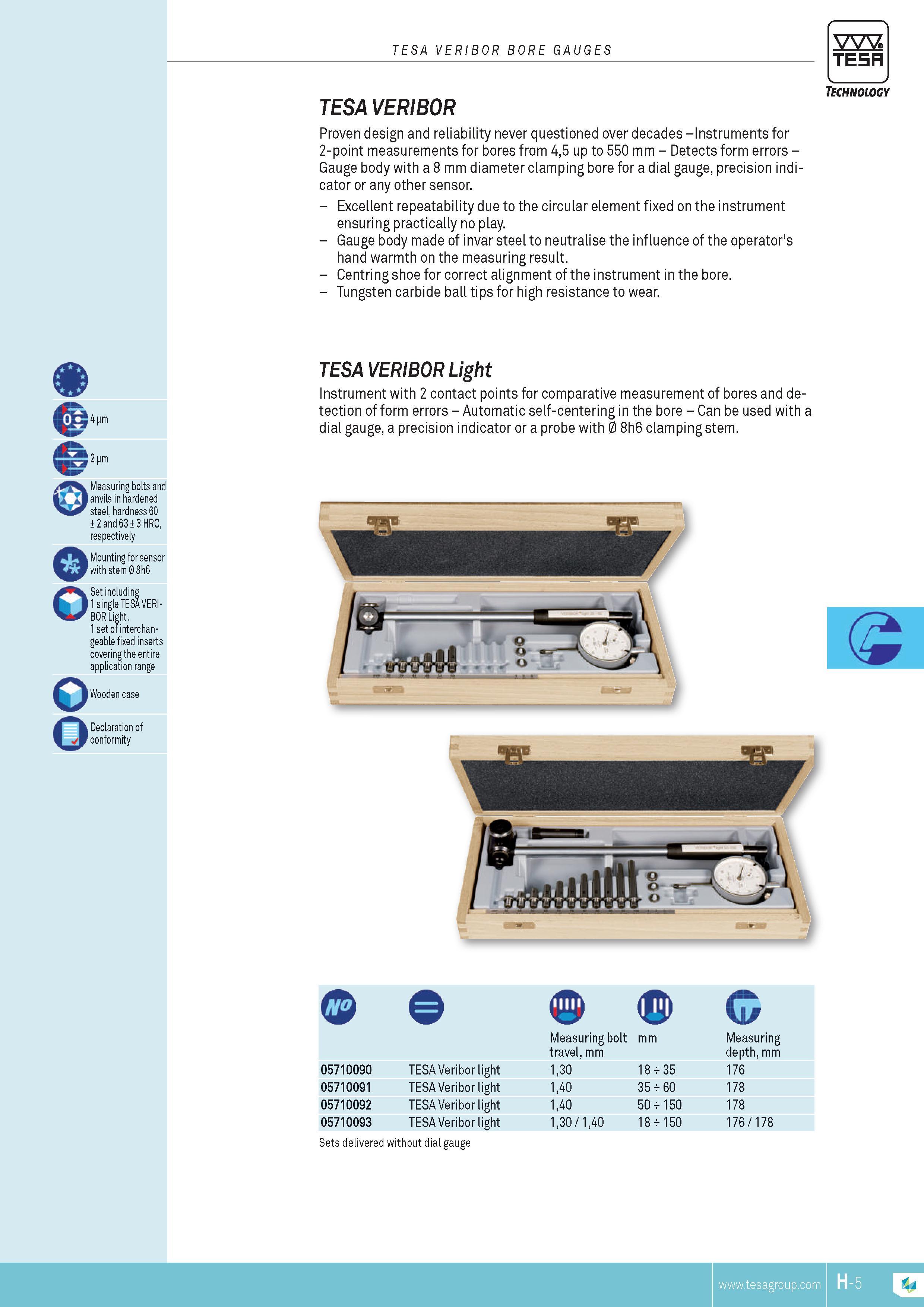

VERIBOR BORE GAUGES TESA Proven design and reliability never questioned over decades -instruments for 2-point MEASUREMENTs for bores from 45 up to 550 mm Detects form errors -Gauge body with a 8 mm diameter clamping bore for a dial gauge precision indicator or any other sensor. Excellent repeatability due to the circular element fixed on the instrument ensuring practically no play. Gauge body made of invar steel to neutralise the influence of the operator's hand warmth on the measuring result. Centring shoe for correct alignment of the instrument in the bore. Tungsten carbide ball tips for high resistance to wear. 4 pm 2 pm Measuring bolts and anvils in hardened steel hardness 60 2 and 63 3 HRC respectively Mounting for sensor with stem 0 8h6 Set including 1 single TESA VERIBOR Light. 1 set of interchangeable fixed inserts covering the entire application range Wooden case Declaration of conformity TESA VERIBOR Light Instrument with 2 contact points for comparative MEASUREMENT of bores and detection of form errors Automatic self-centering in the bore Can be used with a dial gauge a precision indicator or a probe with 0 8h6 clamping stem. & 05710090 05710091 05710092 05710093 TESA Veribor light TESA Veribor light TESA Veribor light TESA Veribor light c Measuring bolt travel mm 1.30 1.40 1.40 1.30 140 35 60 150 150 Measuring depth mm 176 178 178 176 178 mm Sets delivered without dial gauge TESA Technology TESA VERIBOR
