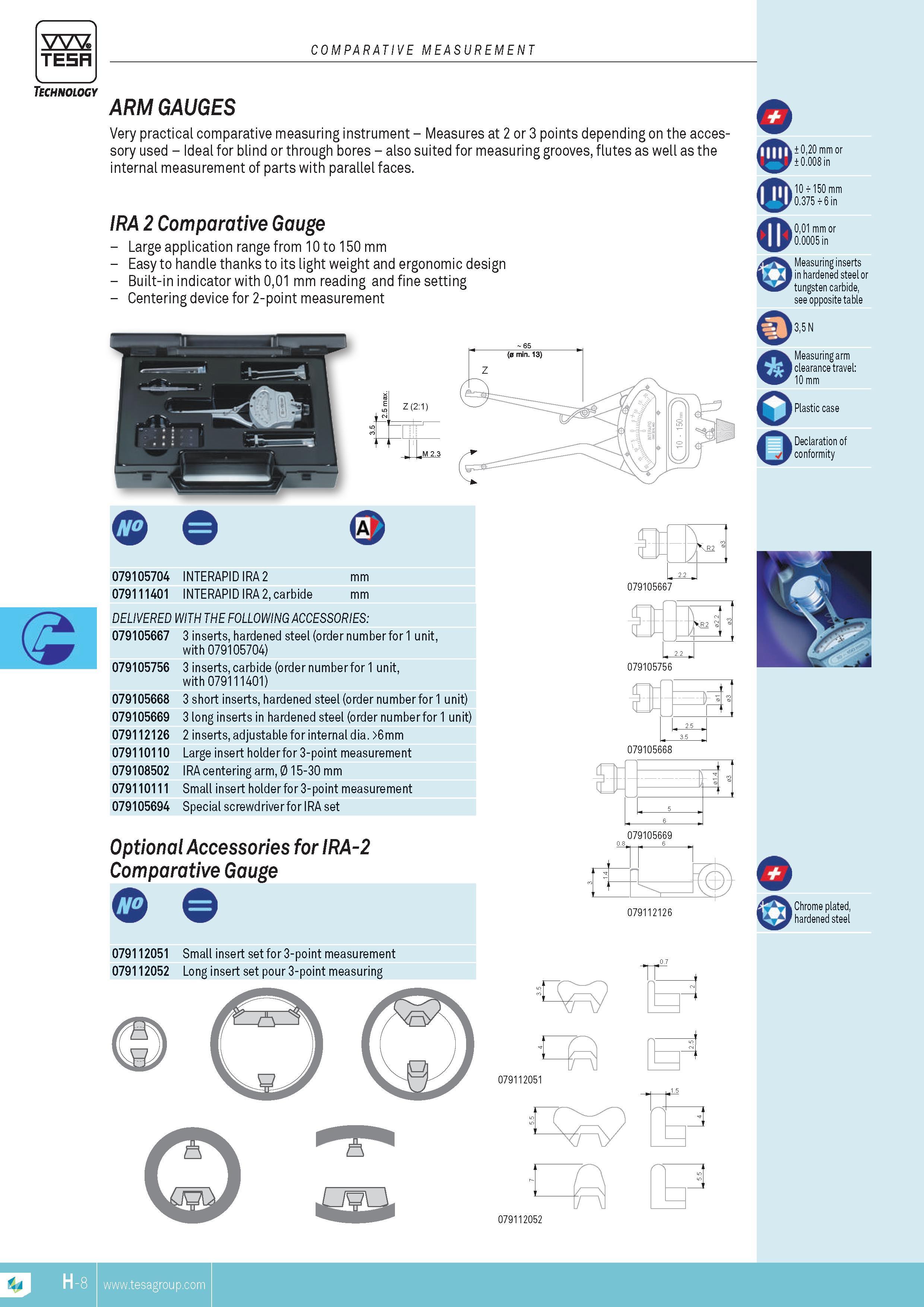

Very practical comparative measuring instrument Measures at 2 or 3 points depending on the accessory used Ideal for blind or through bores also suited

Very practical comparative measuring instrument Measures at 2 or 3 points depending on the accessory used Ideal for blind or through bores also suited for measuring grooves flutes as well as the internal MEASUREMENT of parts with parallel faces. IRA 2 Comparative Gauge Large application range from 10 to 150 mm Easy to handle thanks to its light weight and ergonomic design Built-in indicator with 001 mm reading and fine setting Centering device for 2-point MEASUREMENT 079105704 INTERAPID IRA 2 mm 079111401 INTERAPID IRA 2 carbide mm delivered with the following accessories 079105667 3 inserts hardened steel (order number for 1 unit with 079105704) 079105756 3 inserts carbide (order number for 1 unit with 079111401) 079105668 3 short inserts hardened steel (order number for 1 unit) 079105669 3 long inserts in hardened steel (order number for 1 unit) 079112126 2 inserts adjustable for internal dia. 6mm 079110110 Large insert holder for 3-point MEASUREMENT 079108502 IRA centering arm 0 15-30 mm 079110111 Small insert holder for 3-point MEASUREMENT 079105694 Special screwdriver for IRA set optional Accessories for IRA-2 Comparative Gauge O 079105667 i M 2.2 079105756 H o 2.5 3.5 ( 079105668 j -J i i 6 079105669 0.8 6 o 020 mm or 0.008 in 10 150 mm 0.375 6 in 001 mm or 0.0005 in o Measuring inserts in hardened steel or tungsten carbide see opposite table 35 N Measuring arm clearance travel 10 mm Plastic case Declaration of conformity 079112126 Chrome plated hardened steel 079112051 Small insert set for 3-point MEASUREMENT 079112052 Long insert set pour 3-point measuring 079112051 H-8 TESA R2 TESA COMPARATIVE MEASUREMENT Technology & arm gauges
