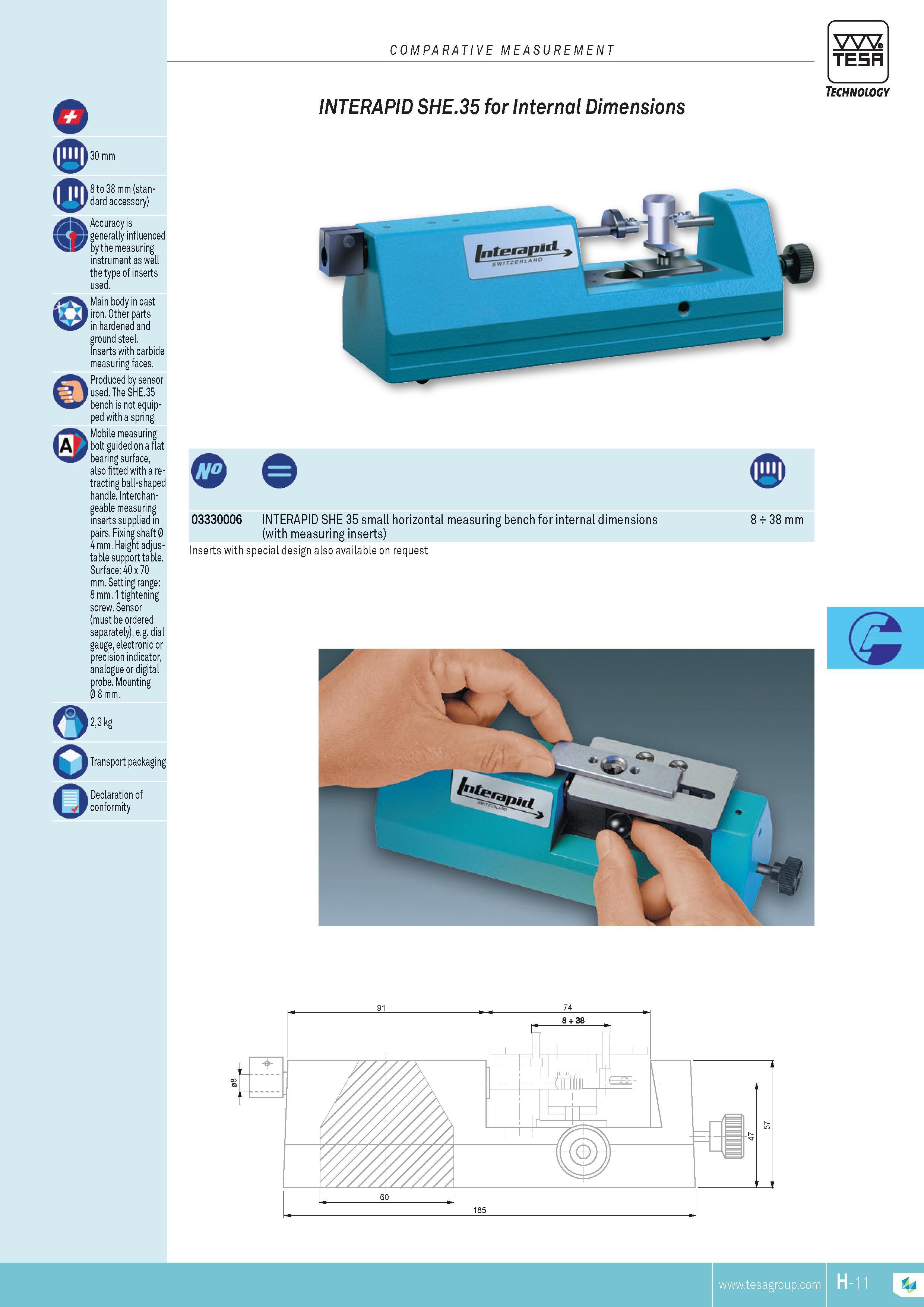

Accuracy is generally influenced by the measuring 30 mm 8 to 38 mm (standard accessory) instrument as well the type of inserts used. Main body in cast iron. Other parts in hardened and ground steel. Inserts with carbide measuring faces. Produced by sensor used.TheSHE.35 bench is not equipped with a spring. Mobile measuring bolt guided on a flat bearing surface also fitted with a retracting ball-shaped handle. Interchangeable measuring inserts supplied in pairs. Fixing shaft 0 4 mm. Height adjustable support table. Surface 40 x 70 mm. Setting range 8 mm. 1 tightening screw. Sensor (must be ordered separately) e.g. dial gauge electronic or precision indicator analogue or digital probe. Mounting 0 8 mm. 23 kg o Transport packaging Declaration of conformity TESA INTERApID SHE.35 for Internal Dimensions Technology 03330006 INTERAPID SHE 35 small horizontal measuring bench for internal dimensions (with measuring inserts) Inserts with special design also available on request g) 8 38 mm & TESA H- comparative MEASUREMENT o
