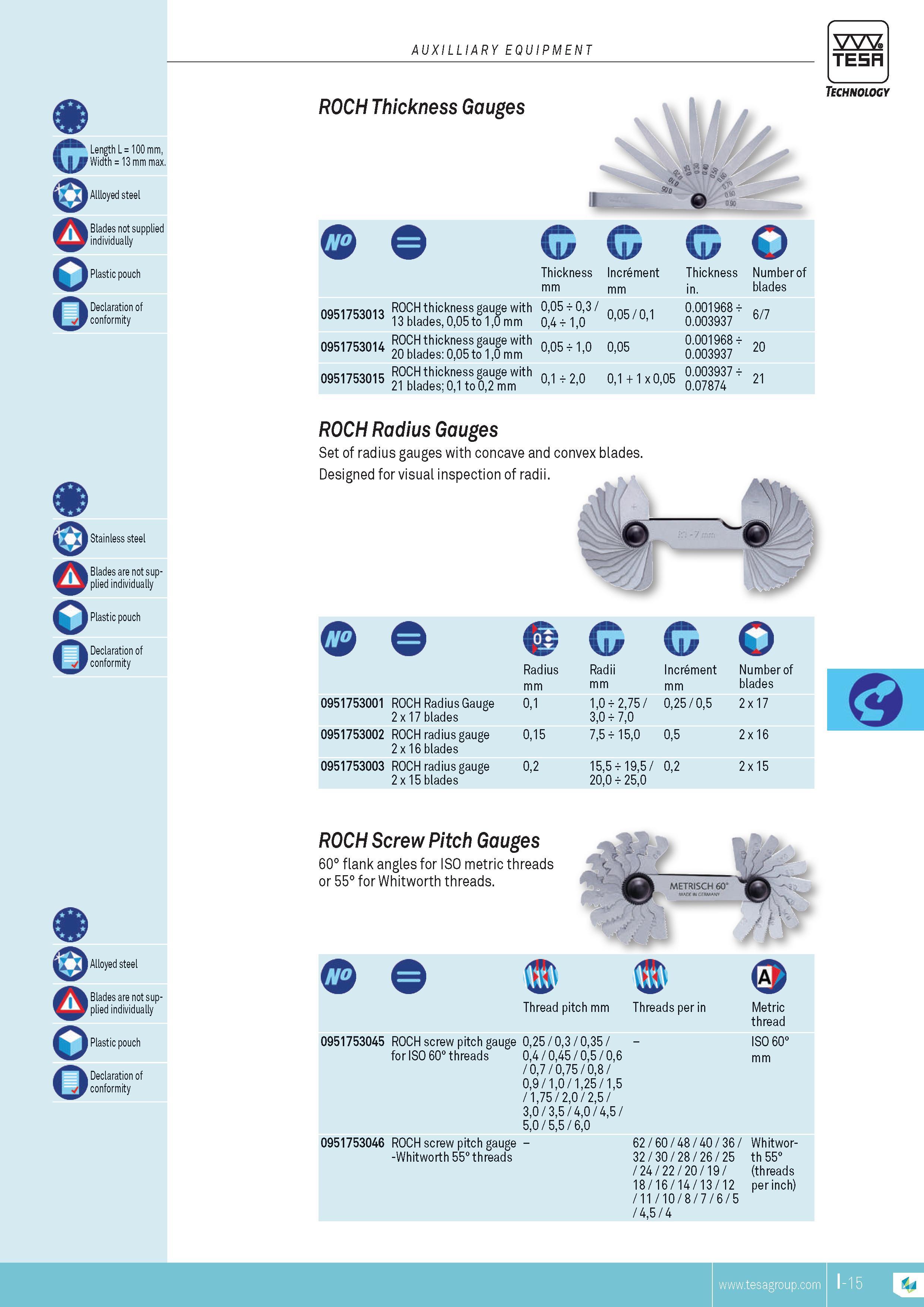

AUXILLIARY EQUIPMENT ROCH Thickness Gauges Length L 100 mm Width 13 mm max A oyed steel Blades not supplied individually Plastic pouch Declaration of

AUXILLIARY EQUIPMENT ROCH Thickness Gauges Length L 100 mm Width 13 mm max. A oyed steel Blades not supplied individually Plastic pouch Declaration of conformity 0951753013 ROCH thickness gauge with 13 blades 005 to 10 mm 0951753014 ROCH thickness gauge with 20 blades 005 to 10 mm 0951753015 ROCH thickness gauge with 21 blades; 01 to 02 mm G G G Thickness Increment mm Thickness Number of in. blades 0.001968 t 0.003937 0.001968 t 0.003937 0.003937 t 0.07874 6 7 20 TESA Technology Stainless steel Blades are not supplied individually ROCH Radius Gauges Set of radius gauges with concave and convex blades Designed for visual inspection of radii. Plastic pouch Declaration of conformity O 0951753001 ROCH Radius Gauge 2 x 17 blades 0951753002 ROCH radius gauge 2 x 16 blades 0951753003 ROCH radius gauge 2 x 15 blades Radius mm 01 015 02 G G Radii mm 10 30 75 275 7.0 15.0 Increment mm 025 05 05 155 t 195 02 200 t 250 Number of blades 2 x 17 2 x 16 2 x 15 Alloyed steel Blades are not supplied individually Plastic pouch Declaration of conformity ROCH Screw Pitch Gauges 60 flank angles for ISO metric threads or 55 for Whitworth threads. Thread pitch mm Threads per in 0951753045 ROCH screw pitch gauge 025 03 035 for ISO 60 threads 04 045 05 06 07 075 08 09 10 125 15 175 20 25 3.0 35 40 45 5.0 55 60 0951753046 ROCH screw pitch gauge -Whitworth 55 threads Metric thread ISO 60 mm 62 60 48 40 36 Whitwor- 32 30 28 26 25 th 55 24 22 20 19 (threads 18 16 14 13 12 per inch) 11 10 8 7 6 5 45 4 TESA I -15
