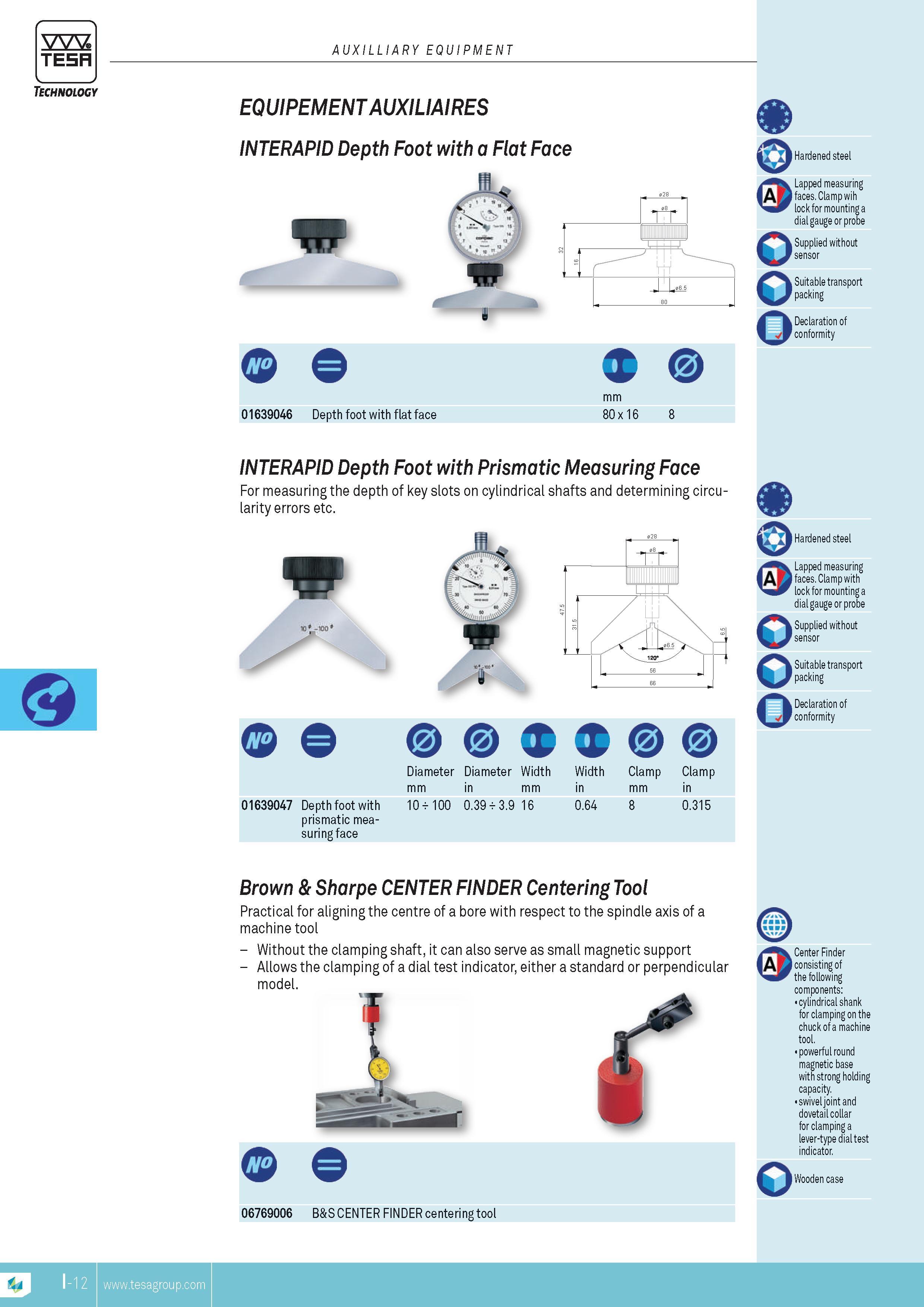

EQUIPEMENT AUxILIAIRES INTERAPID Depth Foot with a Flat Face 01639046 Depth foot with flat face m mm 80 x 16 8 Hardened steel 0 Lapped measuring faces

EQUIPEMENT AUxILIAIRES INTERAPID Depth Foot with a Flat Face 01639046 Depth foot with flat face m mm 80 x 16 8 Hardened steel 0 Lapped measuring faces. Clamp wih lock for mounting a dial gauge or probe Supplied without sensor Suitable transport packing Declaration of conformity INTERAPID Depth Foot with Prismatic Measuring Face For measuring the depth of key slots on cylindrical shafts and determining circularity errors etc. 01639047 Depth foot with prismatic measuring face Diameter Diameter Width Width Clamp Clamp mm in mm in mm in 10 t 100 0.39 t 3.9 16 0.64 8 0.315 Hardened steel Lapped measuring IA tj faces. Clamp with lock for mounting a dial gauge or probe Supplied without sensor Suitable transport packing Declaration of conformity Brown & Sharpe cENTER FINDER centering Tool Practical for aligning the centre of a bore with respect to the spindle axis of a machine tool Without the clamping shaft it can also serve as small magnetic support Allows the clamping of a dial test indicator either a standard or perpendicular model. 0 Center Finder consisting of the following components cylindrical shank for clamping on the chuck of a machine tool. powerful round magnetic base with strong holding capacity. swivel joint and dovetail collar for clamping a lever-type dial test indicator. Wooden case 06769006 B&S CENTER FINDER centering tool I-12 TESA TESA Technology auxilliary equipment
