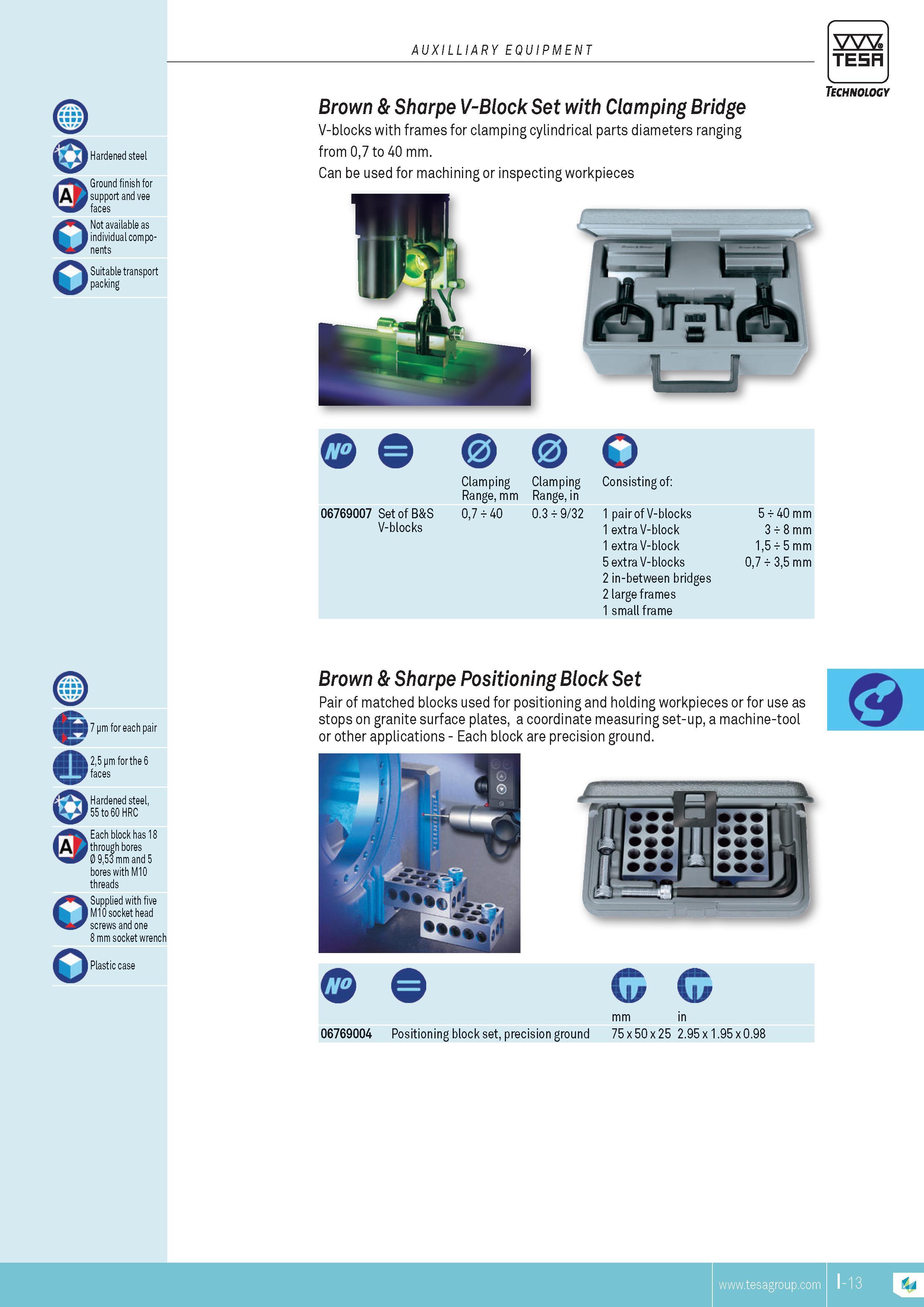

Hardened steel Ground finish for support and vee faces Not available as individual components Suitable transport packing AuxiLLIARY EQuipMENT TESA Technology Brown & Sharpe v-Block Set with clamping Bridge V-blocks with frames for clamping cylindrical parts diameters ranging from 07 to 40 mm. Can be used for machining or inspecting workpieces 06769007 Set of B&S V-blocks Clamping Range mm 07 t 40 Clamping Range in 0.3 t 9 32 Consisting of 1 pair of V-blocks 1 extra V-block 1 extra V-block 5 extra V-blocks 2 in-between bridges 2 large frames 1 small frame 5 t 40 mm 3 t 8 mm 15 t 5 mm 07 t 35 mm 7 pm for each pair 25 pm for the 6 faces Hardened steel 55 to 60 HRC Each block has 18 through bores 0 953 mm and 5 bores with M10 threads Supplied with five M10 socket head screws and one 8 mm socket wrench Plastic case Brown & Sharpe Positioning Block Set Pair of matched blocks used for positioning and holding workpieces or for use as stops on granite surface plates a coordinate measuring set-up a machine-tool or other applications Each block are precision ground. mm in 06769004 Positioning block set precision ground 75 x 50 x 25 2.95 x 1.95 x 0.98
