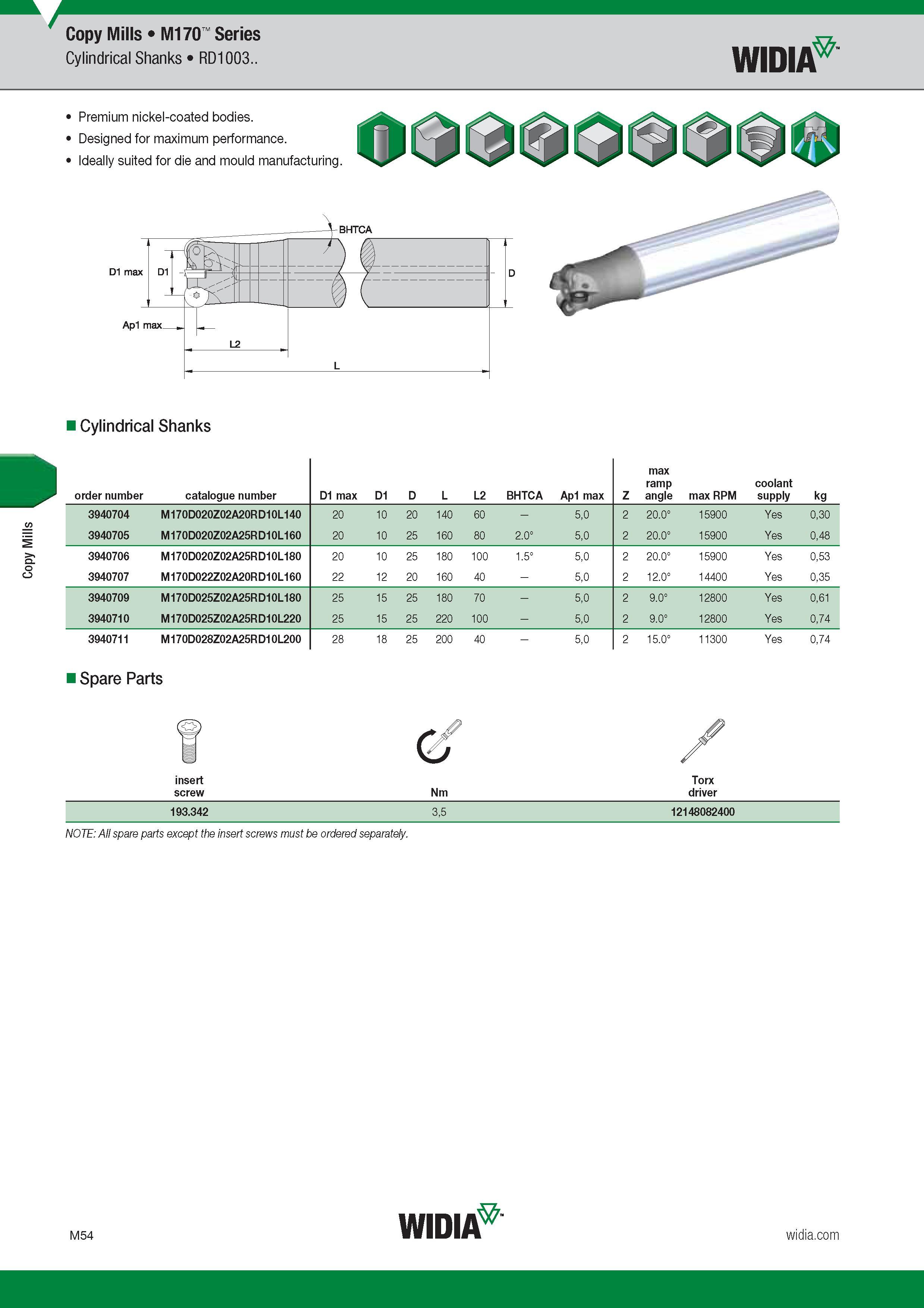

Copy Mills Widia M170 Series Cylindrical Shanks RD1003.. Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mould manufacturing. D1 max Ap1 max Cylindrical Shanks order number Catalogue number Обозначение инструмента по каталогу D1 max D1 D L L2 BHTCA Ap1 max Z max ramp angle max RPM coolant supply kg 3940704 M170D020Z02A20RD10L140 20 10 20 140 60 - 5,0 2 20.0° 15900 Yes 0,30 3940705 M170D020Z02A25RD10L160 20 10 25 160 80 2.0° 5,0 2 20.0° 15900 Yes 0,48 3940706 M170D020Z02A25RD10L180 20 10 25 180 100 1.5° 5,0 2 20.0° 15900 Yes 0,53 3940707 M170D022Z02A20RD10L160 22 12 20 160 40 - 5,0 2 12.0° 14400 Yes 0,35 3940709 M170D025Z02A25RD10L180 25 15 25 180 70 - 5,0 2 9.0° 12800 Yes 0,61 3940710 M170D025Z02A25RD10L220 25 15 25 220 100 - 5,0 2 9.0° 12800 Yes 0,74 3940711 M170D028Z02A25RD10L200 28 18 25 200 40 - 5,0 2 15.0° 11300 Yes 0,74 Spare Parts insert screw G Nm Torx driver 193.342 3,5 12148082400 NOTE All spare parts except the insert screws must be ordered separately. M54 Widia Copy Mills
