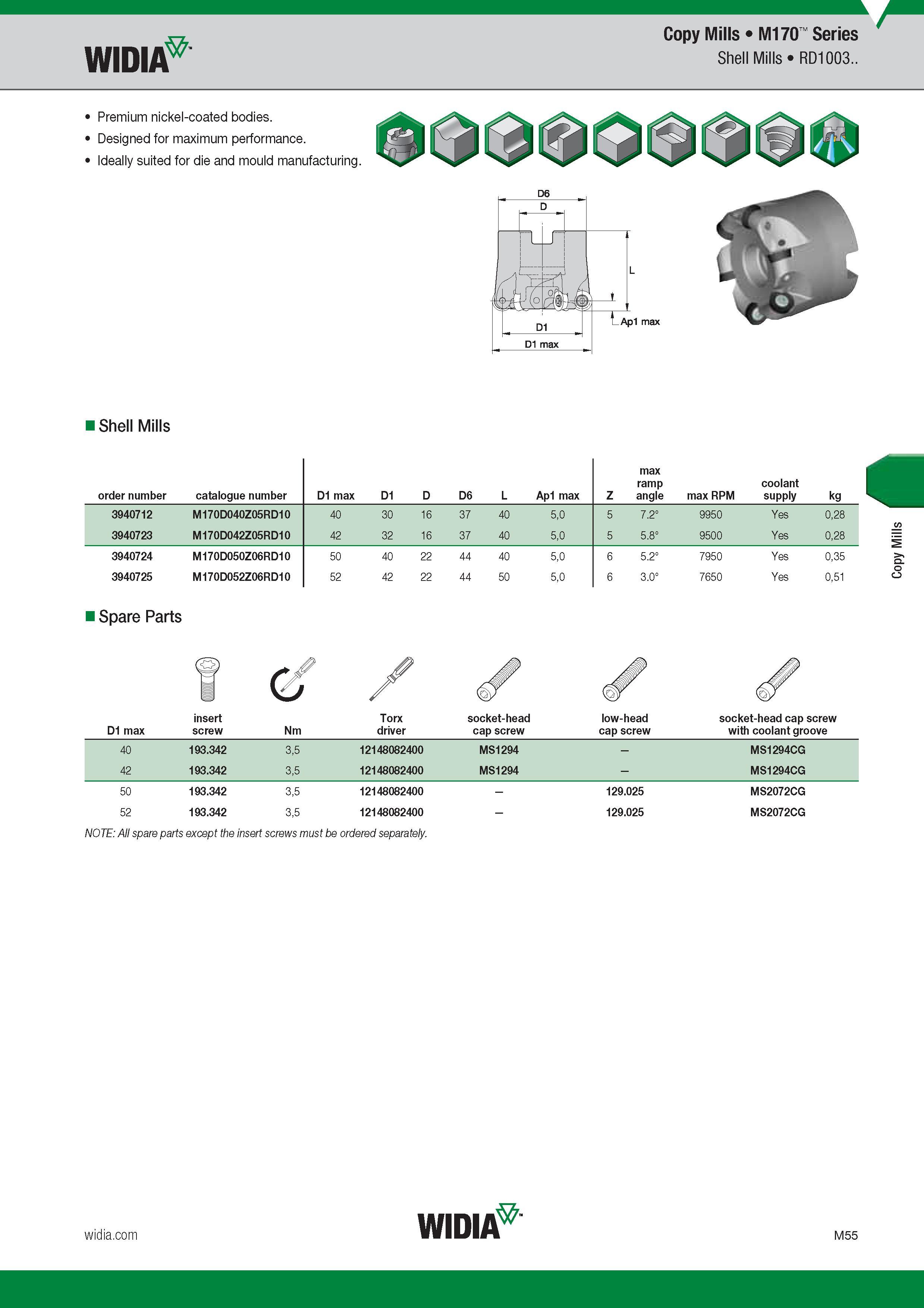

Copy Mills Widia M170 Series Shell Mills RD1003 Premium nickel-coated bodies Designed for maximum performance Ideally suited for die and mould manu

Copy Mills Widia M170 Series Shell Mills RD1003.. Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mould manufacturing. Shell Mills order number Catalogue number Обозначение инструмента по каталогу D1 max D1 D D6 L Ap1 max Z max ramp angle max RPM coolant supply kg 3940712 M170D040Z05RD10 40 30 16 37 40 5,0 5 7.2° 9950 Yes 0,28 3940723 M170D042Z05RD10 42 32 16 37 40 5,0 5 5.8° 9500 Yes 0,28 3940724 M170D050Z06RD10 50 40 22 44 40 5,0 6 5.2° 7950 Yes 0,35 3940725 M170D052Z06RD10 52 42 22 44 50 5,0 6 3.0° 7650 Yes 0,51 Spare Parts D1 max insert screw G Nm Torx driver socket-head cap screw low-head cap screw socket-head cap screw with coolant groove 40 193.342 3,5 12148082400 MS1294 - MS1294CG 42 193.342 3,5 12148082400 MS1294 - MS1294CG 50 193.342 3,5 12148082400 - 129.025 MS2072CG 52 193.342 3,5 12148082400 - 129.025 MS2072CG NOTE All spare parts except the insert screws must be ordered separately. Widia M55 Copy Mills
