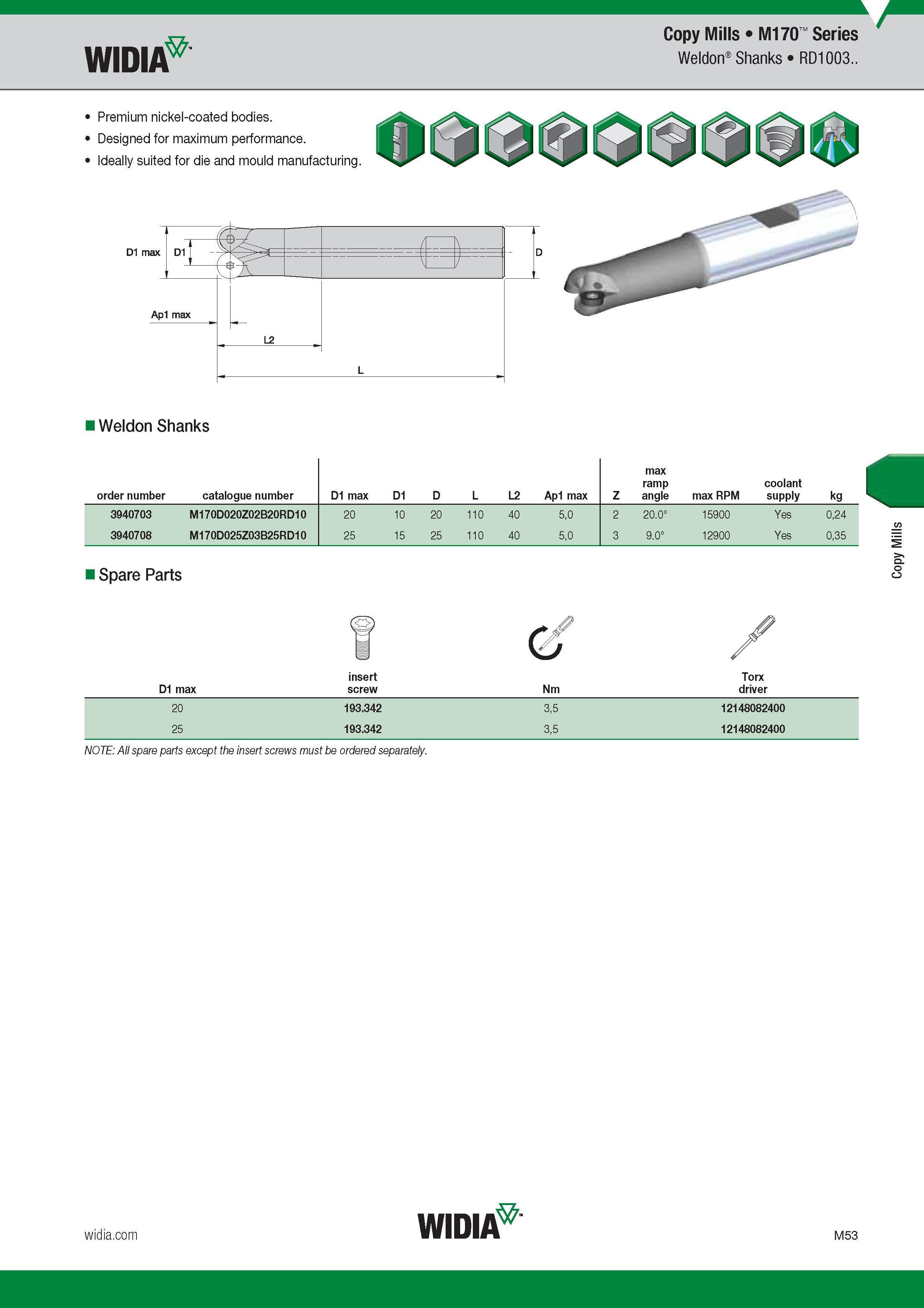

Copy Mills Widia M170 Series Weldon Shanks RD1003 Premium nickel-coated bodies Designed for maximum performance Ideally suited for die and mould ma

Copy Mills Widia M170 Series Weldon Shanks RD1003.. Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mould manufacturing D1 max Weldon Shanks order number Catalogue number Обозначение инструмента по каталогу D1 max D1 D L L2 Ap1 max Z max ramp angle max RPM coolant supply kg 3940703 M170D020Z02B20RD10 20 10 20 110 40 5,0 2 20.0° 15900 Yes 0,24 3940708 M170D025Z03B25RD10 25 15 25 110 40 5,0 3 9.0° 12900 Yes 0,35 Spare Parts D1 max insert screw G Nm Torx driver 20 193.342 3,5 12148082400 25 193.342 3,5 12148082400 NOTE All spare parts except the insert screws must be ordered separately. Widia M53 Copy Mills
