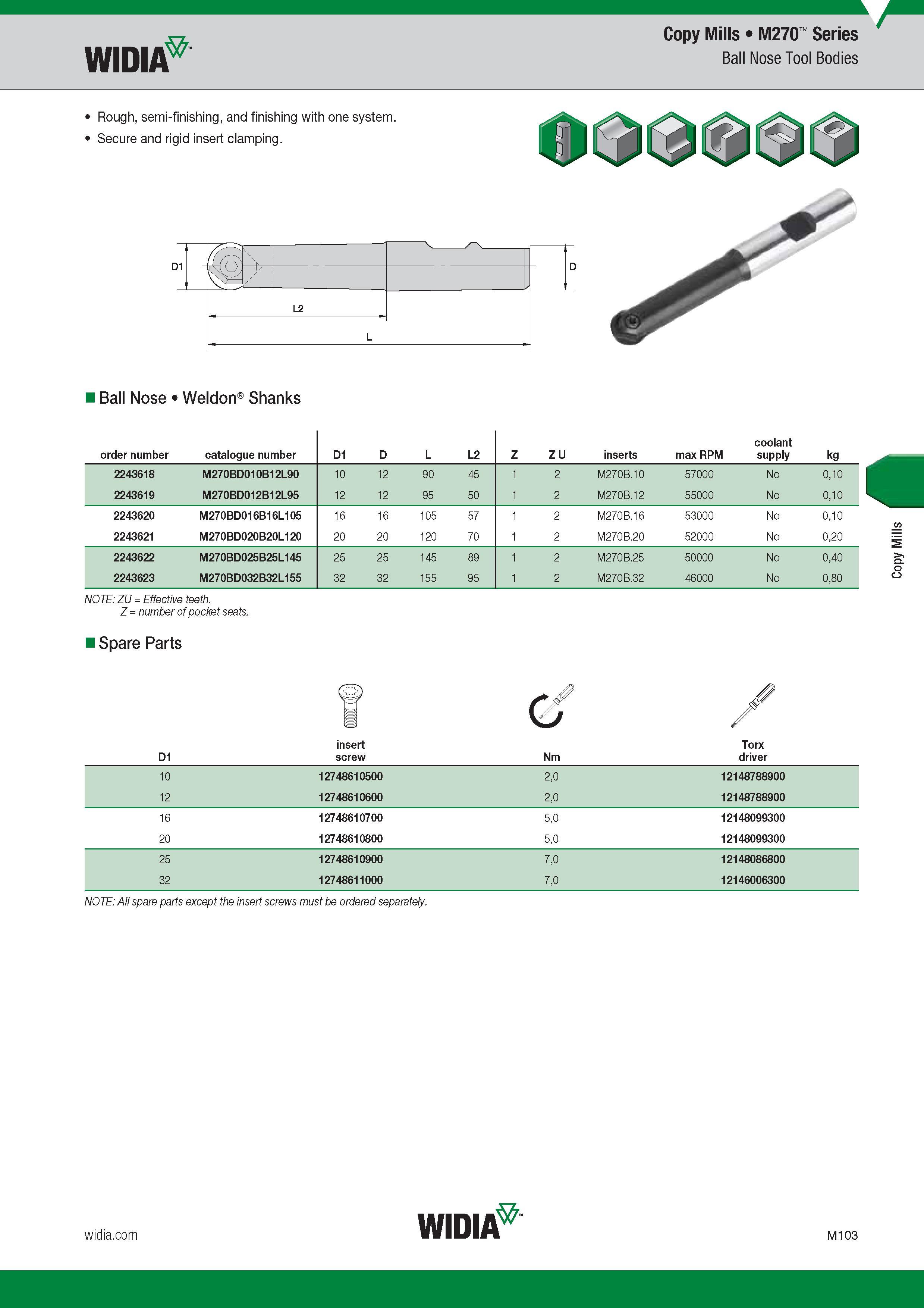

Copy Mills Widia M270 Series Ball Nose Tool Bodies Rough, semi-finishing, and finishing with one system Secure and rigid insert clamping Ball Nose

Copy Mills Widia M270 Series Ball Nose Tool Bodies Rough, semi-finishing, and finishing with one system. Secure and rigid insert clamping. Ball Nose Weldon Shanks order number Catalogue number Обозначение инструмента по каталогу D1 D L L2 Z Z u inserts max RPM coolant supply kg 2243618 M270BD010B12L90 10 12 90 45 1 2 M270B.10 57000 No 0,10 2243619 M270BD012B12L95 12 12 95 50 1 2 M270B.12 55000 No 0,10 2243620 M270BD016B16L105 16 16 105 57 1 2 M270B.16 53000 No 0,10 2243621 M270BD020B20L120 20 20 120 70 1 2 M270B.20 52000 No 0,20 2243622 M270BD025B25L145 25 25 145 89 1 2 M270B.25 50000 No 0,40 2243623 M270BD032B32L155 32 32 155 95 1 2 M270B.32 46000 No 0,80 NOTE ZU Effective teeth. Z number of pocket seats. Spare Parts c D1 insert screw Nm Torx driver 10 12748610500 2,0 12148788900 12 12748610600 2,0 12148788900 16 12748610700 5,0 12148099300 20 12748610800 5,0 12148099300 25 12748610900 7,0 12148086800 32 12748611000 7,0 12146006300 NOTE All spare parts except the insert screws must be ordered separately. Widia M103 Copy Mills
