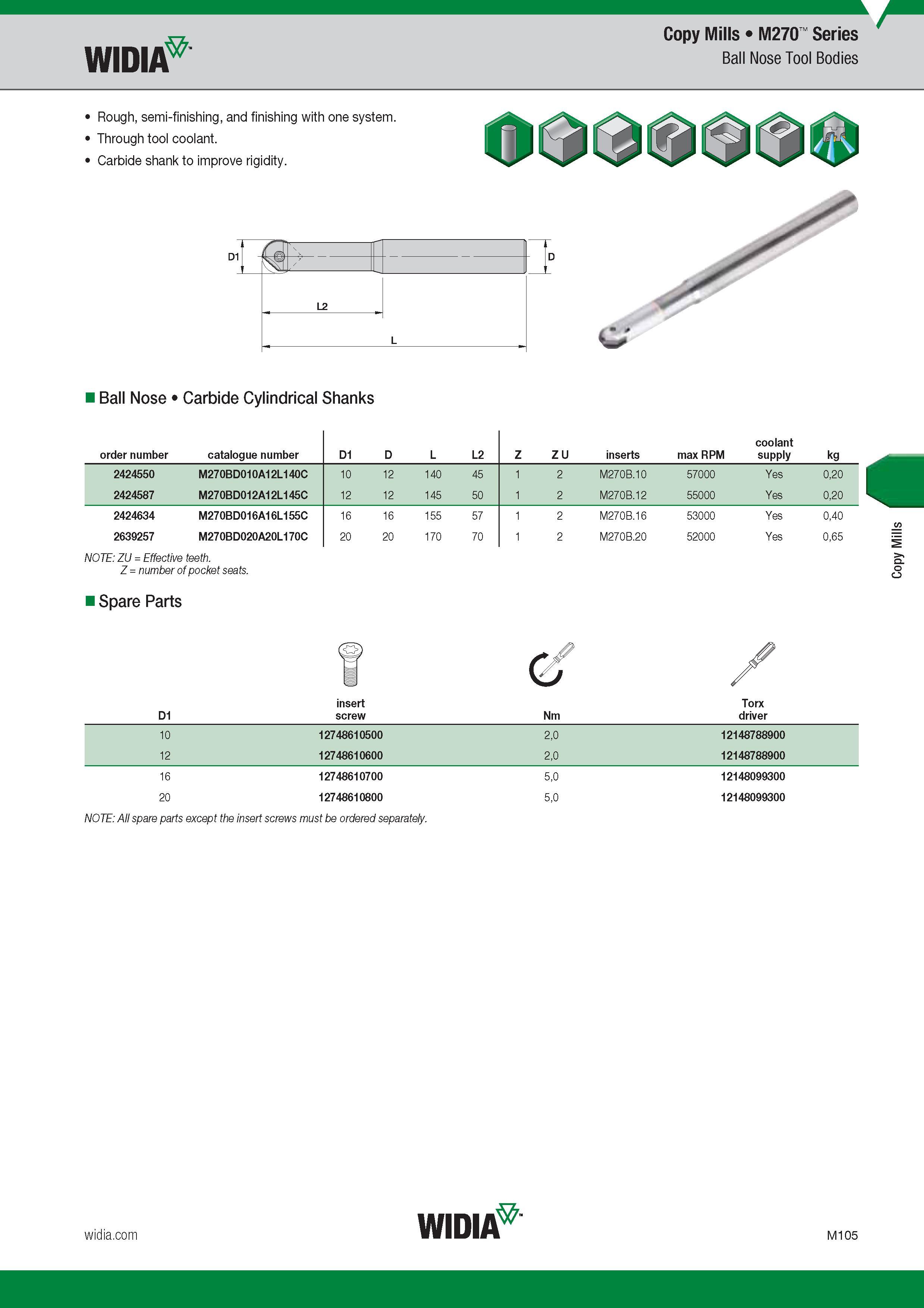

Copy Mills Widia M270 Series Ball Nose Tool Bodies Rough, semi-finishing, and finishing with one system. Through tool coolant. Carbide shank to improve rigidity. Ball Nose Carbide Cylindrical Shanks order number Catalogue number Обозначение инструмента по каталогу D1 D L L2 Z Z u inserts max RPM coolant supply kg 2424550 M270BD010A12L140C 10 12 140 45 1 2 M270B.10 57000 Yes 0,20 2424587 M270BD012A12L145C 12 12 145 50 1 2 M270B.12 55000 Yes 0,20 2424634 M270BD016A16L155C 16 16 155 57 1 2 M270B.16 53000 Yes 0,40 2639257 M270BD020A20L170C 20 20 170 70 1 2 M270B.20 52000 Yes 0,65 NOTE ZU Effective teeth. Z number of pocket seats. Spare Parts G D1 insert screw Nm Torx driver 10 12748610500 2,0 12148788900 12 12748610600 2,0 12148788900 16 12748610700 5,0 12148099300 20 12748610800 5,0 12148099300 NOTE All spare parts except the insert screws must be ordered separately. Widia M105 Copy Mills
