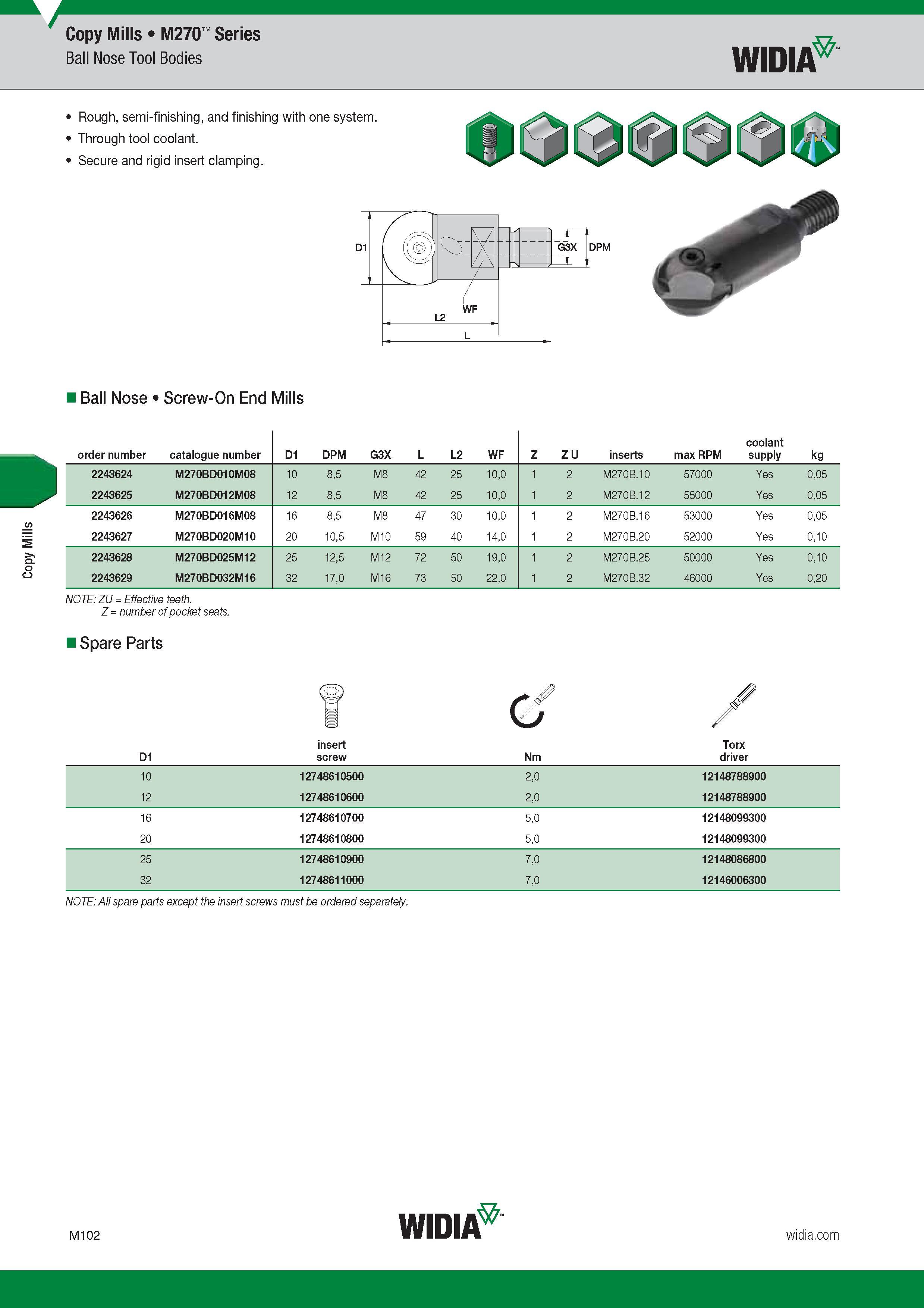

Copy Mills Widia M270 Series Ball Nose Tool Bodies Rough, semi-finishing, and finishing with one system Through tool coolant Secure and rigid inser

Copy Mills Widia M270 Series Ball Nose Tool Bodies Rough, semi-finishing, and finishing with one system. Through tool coolant. Secure and rigid insert clamping. Ball Nose Screw-On End Mills order number Catalogue number Обозначение инструмента по каталогу D1 DPM G3X L L2 WF Z Z u inserts max RPM coolant supply kg 2243624 M270BD010M08 10 8,5 M8 42 25 10,0 1 2 M270B.10 57000 Yes 0,05 2243625 M270BD012M08 12 8,5 M8 42 25 10,0 1 2 M270B.12 55000 Yes 0,05 2243626 M270BD016M08 16 8,5 M8 47 30 10,0 1 2 M270B.16 53000 Yes 0,05 2243627 M270BD020M10 20 10,5 M10 59 40 14,0 1 2 M270B.20 52000 Yes 0,10 2243628 M270BD025M12 25 12,5 M12 72 50 19,0 1 2 M270B.25 50000 Yes 0,10 2243629 M270BD032M16 32 17,0 M16 73 50 22,0 1 2 M270B.32 46000 Yes 0,20 NOTE ZU Effective teeth. Z number of pocket seats. Spare Parts D1 insert screw Nm Torx driver 10 12748610500 2,0 12148788900 12 12748610600 2,0 12148788900 16 12748610700 5,0 12148099300 20 12748610800 5,0 12148099300 25 12748610900 7,0 12148086800 32 12748611000 7,0 12146006300 NOTE All spare parts except the insert screws must be ordered separately. Copy Mills
