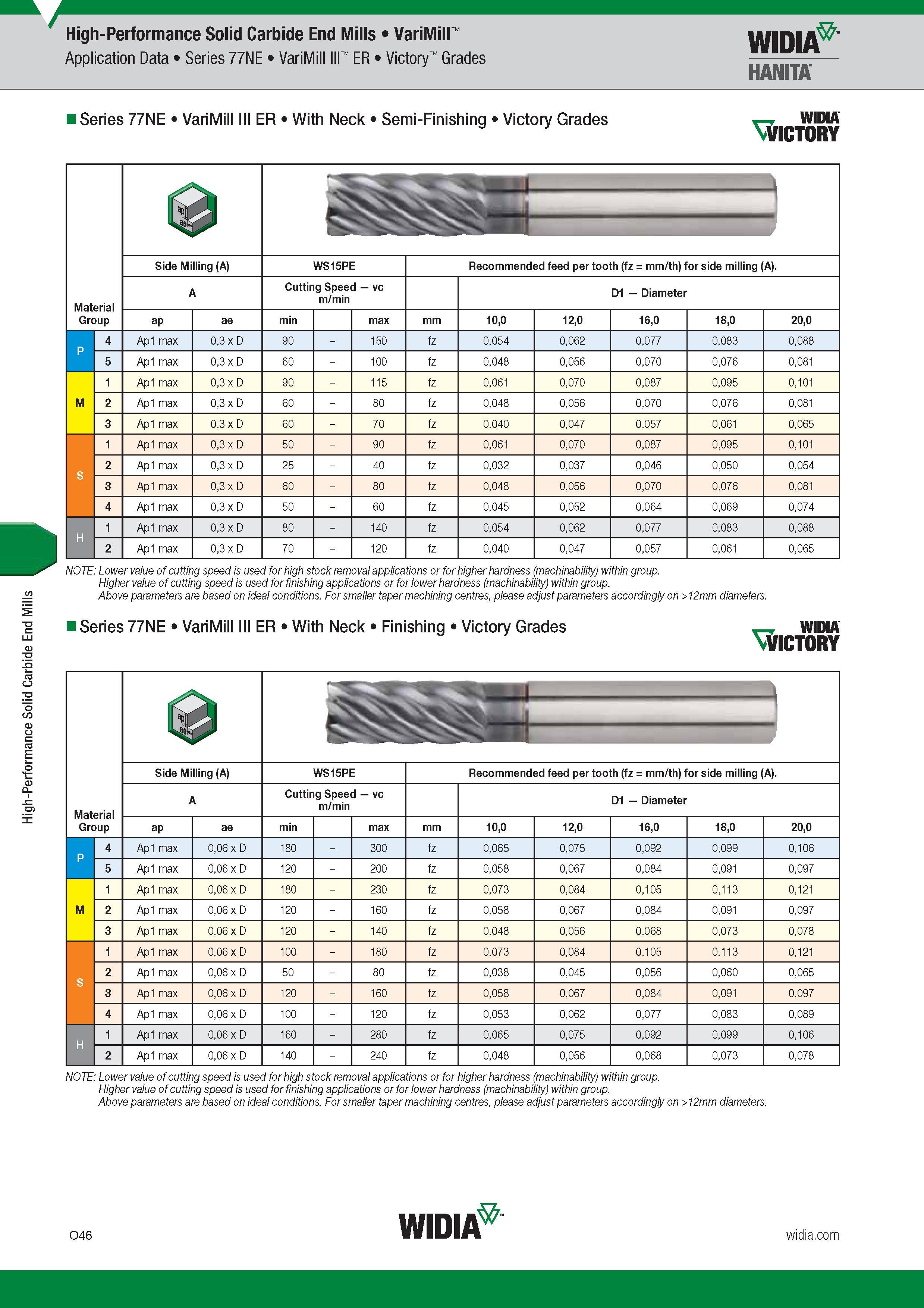

Solid Carbide End Mills VariMill Widia Application Data Series 77NE VariMill III ER Victory Grades Hanita Series 77NE VariMill III ER With Neck Semi-Finishing Victory Grades Widia VICTORY Material Group Side Milling (A) WS15PE Recommended feed per tooth (fz mm/th) for side milling (A). A Cutting Speed vc m/min D1 Diameter ap ae min max mm 10,0 12,0 16,0 18,0 20,0 p 4 Ap1 max 0,3 x D 90 - 150 fz 0,054 0,062 0,077 0,083 0,088 5 Ap1 max 0,3 x D 60 - 100 fz 0,048 0,056 0,070 0,076 0,081 M 1 Ap1 max 0,3 x D 90 - 115 fz 0,061 0,070 0,087 0,095 0,101 2 Ap1 max 0,3 x D 60 - 80 fz 0,048 0,056 0,070 0,076 0,081 3 Ap1 max 0,3 x D 60 - 70 fz 0,040 0,047 0,057 0,061 0,065 S 1 Ap1 max 0,3 x D 50 - 90 fz 0,061 0,070 0,087 0,095 0,101 2 Ap1 max 0,3 x D 25 - 40 fz 0,032 0,037 0,046 0,050 0,054 3 Ap1 max 0,3 x D 60 - 80 fz 0,048 0,056 0,070 0,076 0,081 4 Ap1 max 0,3 x D 50 - 60 fz 0,045 0,052 0,064 0,069 0,074 H 1 Ap1 max 0,3 x D 80 - 140 fz 0,054 0,062 0,077 0,083 0,088 2 Ap1 max 0,3 x D 70 - 120 fz 0,040 0,047 0,057 0,061 0,065 NOTE Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on >12mm diameters. Series 77NE VariMill III ER With Neck Finishing Victory Grades Widia Victory Side Milling (A) WS15PE Recommended feed per tooth (fz mm/th) for side milling (A). Material Group 4 5 Cutting Speed vc m/min D1 Diameter ap 10,0 12,0 16,0 18,0 20,0 Ap1 max ) x D 180 300 0,065 0,075 0,092 0,099 0,106 Ap1 max x D 120 200 0,058 0,067 0,084 0,091 0,097 Ap1 max x D 180 230 0,073 0,084 0,105 0,113 0,121 Ap1 max x D 120 160 0,058 0,067 0,084 0,091 0,097 Ap1 max x D 120 140 0,048 0,056 0,068 0,073 0,078 Ap1 max x D 100 180 0,073 0,084 0,105 0,113 0,121 Ap1 max x D 50 80 0,038 0,045 0,056 0,060 0,065 Ap1 max x D 120 160 0,058 0,067 0,084 0,091 0,097 Ap1 max x D 100 120 0,053 0,062 0,077 0,083 0,089 Ap1 max x D 160 280 0,065 0,075 0,092 0,099 0,106 Ap1 max x D 140 240 0,048 0,056 0,068 0,073 0,078 A ae mm fz M fz 1 fz 2 fz 3 fz H fz NOTE Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on >12mm diameters. High-Performance Solid Carbide End Mills High-Performance
