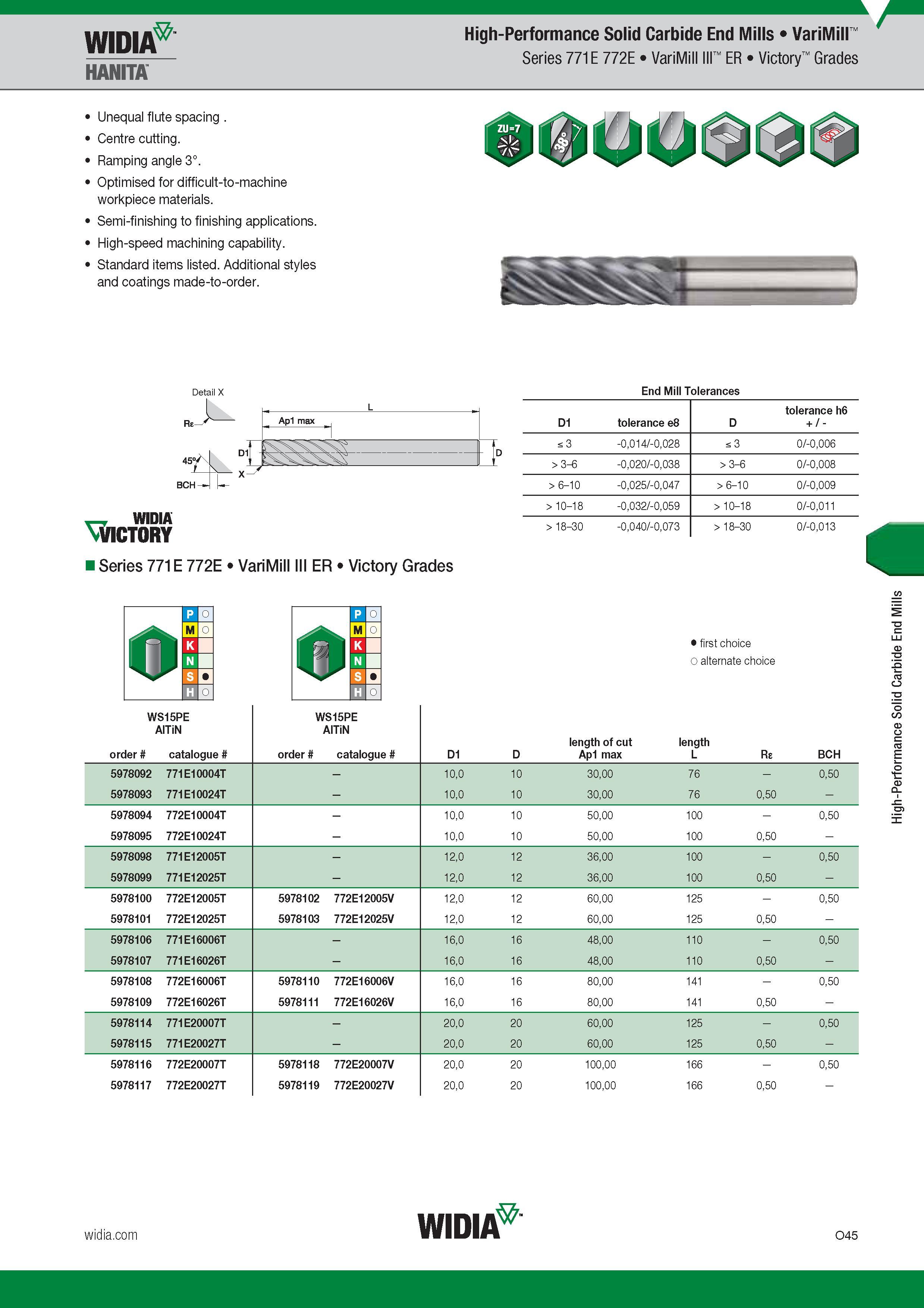

Solid Carbide End Mills Widia Hanita 771E 772E VariMill III ER Victory Grades Unequal flute spacing Centre cutting Ramping angle 3° Optimised for d

Solid Carbide End Mills Widia Hanita 771E 772E VariMill III ER Victory Grades Unequal flute spacing Centre cutting. Ramping angle 3°. Optimised for difficult-to-machine workpiece materials. Semi-finishing to finishing applications. High-speed machining capability. Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances Widia Victory Series 771E 772E VariMill III ER Victory Grades D1 tolerance e8 D tolerance h6 + / - s 3 -0,014/-0,028 s 3 0/-0,006 3-6 -0,020/-0,038 3-6 0/-0,008 6-10 -0,025/-0,047 6-10 0/-0,009 10-18 -0,032/-0,059 10-18 0/-0,011 >18-30 -0,040/-0,073 >18-30 0/-0,013 0 MO K N S H 0 First and alternate choice Основной и альтернативный выбор WS15PE AlTiN order catalogue WS15PE AlTiN order catalogue D1 D length of cut Ap1 max length L Re BCH 5978092 771E10004T - 10,0 10 30,00 76 - 0,50 5978093 771E10024T - 10,0 10 30,00 76 0,50 - 5978094 772E10004T - 10,0 10 50,00 100 - 0,50 5978095 772E10024T - 10,0 10 50,00 100 0,50 - 5978098 771E12005T - 12,0 12 36,00 100 - 0,50 5978099 771E12025T - 12,0 12 36,00 100 0,50 - 5978100 772E12005T 5978102 772E12005V 12,0 12 60,00 125 - 0,50 5978101 772E12025T 5978103 772E12025V 12,0 12 60,00 125 0,50 - 5978106 771E16006T - 16,0 16 48,00 110 - 0,50 5978107 771E16026T - 16,0 16 48,00 110 0,50 - 5978108 772E16006T 5978110 772E16006V 16,0 16 80,00 141 - 0,50 5978109 772E16026T 5978111 772E16026V 16,0 16 80,00 141 0,50 - 5978114 771E20007T - 20,0 20 60,00 125 - 0,50 5978115 771E20027T - 20,0 20 60,00 125 0,50 - 5978116 772E20007T 5978118 772E20007V 20,0 20 100,00 166 - 0,50 5978117 772E20027T 5978119 772E20027V 20,0 20 100,00 166 0,50 - Detail X High-Performance Solid Carbide End Mills High-Performance VariMill Series
